Description

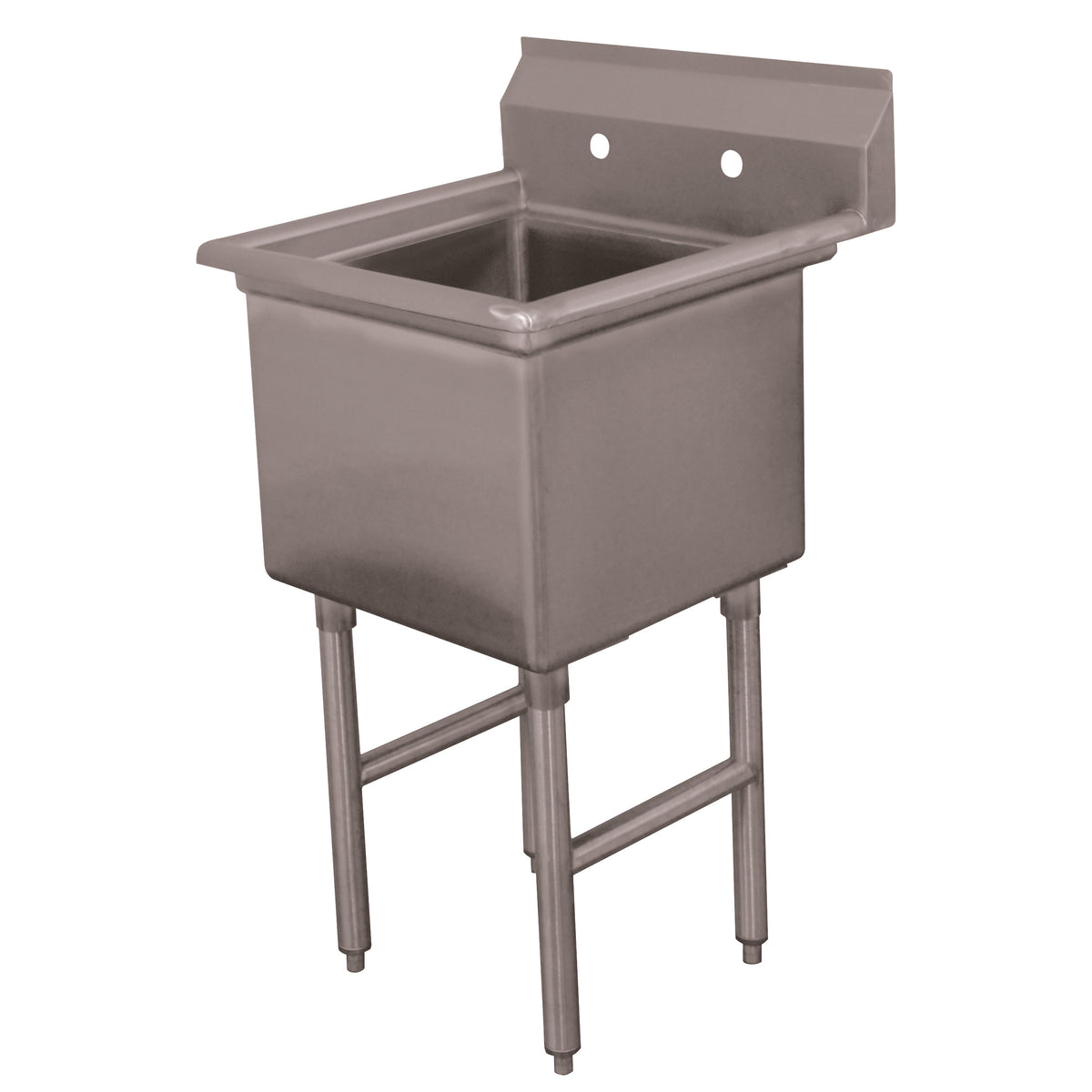

Advance Tabco FC-1-2424 — 1 Compartment Sinks
The Advance Tabco FC-1-2424 is offered in the configuration shown below. Overall dimensions: 29 in. W × 30 in. D × 43 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Fabricated Sink
- 1-compartment
- no drainboards
- bowl size 24" x 24" x 14" deep
- 16 gauge 304 stainless steel
- tile edge splash
- rolled edge
- 8" OC faucet holes
- stainless steel legs with adjustable side cross-bracing
- 1" adjustable stainless steel bullet feet
- overall 30" F/B x 29" L/R
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FC-1-2424 |
| Shipping Weight (Supplier Reference) | 68 lbs |
| Width | 29 in. |
| Depth | 30 in. |
| Height | 43 in. |
| Compartment (front - back) | 24" |
| Compartment Width (side - side) | 24" |
| Drainboards | without drainboards |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8-1/2" |
| Top Gauge | 16 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
