Description

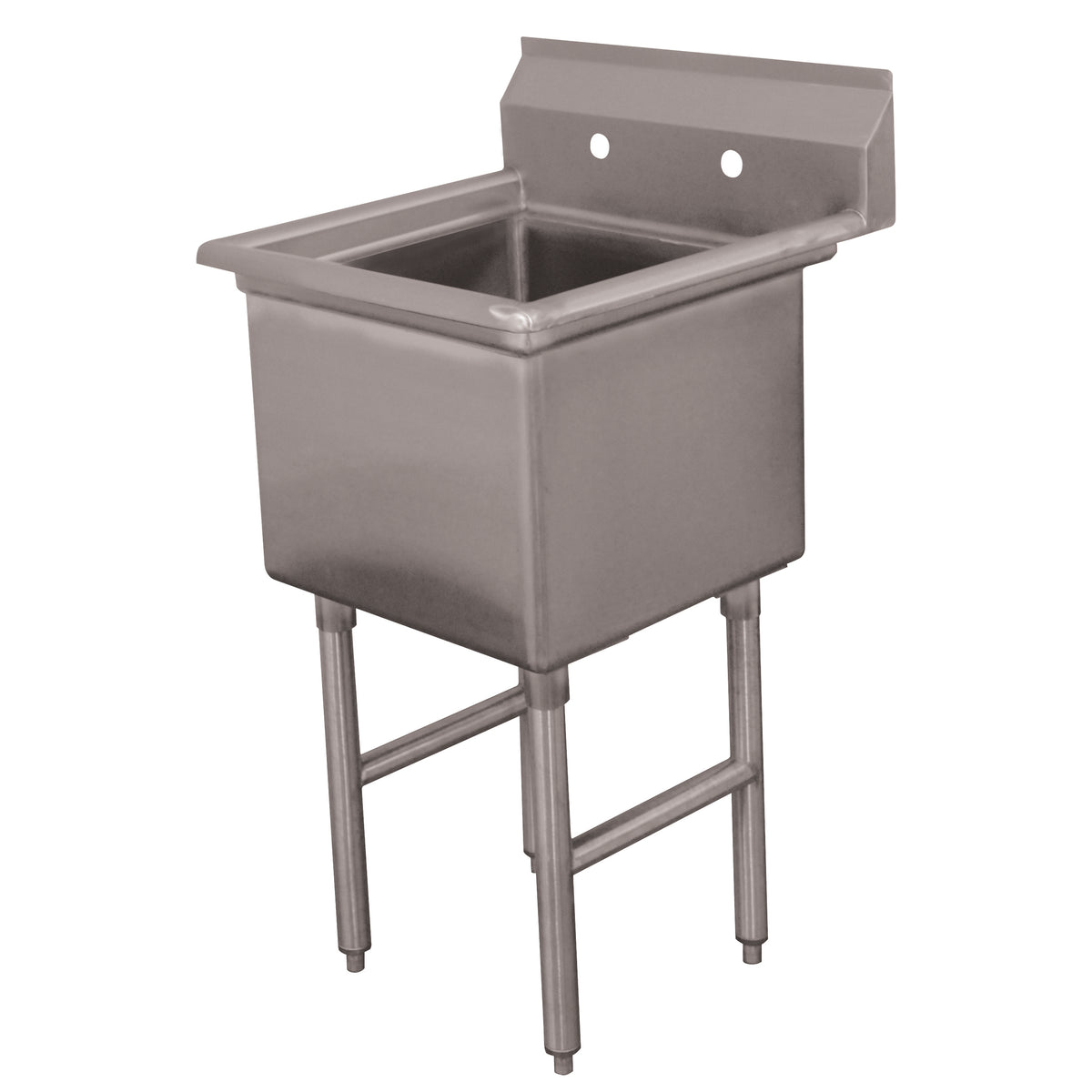

Advance Tabco FC-1-3624 — 1 Compartment Sinks
The Advance Tabco FC-1-3624 is offered in the configuration shown below. Overall dimensions: 41 in. W × 29.5 in. D × 43 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Backsplash has tile edge for ease of installation.
- Sink bowls are 3/4” coved corner and meet NSF requirements.
- Rolled Rim Edge for additional strength.
- Sink Bowls are 14” deep for greater capacity.
- Adjustable front-to-back cross-bracing.
- 1 5/8” diameter stainless steel legs with 1” adjustable stainless steel bullet feet.
- Entire unit is 16 gauge 304 stainless steel.
- Gussets - stainless steel.
- Supply is 1/2” IPS hot & cold.
- Waste drains are 1 1/2” IPS S/S basket type, located in center of sink bowl, and are included.
- All TIG welded.
- Welded areas blended to match adjacent surfaces and to a satin finish.
- Gussets welded to a die-formed reinforced plate.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FC-1-3624 |
| Shipping Weight (Supplier Reference) | 200 lbs |
| Width | 41 in. |
| Depth | 29.5 in. |
| Height | 43 in. |
| Compartment (front - back) | 24" |
| Compartment Width (side - side) | 36" |
| Drainboards | without drainboards |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8-1/2" |
| Top Gauge | 16 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
