Description

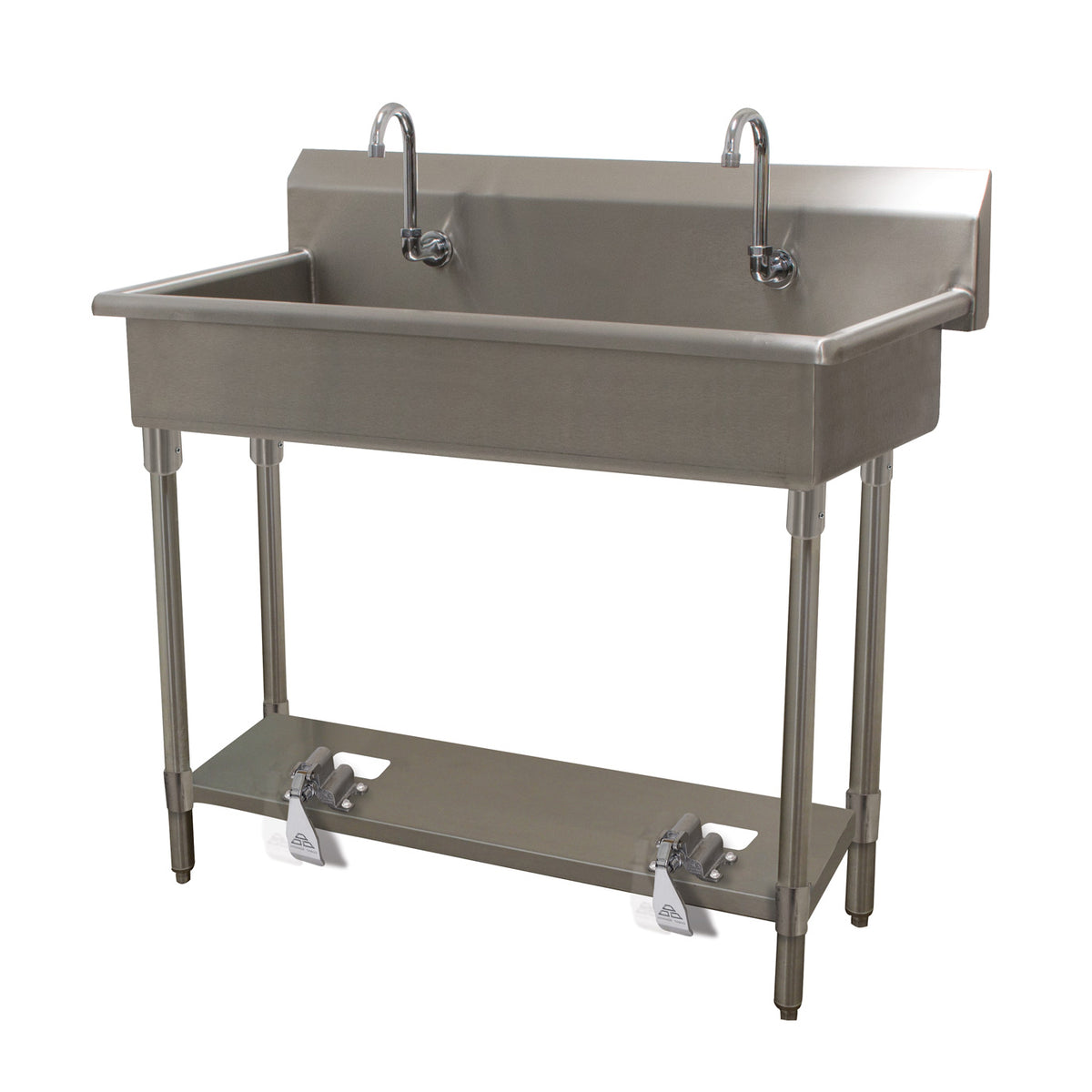

Advance Tabco FC-FM-48FV — Commercial Hand Wash Sinks
The Advance Tabco FC-FM-48FV is offered in the configuration shown below. Overall dimensions: 48 in. W × 19.5 in. D × 42.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Overall dimensions 48" W × 19‑½" D × 42‑½" H with an 8‑½" backsplash for splash protection.
- 16‑gauge 304 stainless steel construction, TIG‑welded for a satin finish and NSF compliance.
- Toe‑operated push valve with six K‑104 valves and six K‑121 gooseneck spouts for hygienic, touch‑free use.
- Stainless steel tubular legs, flanged feet, and cross‑bracing provide sturdy, freestanding support.
- 3‑½" rear basket drain and two single‑faucet holes per station simplify plumbing and maintenance.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FC-FM-48FV |
| Shipping Weight (Supplier Reference) | 97 lbs |
| Width | 48 in. |
| Depth | 19.5 in. |
| Height | 42.5 in. |
| Style | freestanding |
| Bowl Width (left to right) | 20" & up |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 8" deep |
| Faucet | faucet included |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet, Installation & Operation. Open the product documents section to view or download the manufacturer PDFs.
