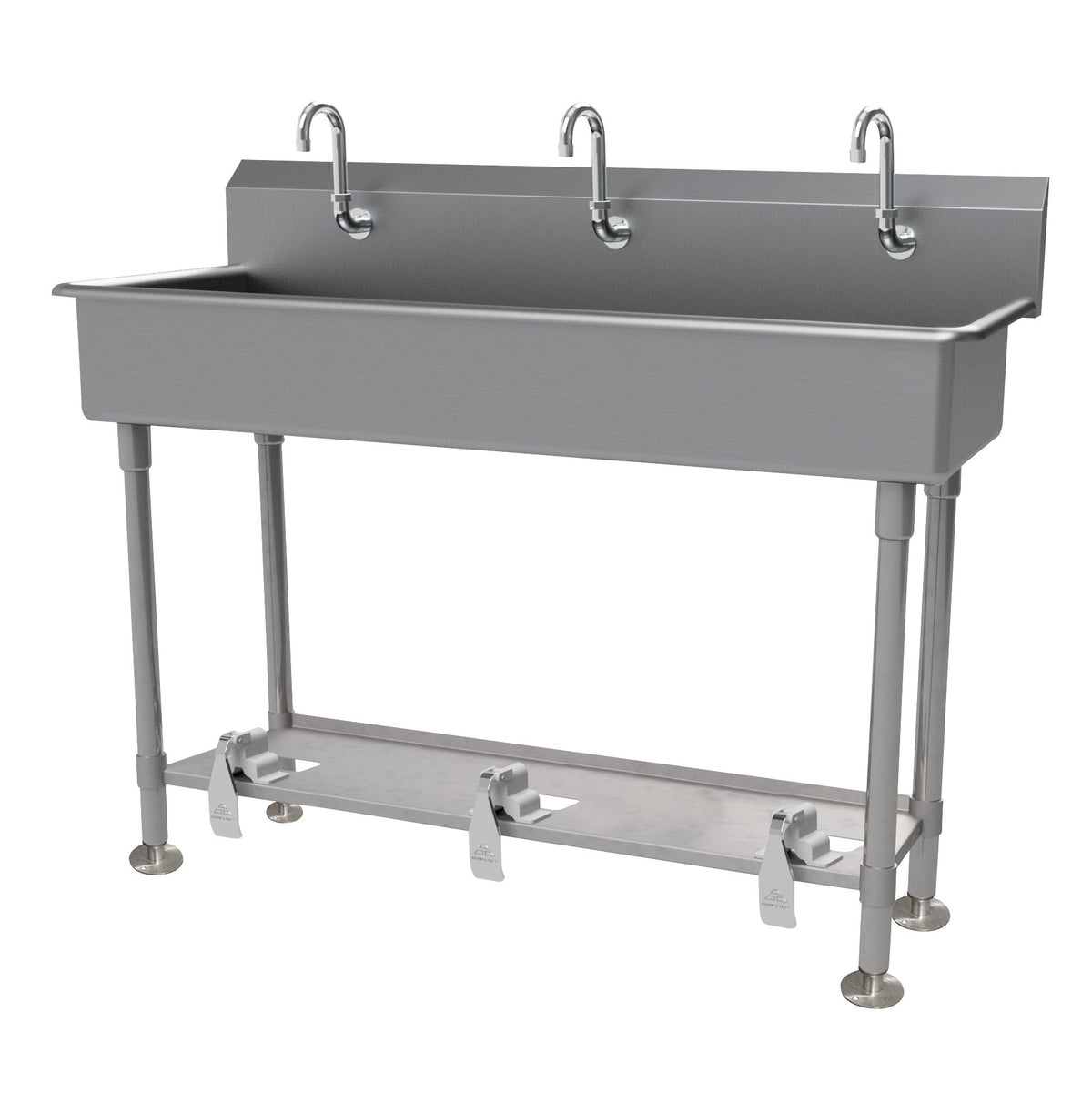

Advance Tabco FC-FM-72FV — Commercial Hand Wash Sinks
The Advance Tabco FC-FM-72FV is offered in the configuration shown below. Overall dimensions: 72 in. W × 19.5 in. D × 42.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Overall dimensions 72" W x 19-1/2" D x 42-1/2" H with 8-1/2" high backsplash for splash protection.
- Stainless‑steel 16‑gauge 304 construction, TIG‑welded and NSF certified for food‑service safety.
- Toe‑operated push valve with six K‑104 valves and six K‑121 gooseneck spouts for hygienic, touch‑free use.
- Includes stainless‑steel tubular legs, flanged feet, and pedal bracket support for sturdy, freestanding installation.
- Rear basket drain 3-1/2" K‑6 size and three single‑faucet holes punched for flexible faucet placement.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FC-FM-72FV |
| Shipping Weight (Supplier Reference) | 110 lbs |
| Width | 72 in. |
| Depth | 19.5 in. |
| Height | 42.5 in. |
| Style | freestanding |
| Bowl Width (left to right) | 20" & up |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 8" deep |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

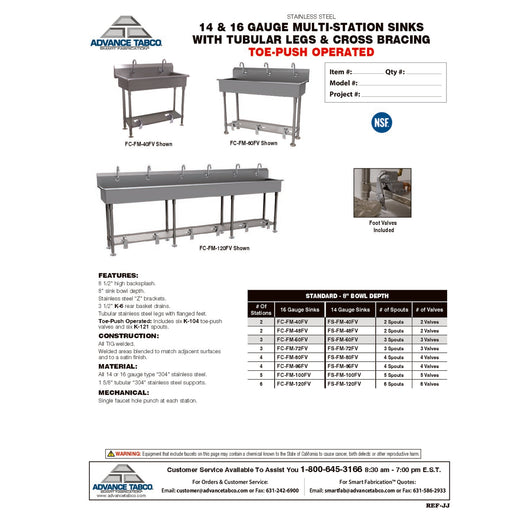

Available documents: Spec Sheet, Installation & Operation. Open the product documents section to view or download the manufacturer PDFs.
