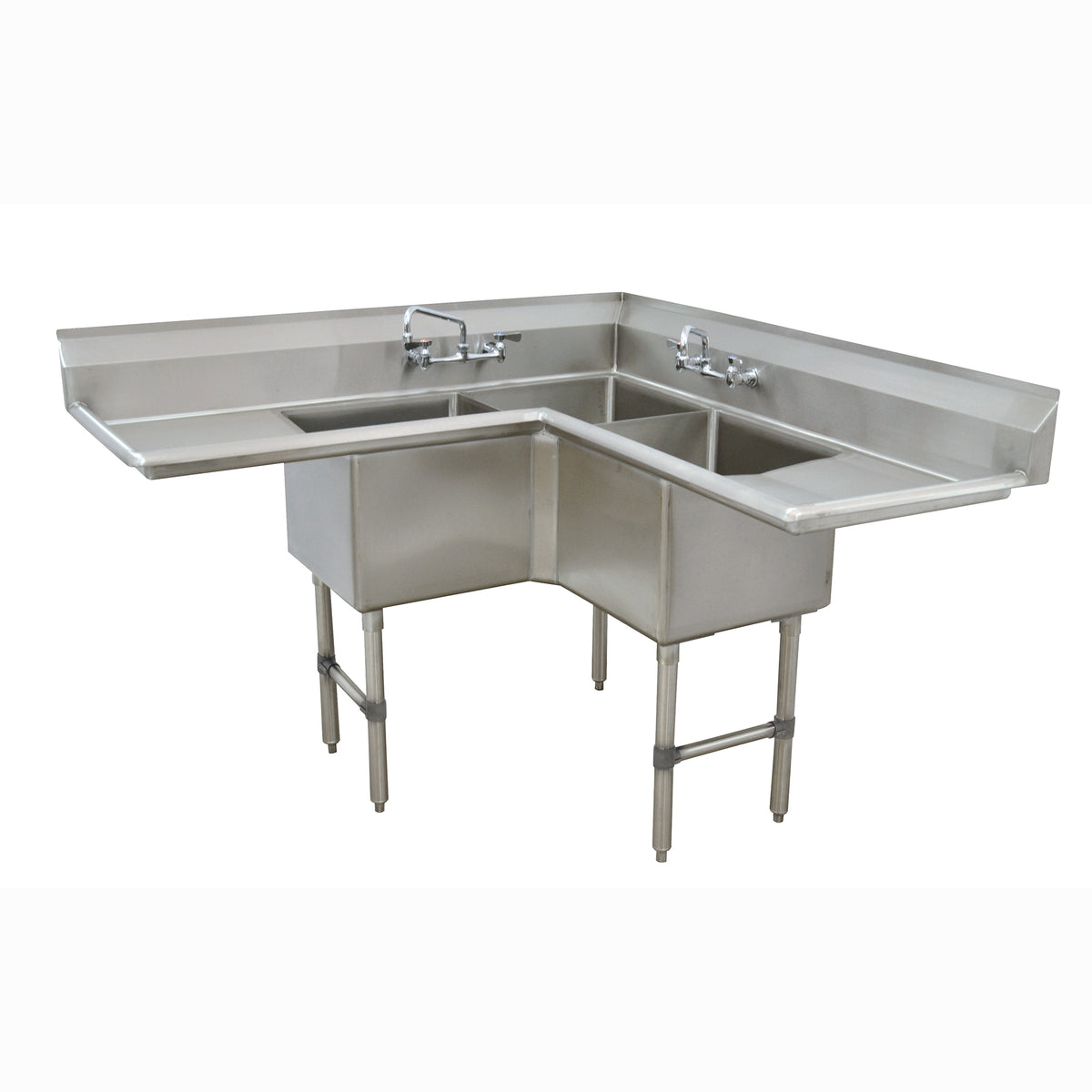

Advance Tabco FC-K4-24D — Corner 3 Compartment Sinks
The Advance Tabco FC-K4-24D is offered in the configuration shown below. Overall dimensions: 74.5 in. W × 29.5 in. D × 43 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Three 24" x 24" x 14" compartments provide ample washing, rinsing, and sanitizing areas.
- 16‑gauge 304 stainless steel construction with TIG welds ensures long‑term corrosion resistance.
- Tile‑edge splash guard and rolled rim add strength and simplify installation.
- Adjustable 1" stainless steel bullet feet and cross‑braced legs allow precise leveling on uneven floors.
- Two 24" drainboards and faucet holes on 8" centers support efficient water flow and dual‑faucet setups.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FC-K4-24D |
| Shipping Weight (Supplier Reference) | 338 lbs |
| Width | 74.5 in. |
| Depth | 29.5 in. |
| Height | 43 in. |
| Compartment (front - back) | 24" |
| Compartment Width (side - side) | 24" |
| Base Construction | stainless steel |
| Splash Height | 8-1/2" |
| Compartments | 3 compartments |
| Top Gauge | 16 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

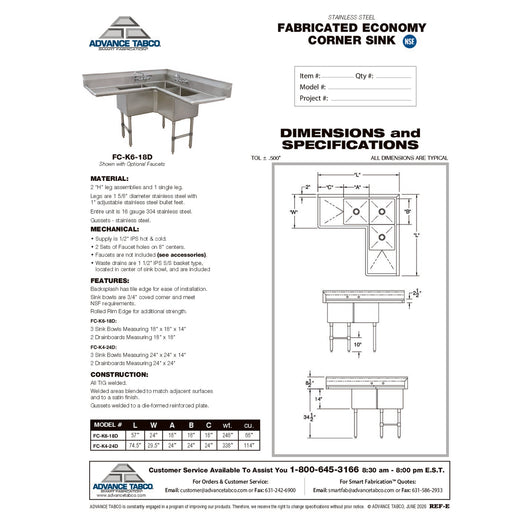

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
