Description

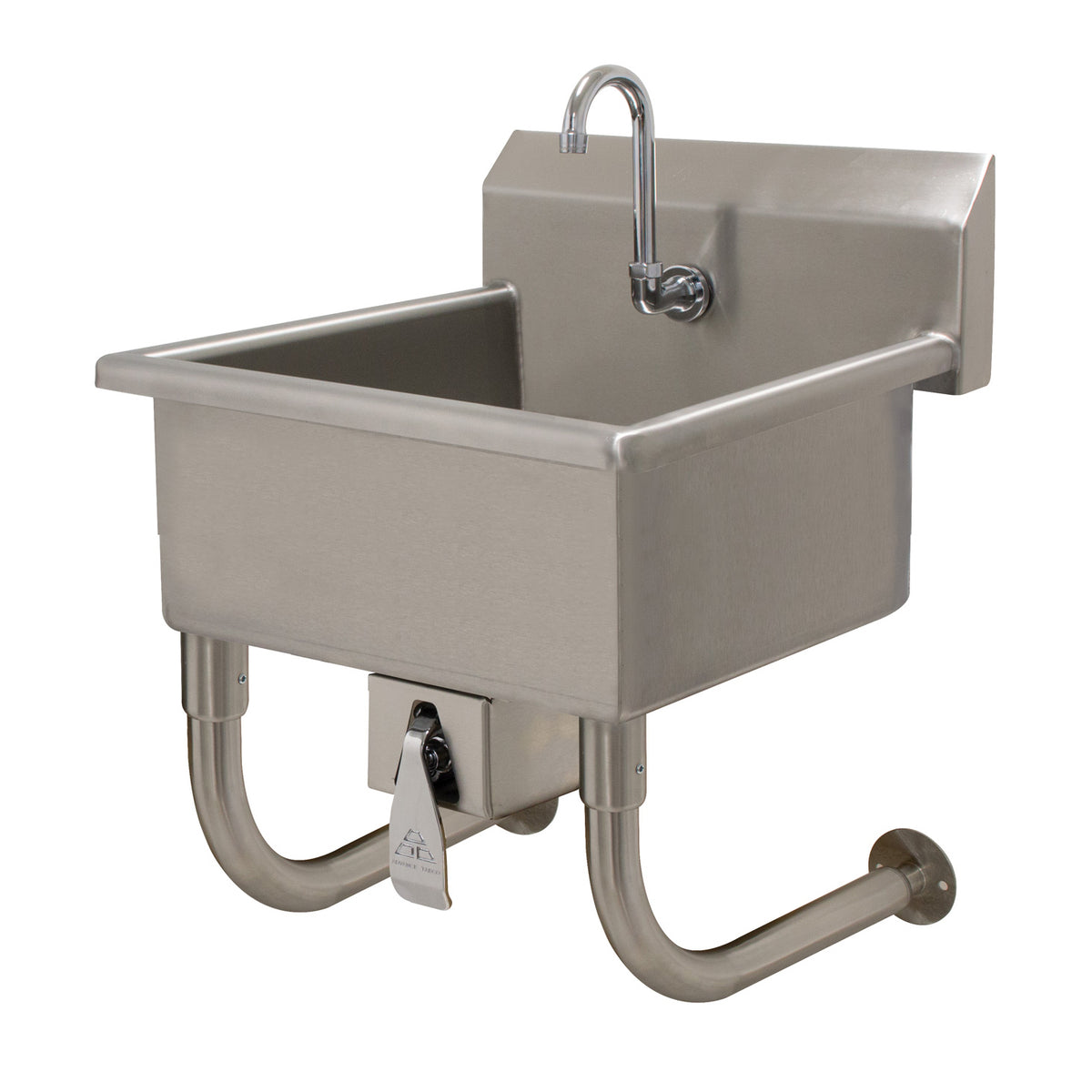

Advance Tabco FC-WM-2519KV — Commercial Hand Wash Sinks
The Advance Tabco FC-WM-2519KV is offered in the configuration shown below. Overall dimensions: 25 in. W × 19.5 in. D × 28.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 22" W × 16" D bowl with 8" depth and 8½" backsplash gives ample space and splash control.
- Knee‑operated valve with 1‑1/2" basket drain provides hands‑free use and fast drainage.
- Tubular stainless‑steel wall brackets and TIG welds create full clearance underneath for easy cleaning.
- Single faucet hole, gooseneck spout and NSF‑61 certification ensure sanitary, code‑compliant operation.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FC-WM-2519KV |
| Shipping Weight (Supplier Reference) | 66 lbs |
| Width | 25 in. |
| Depth | 19.5 in. |
| Height | 28.5 in. |
| Style | wall mounted |
| Bowl Width (left to right) | 20" & up |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 8" deep |
| Faucet | faucet included |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

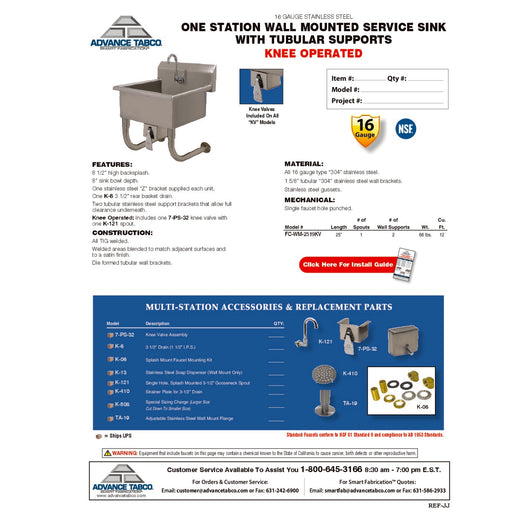

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
