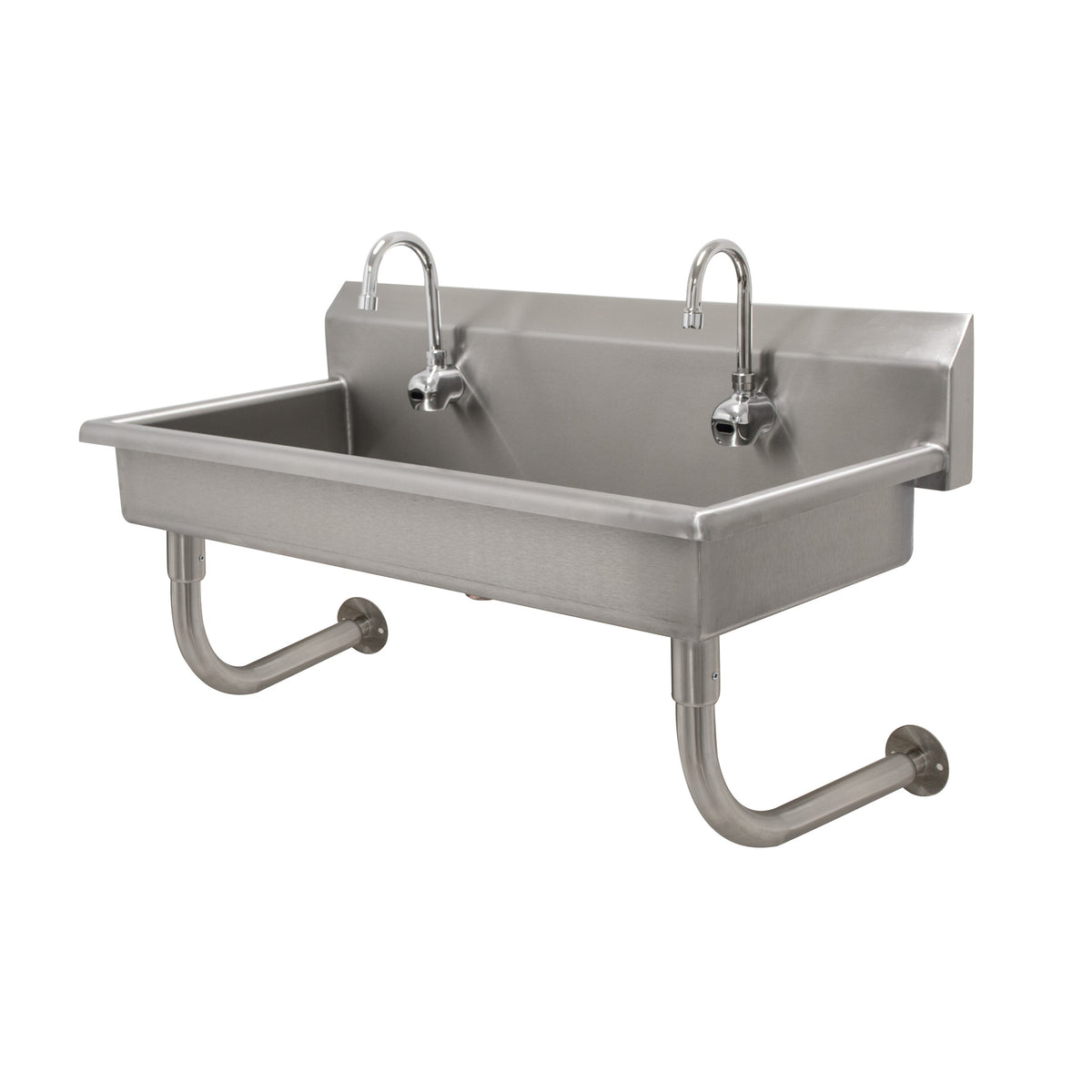

Advance Tabco FC-WM-40EFADA — Commercial Hand Wash Sinks
The Advance Tabco FC-WM-40EFADA is offered in the configuration shown below. Overall dimensions: 40 in. W × 19.5 in. D × 25.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Multiwash Hand Sink
- splash mount faucet provision
- wall mounted
- with (2) electronic faucets
- 40"W x 19-1/2"D x 25-1/2"H (overall)
- 16" front-to-back x 5" deep (bowl size)
- 8-1/2"H backsplash
- punched with (2) single faucet holes
- includes 3-1/2" rear basket drain
- 16 gauge 304 stainless steel construction
- tubular stainless steel wall supports
- NSF
- ADA compliant
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FC-WM-40EFADA |
| Shipping Weight (Supplier Reference) | 62 lbs |
| Width | 40 in. |
| Depth | 19.5 in. |
| Height | 25.5 in. |
| Style | wall mounted |
| Backsplash | back (only) |
| Dispenser | without dispenser |
| Valve | without valve |
| Gauge | 16 gauge |
| Bowl Width (left to right) | 40" - 49" |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 5" deep |
| Faucet | faucet (electronic) |
| Certifications | ADA Compliant, NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features. Follow the manufacturer manual for assembly and installation.
Documents and Resources
Available documents: Spec Sheet, Parts List, Installation Manual 2. Open the product documents section to view or download the manufacturer PDFs.
