Description

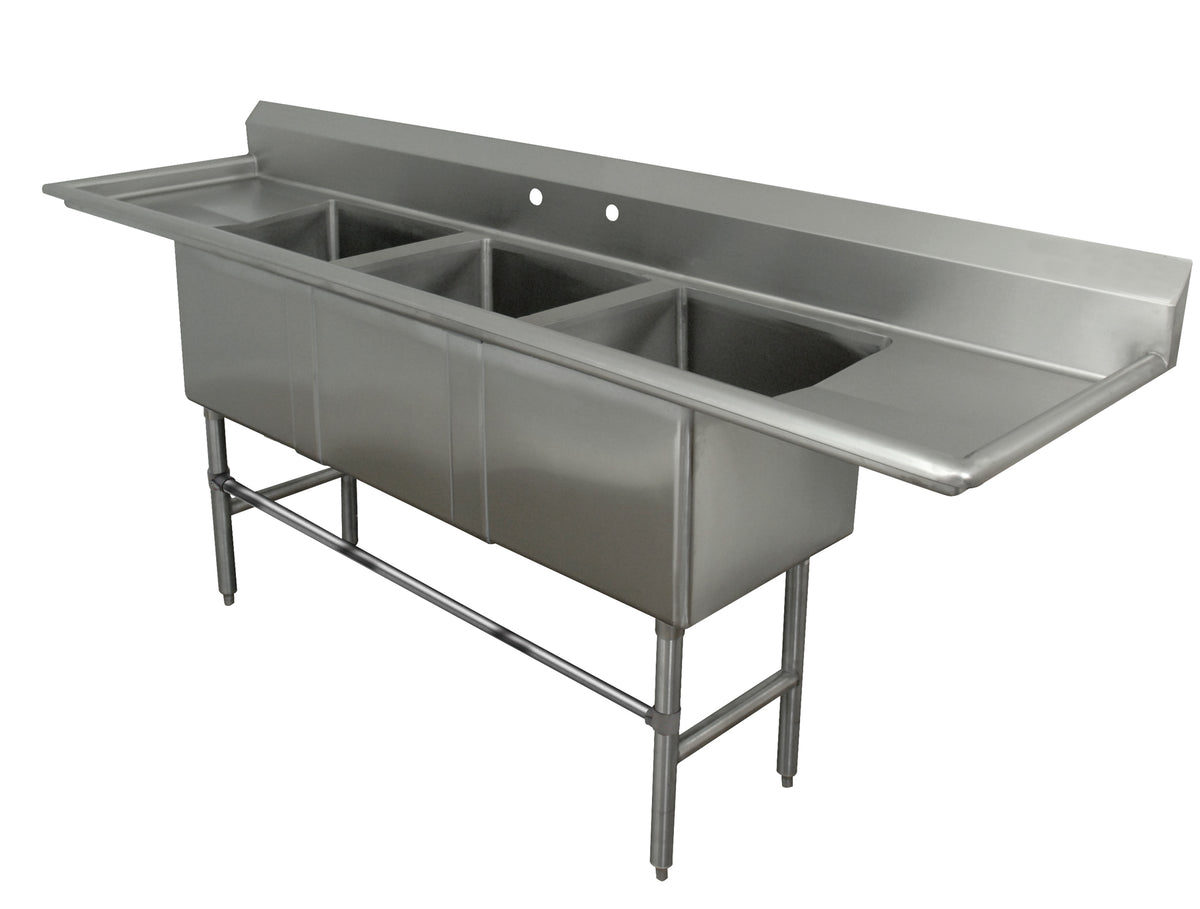

Advance Tabco FC3M-2028-24RLX — 3 Compartment Sinks
The Advance Tabco FC3M-2028-24RLX is offered in the configuration shown below. Overall dimensions: 108 in. W × 34 in. D × 43 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Three 20" × 28" × 14" bowls give ample capacity for sorting, washing and rinsing.
- 24" left and right drainboards with tile‑edge splash reduce water runoff and improve hygiene.
- Adjustable stainless steel legs and 1" bullet feet allow precise leveling on uneven floors.
- 16‑gauge 304 stainless steel top meets NSF certification for food‑service safety.
- Front and side cross‑bracing with K‑4 lever drain brackets enhance stability and optional lever drain installation.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FC3M-2028-24RLX |
| Shipping Weight (Supplier Reference) | 310 lbs |
| Width | 108 in. |
| Depth | 34 in. |
| Height | 43 in. |
| Compartment (front - back) | 28" |
| Compartment Width (side - side) | 20" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with front & side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8-1/2" |
| Top Gauge | 16 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

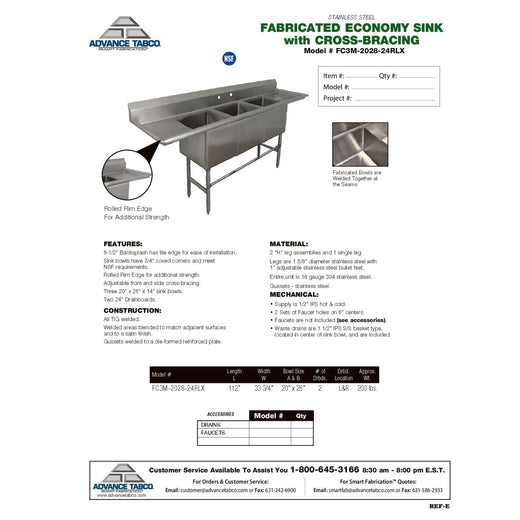

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
