Description

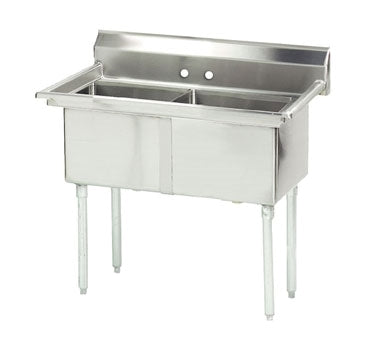

Advance Tabco FE-2-1620-X — 2 Compartment Sinks
The Advance Tabco FE-2-1620-X is offered in the configuration shown below. Overall dimensions: 37 in. W × 25.75 in. D × 43.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Special Value Fabricated Sink
- 2-compartment
- no drainboards
- bowl size 16" x 20" x 12" deep
- 18 gauge 304 stainless steel
- tile edge splash
- rolled edge
- 8" OC faucet holes
- galvanized legs with 1" adjustable plastic bullet feet
- overall 25-3/4" F/B x 37" L/R
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FE-2-1620-X |
| Shipping Weight (Supplier Reference) | 62 lbs |
| Width | 37 in. |
| Depth | 25.75 in. |
| Height | 43.5 in. |
| Compartment (front - back) | 20" |
| Compartment Width (side - side) | 16" |
| Drainboards | without drainboards |
| Base Type | legs |
| Base Construction | galvanized |
| Splash Height | 9" |
| Top Gauge | 18 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 12" |
| Certifications | NSF |
| Special Features | flyer |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

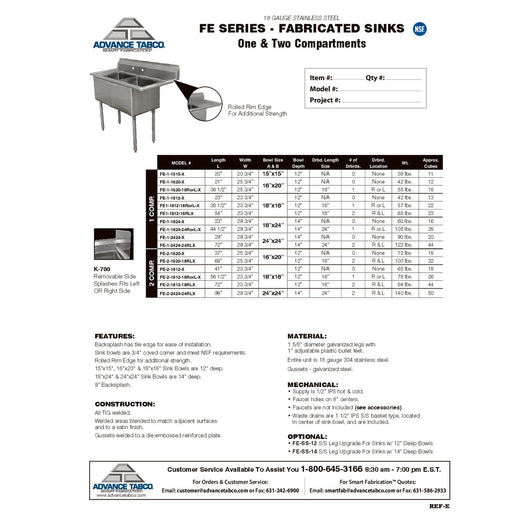

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
