Description

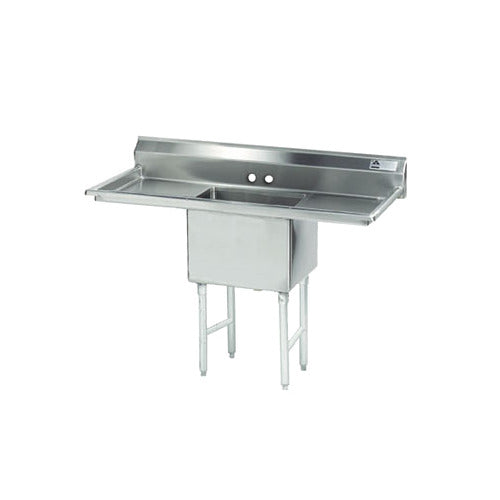

Advance Tabco FS-1-4824-24RL — 1 Compartment Sinks
The Advance Tabco FS-1-4824-24RL is offered in the configuration shown below. Overall dimensions: 96 in. W × 29.5 in. D × 43 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Full Skirt Design
- Backsplash has tile edge for ease of installation.
- Sink bowls are 3/4” coved corner and meet NSF requirements.
- Rolled Rim Edge for additional strength.
- Sink Bowls are 14” deep for greater capacity.
- Stainless Steel Legs and Cross Bracing.
- All TIG welded.
- Welded areas blended to match adjacent surfaces and to a satin finish.
- 1 5/8” diameter stainless steel legs with 1” adjustable stainless steel bullet feet.
- Entire unit is 14 gauge 304 stainless steel.
- Stainless Steel Gussets.
- Supply is 1/2” IPS hot & cold.
- Waste drains are 1 1/2” IPS S/S basket type, located in center of sink bowl, and are included.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FS-1-4824-24RL |
| Shipping Weight (Supplier Reference) | 300 lbs |
| Width | 96 in. |
| Depth | 29.5 in. |
| Height | 43 in. |
| Compartment (front - back) | 24" |
| Compartment Width (side - side) | 48" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8-1/2" |
| Top Gauge | 14 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
