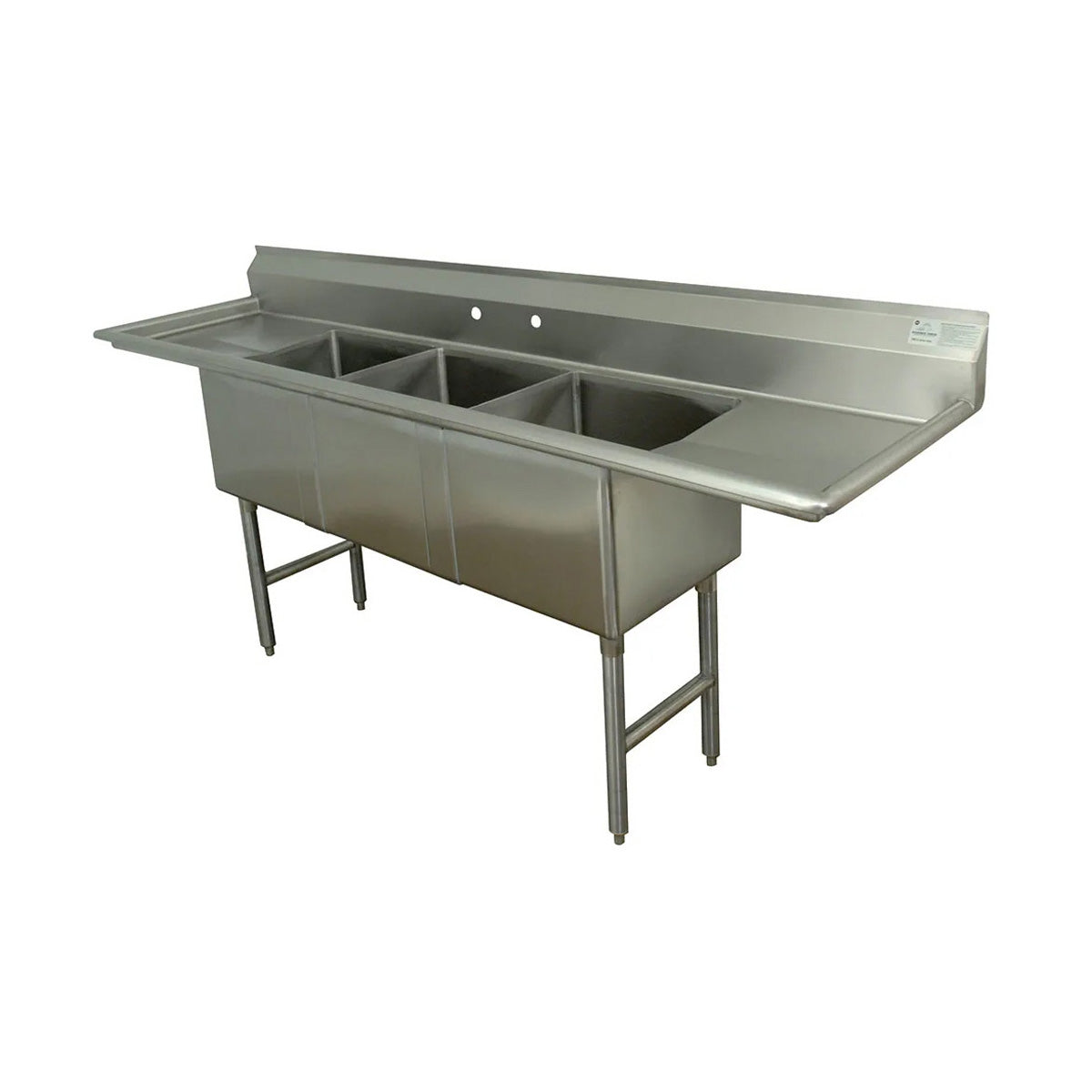

Advance Tabco FS-3-2028-24RL — 3 Compartment Sinks
The Advance Tabco FS-3-2028-24RL is offered in the configuration shown below. Overall dimensions: 108 in. W × 30 in. D × 43 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 14 ga 304 stainless steel construction meets NSF certification for durability and hygiene.
- Tile‑edge splash wall and 8½" splash height protect work surfaces from splatter.
- Stainless steel legs with adjustable 1" bullet feet and side cross‑bracing ensure stable, level installation.
- Eight‑inch on‑center faucet holes accommodate standard commercial faucets.
- Overall dimensions 34" F/B × 108" L/R fit standard prep line layouts.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FS-3-2028-24RL |
| Shipping Weight (Supplier Reference) | 310 lbs |
| Width | 108 in. |
| Depth | 30 in. |
| Height | 43 in. |
| Compartment (front - back) | 28" |
| Compartment Width (side - side) | 20" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8-1/2" |
| Top Gauge | 14 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

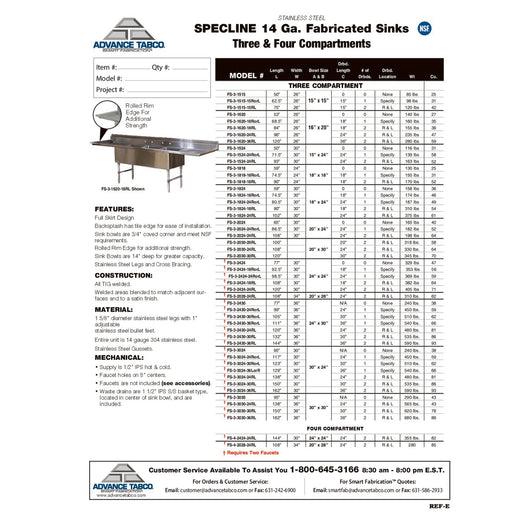

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
