Description

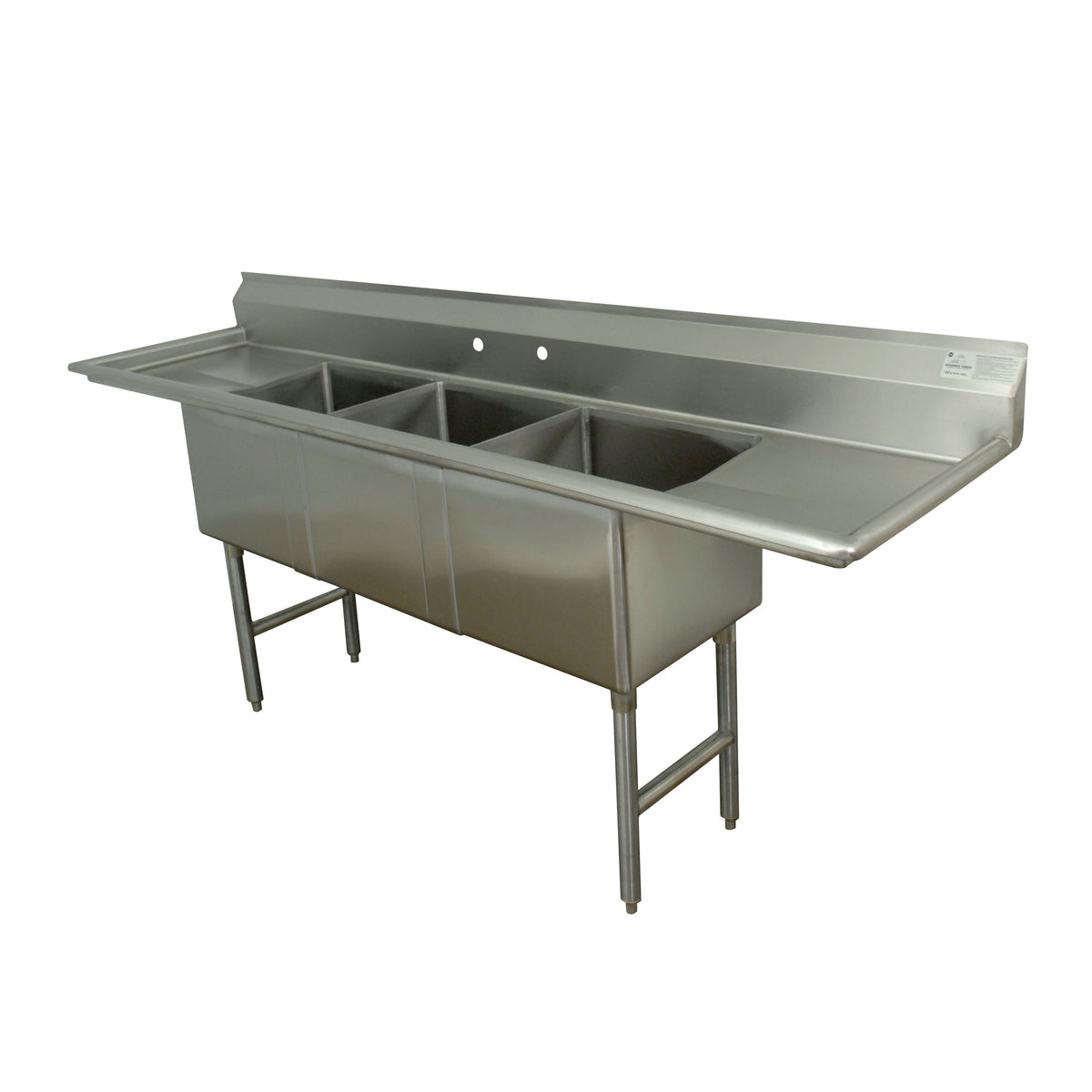

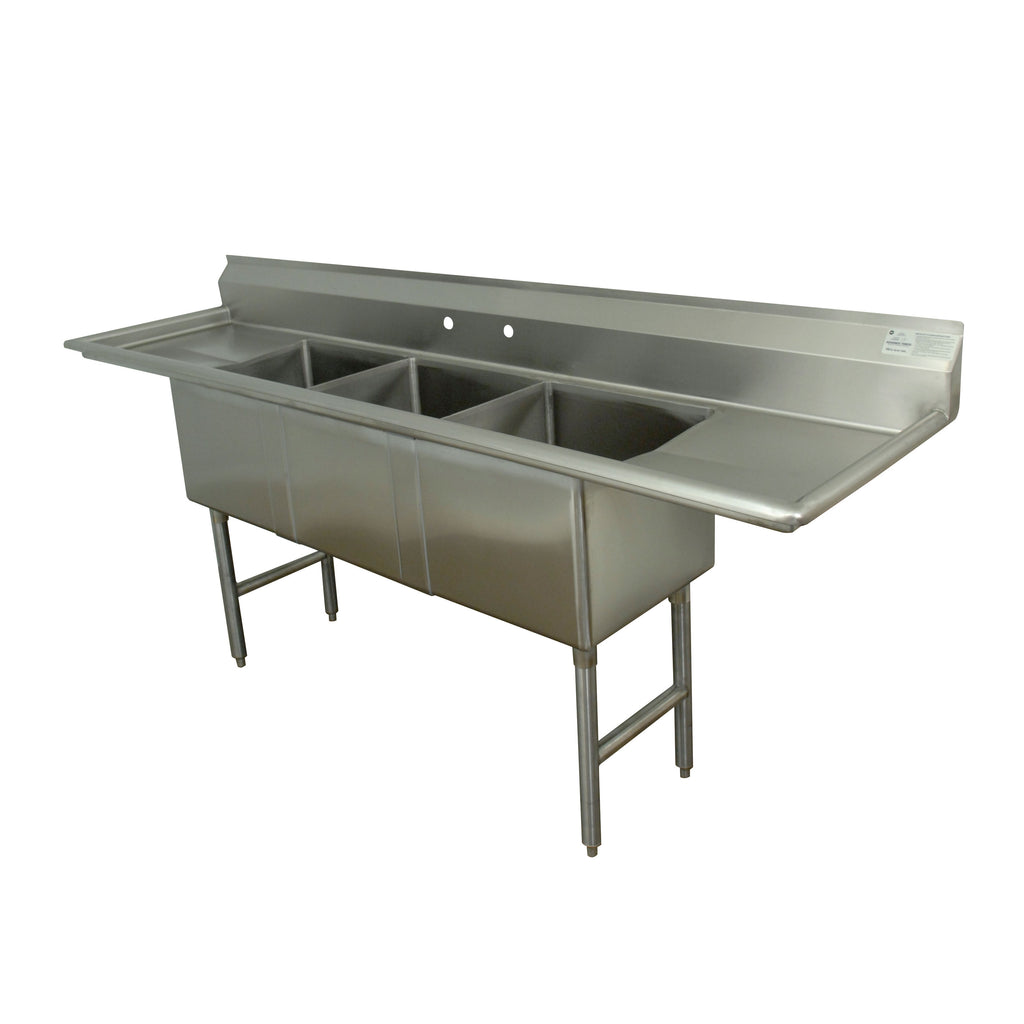

Advance Tabco FS-3-2030-24RL — 3 Compartment Sinks
The Advance Tabco FS-3-2030-24RL is offered in the configuration shown below. Overall dimensions: 108 in. W × 36 in. D × 42 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 20" × 30" bowl provides a 14" deep work surface for large‑volume washing and prep.
- 24" left and right drainboards streamline runoff and keep work areas dry.
- 14‑gauge 304 stainless steel construction meets NSF certification for food‑safe durability.
- Tile‑edge splash guard and rolled‑rim edge add extra strength and prevent water overflow.
- Adjustable stainless steel legs with 1" bullet feet and side cross‑bracing ensure stable, level installation.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FS-3-2030-24RL |
| Shipping Weight (Supplier Reference) | 330 lbs |
| Width | 108 in. |
| Depth | 36 in. |
| Height | 42 in. |
| Compartment (front - back) | 30" |
| Compartment Width (side - side) | 20" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8-1/2" |
| Top Gauge | 14 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

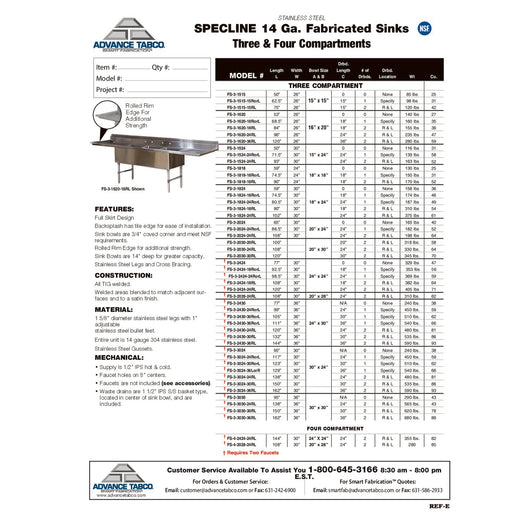

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
