Description

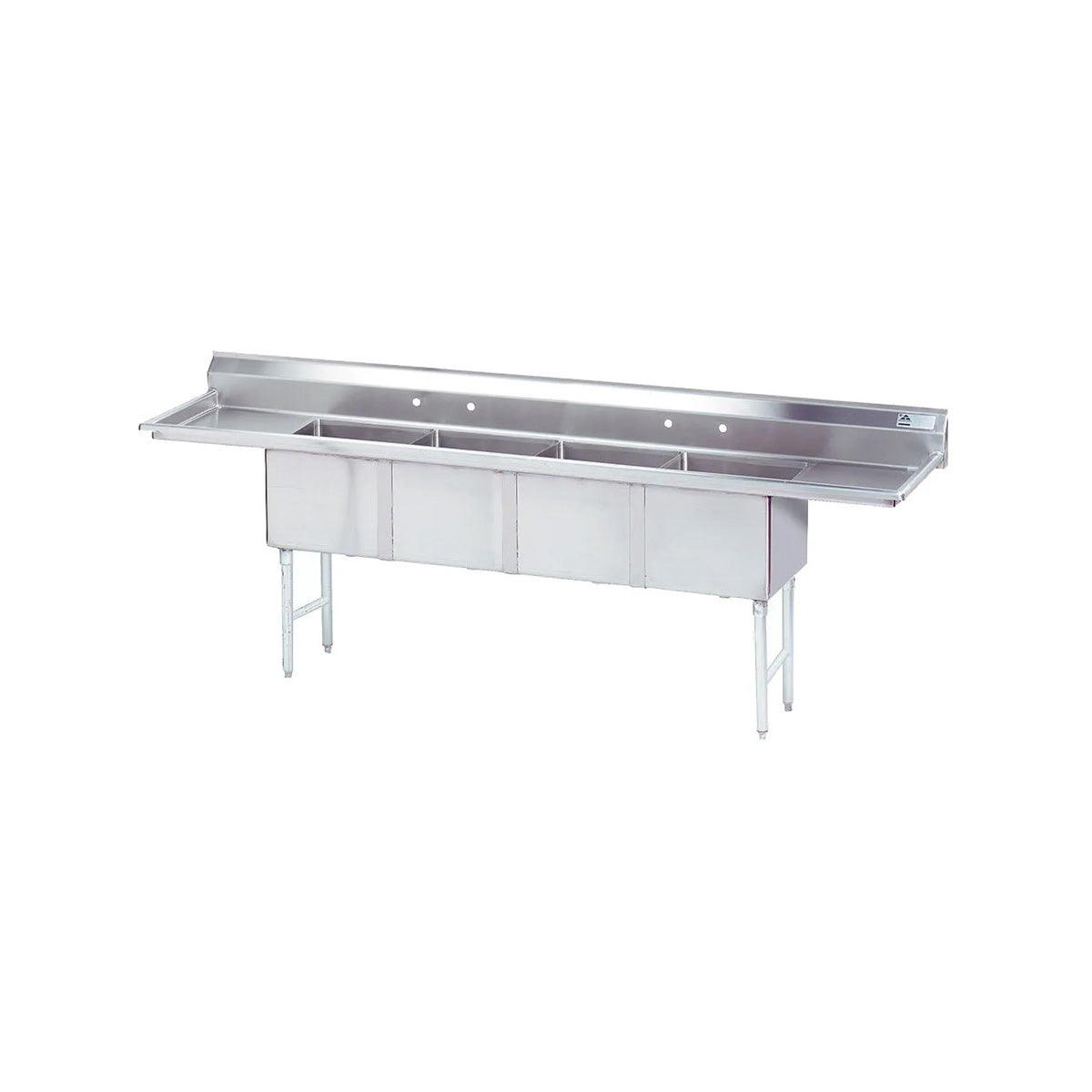

Advance Tabco FS-4-2424-24RL — 4 Compartment Sinks
The Advance Tabco FS-4-2424-24RL is offered in the configuration shown below. Overall dimensions: 144 in. W × 30 in. D × 43 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 14‑gauge 304 stainless steel construction meets NSF certification for hygiene.
- 24" x 24" bowl depth 14" provides ample capacity for large batches.
- Left and right 24" drainboards with 8" splash height keep work surfaces dry.
- Stainless steel legs with adjustable 1" bullet feet and cross‑bracing ensure stable leveling.
- Two sets of 8" on‑center faucet holes accommodate required dual faucets.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FS-4-2424-24RL |
| Shipping Weight (Supplier Reference) | 355 lbs |
| Width | 144 in. |
| Depth | 30 in. |
| Height | 43 in. |
| Compartment (front - back) | 24" |
| Compartment Width (side - side) | 24" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8" |
| Top Gauge | 14 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
