Description

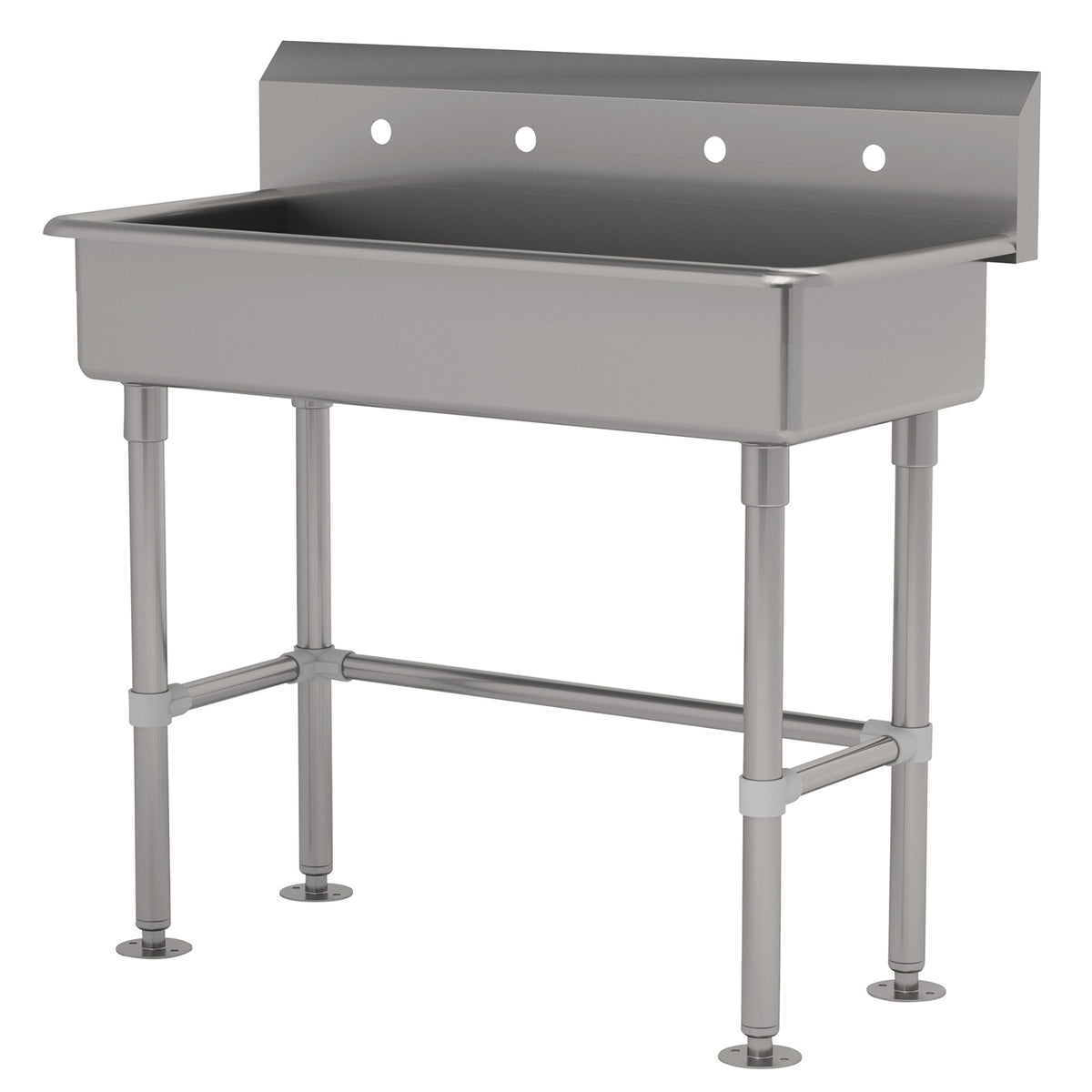

Advance Tabco FS-FM-40-ADA — Commercial Hand Wash Sinks
The Advance Tabco FS-FM-40-ADA is offered in the configuration shown below. Overall dimensions: 40 in. W × 19.5 in. D × 42.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Multiwash Hand Sink
- splash mount faucet provision
- with stainless steel legs and flanged feet
- 40"W x 19-1/2"D x 42-1/2"H (overall)
- 16" front-to-back x 5" deep (bowl size)
- 8-1/2"H backsplash
- punched with (2) sets of faucet holes 8" OC
- includes 3-1/2" rear basket drain
- 14 gauge 304 stainless steel construction
- NSF
- ADA compliant
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FS-FM-40-ADA |
| Shipping Weight (Supplier Reference) | 87 lbs |
| Width | 40 in. |
| Depth | 19.5 in. |
| Height | 42.5 in. |
| Style | freestanding |
| Backsplash | back (only) |
| Dispenser | without dispenser |
| Valve | without valve |
| Gauge | 14 gauge |
| Bowl Width (left to right) | 40" - 49" |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 5" deep |
| Faucet | faucet not included |
| Certifications | ADA Compliant, NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

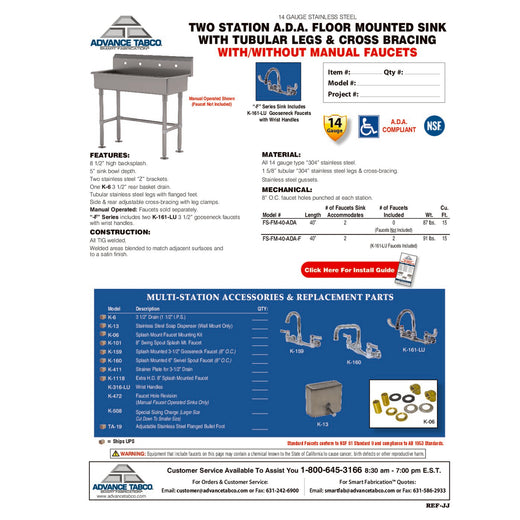

Available documents: Spec Sheet, Installation & Operation. Open the product documents section to view or download the manufacturer PDFs.
