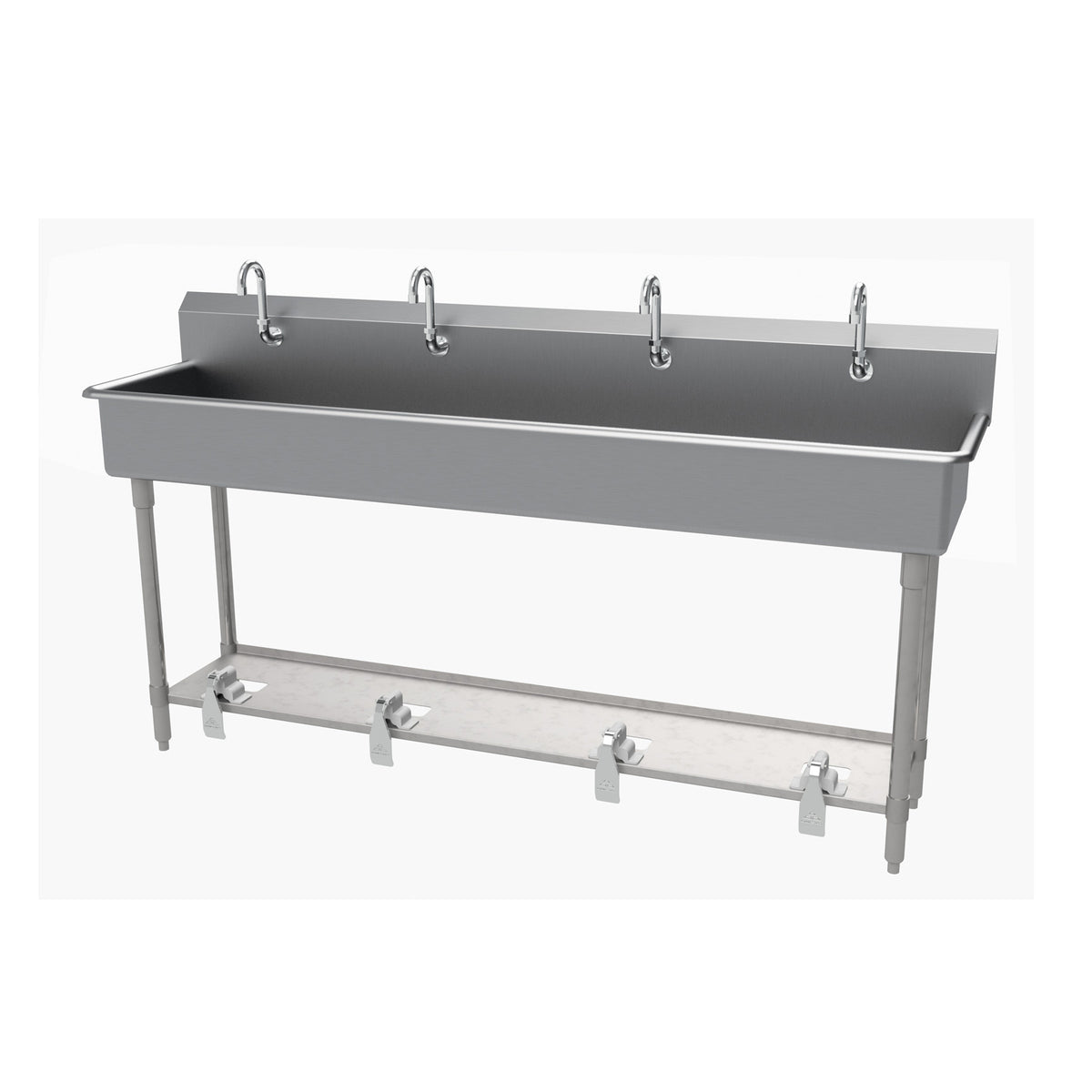

Advance Tabco FS-FM-80FV — Commercial Hand Wash Sinks
The Advance Tabco FS-FM-80FV is offered in the configuration shown below. Overall dimensions: 80 in. W × 19.5 in. D × 42.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Multiwash Hand Sink
- splash mount faucet provision
- with toe-operated push valve
- 80"W x 19-1/2"D x 42-1/2"H (overall)
- 16" front-to-back x 8" deep (bowl size)
- 8-1/2"H backsplash
- punched with (4) single faucet holes
- gooseneck spouts
- includes stainless steel legs & flanged feet
- pedal bracket support
- includes 3-1/2" rear basket drain
- 14 gauge 304 stainless steel construction
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FS-FM-80FV |
| Shipping Weight (Supplier Reference) | 168 lbs |
| Width | 80 in. |
| Depth | 19.5 in. |
| Height | 42.5 in. |
| Style | freestanding |
| Backsplash | back (only) |
| Dispenser | without dispenser |
| Valve | multiple foot valve units |
| Gauge | 14 gauge |
| Bowl Width (left to right) | 80" - 89" |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 8" deep |
| Faucet | faucet not included |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

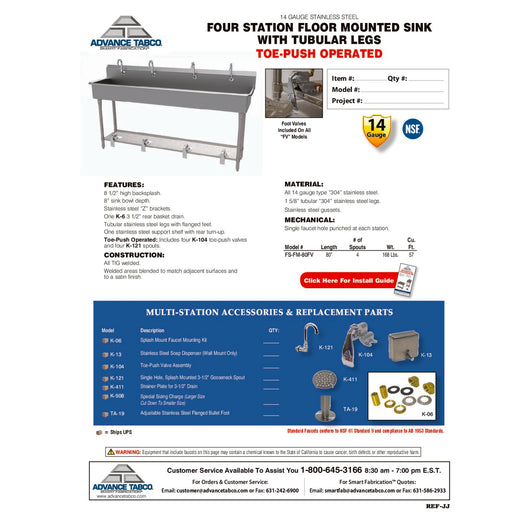

Available documents: Spec Sheet, Parts List, Installation & Operation. Open the product documents section to view or download the manufacturer PDFs.
