Description

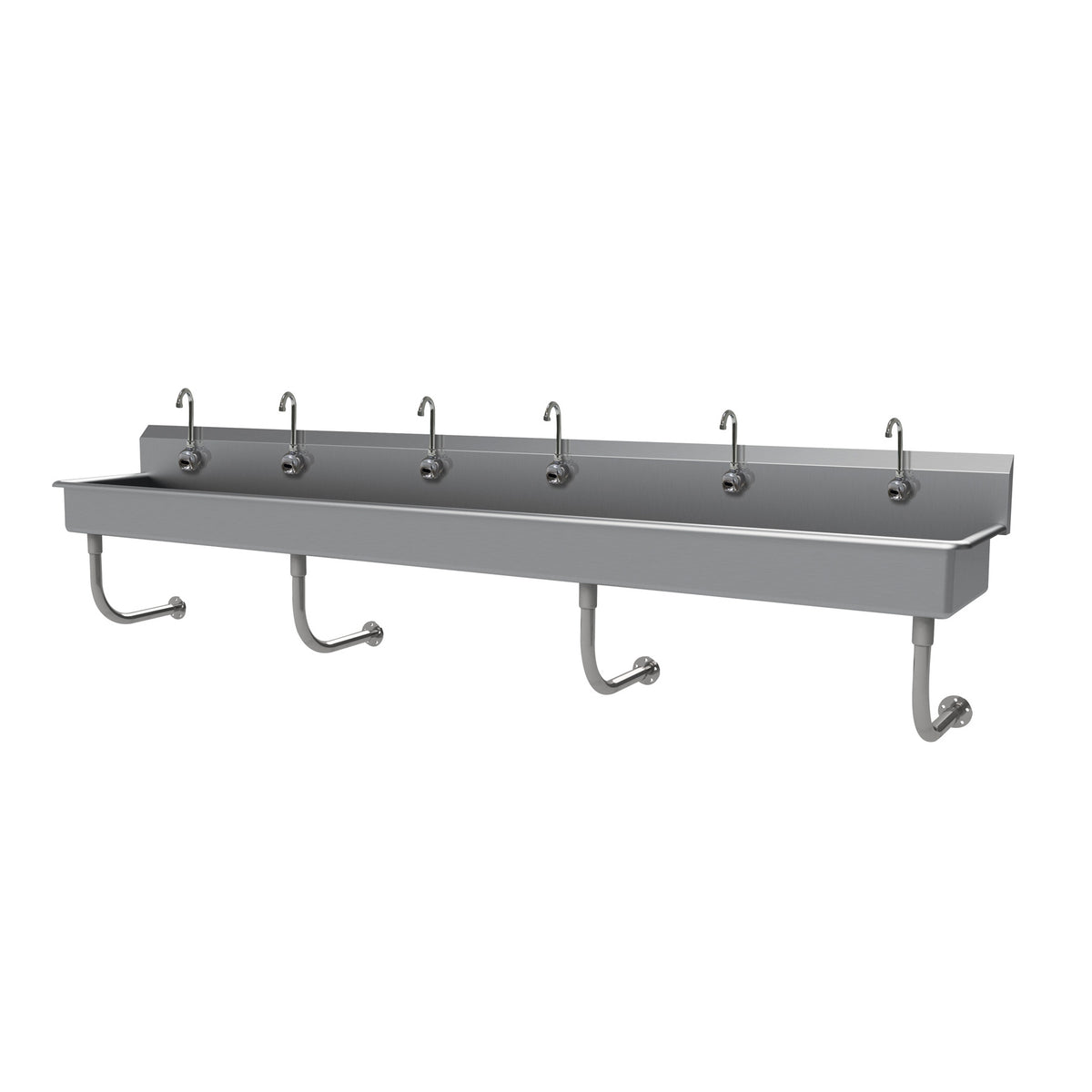

Advance Tabco FS-WM-120EFADA — Commercial Hand Wash Sinks
The Advance Tabco FS-WM-120EFADA is offered in the configuration shown below. Overall dimensions: 120 in. W × 19.5 in. D × 25.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Multiwash Hand Sink
- splash mount faucet provision
- wall mounted
- with (6) electronic faucets
- 120"W x 19-1/2"D x 25-1/2"H (overall)
- 16" front-to-back x 5" deep (bowl size)
- 8-1/2"H backsplash
- punched with (6) single faucet holes
- includes (3) 3-1/2" rear basket drains
- 14 gauge 304 stainless steel construction
- (4) tubular stainless steel wall supports
- NSF
- ADA compliant
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FS-WM-120EFADA |
| Shipping Weight (Supplier Reference) | 149 lbs |
| Width | 120 in. |
| Depth | 19.5 in. |
| Height | 25.5 in. |
| Style | wall mounted |
| Backsplash | back (only) |
| Dispenser | without dispenser |
| Valve | without valve |
| Gauge | 14 gauge |
| Bowl Width (left to right) | 120" & up |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 5" deep |
| Faucet | faucet (electronic) |
| Certifications | ADA Compliant, NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features. Follow the manufacturer manual for assembly and installation.
Documents and Resources

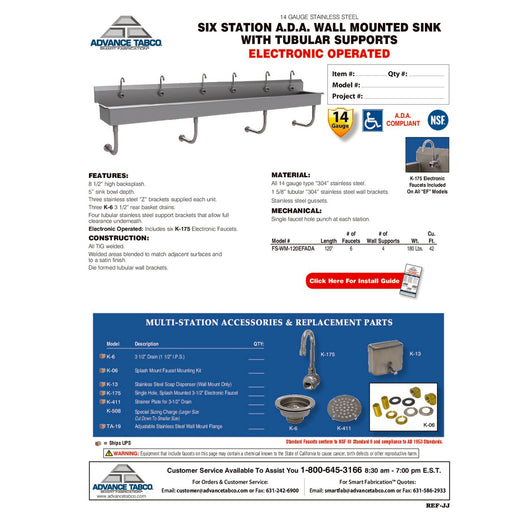

Available documents: Spec Sheet, Troubleshooting Manual, Parts List. Open the product documents section to view or download the manufacturer PDFs.
