Description

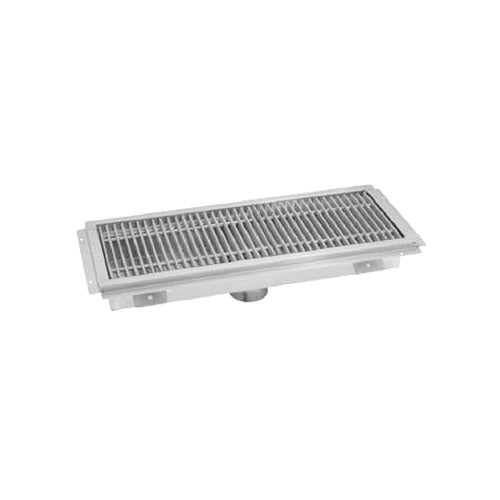

Advance Tabco FTG-1830 — Trough Drains
The Advance Tabco FTG-1830 is offered in the configuration shown below. Overall dimensions: 30 in. W × 18 in. D × 4 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 30" W × 18" D × 4" deep trough made of 14‑ga 304 stainless steel, corrosion‑resistant.
- Removable stainless‑steel strainer basket with handle simplifies cleaning.
- 4" O.D. × 3" long waste pipe sleeve, pitched toward waste for fast drainage.
- Stainless‑steel subway‑style grating (3/16" × 1" bars, 9/16" spacing) captures debris.
- TIG‑welded, satin‑finished corners and NSF certification ensure durability in foodservice.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FTG-1830 |
| Shipping Weight (Supplier Reference) | 74 lbs |
| Width | 30 in. |
| Depth | 18 in. |
| Height | 4 in. |
| Width (long side) | 25" - 36" (3 ft) |
| Grate Type | subway-style grating |
| Grate Construction | stainless steel grates |
| Depth (short side) | 18" |
| Trough Construction | 14 ga stainless steel trough |
| Pan Type | non anti-splash |
| Deep (pan depth) | 4" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
