Description

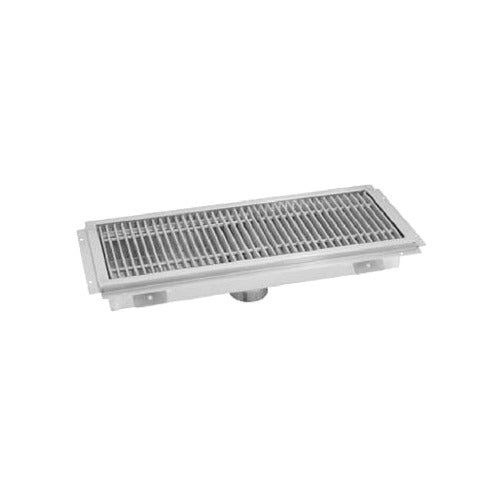

Advance Tabco FTG-1896 — Trough Drains
The Advance Tabco FTG-1896 is offered in the configuration shown below. Overall dimensions: 96 in. W × 18 in. D × 4 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 96" × 18" × 4" stainless‑steel trough, 14 ga 304 stainless construction for durability.
- Includes two 4" O.D. waste pipe sleeves and a removable 3" long perforated strainer basket with handle.
- Equipped with subway‑style stainless grating (3/16" × 1" bars, 9/16" spacing) for easy cleaning and slip resistance.
- NSF‑listed and TIG‑welded with polished satin finish, meeting commercial kitchen sanitation standards.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FTG-1896 |
| Shipping Weight (Supplier Reference) | 187 lbs |
| Width | 96 in. |
| Depth | 18 in. |
| Height | 4 in. |
| Width (long side) | 85" - 96" (8 ft) |
| Grate Type | subway-style grating |
| Grate Construction | stainless steel grates |
| Depth (short side) | 18" |
| Trough Construction | 14 ga stainless steel trough |
| Pan Type | non anti-splash |
| Deep (pan depth) | 4" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
