Description

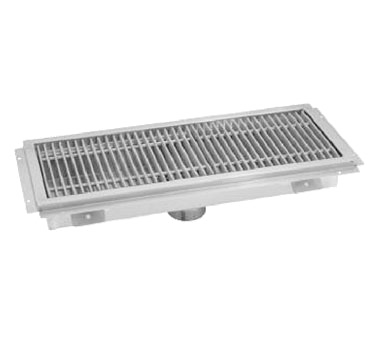

Advance Tabco FTG-2454 — Trough Drains
The Advance Tabco FTG-2454 is offered in the configuration shown below. Overall dimensions: 54 in. W × 24 in. D × 4 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 14 ga 304 stainless steel, TIG‑welded for corrosion‑resistant durability.
- Stainless‑steel subway grating (3/16" × 1") spaced 9/16" for easy cleaning.
- Pitched toward waste with 4" O.D. pipe and 3" plumbing sleeve for fast drainage.
- NSF certified, meets commercial kitchen plumbing requirements.
- 4" deep non‑anti‑splash pan handles high‑volume water without overflow.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FTG-2454 |
| Shipping Weight (Supplier Reference) | 145 lbs |
| Width | 54 in. |
| Depth | 24 in. |
| Height | 4 in. |
| Width (long side) | 49" - 60" (5 ft) |
| Grate Type | subway-style grating |
| Grate Construction | stainless steel grates |
| Depth (short side) | 24" |
| Trough Construction | 14 ga stainless steel trough |
| Pan Type | non anti-splash |
| Deep (pan depth) | 4" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

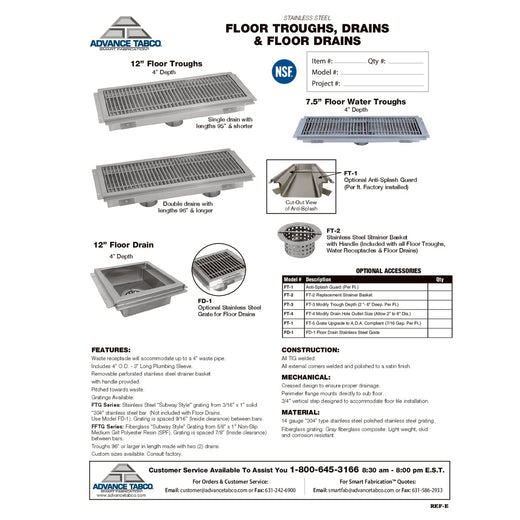

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
