Description

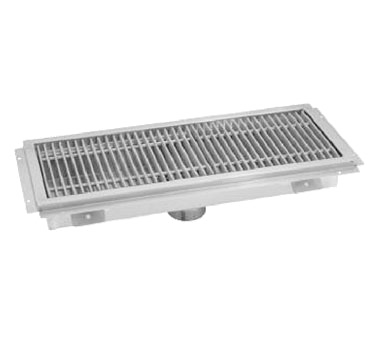

Advance Tabco FTG-760 — Trough Drains
The Advance Tabco FTG-760 is offered in the configuration shown below. Overall dimensions: 60 in. W × 7.5 in. D × 4 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 60" overall width with 7½" depth and 4" pan depth fits standard commercial floor layouts.
- Constructed from 14 ga 304 stainless steel with TIG‑welded, satin‑finished corners for durability and hygiene.
- Includes a removable stainless‑steel 3/16" × 1" subway‑style grating and strainer basket for easy cleaning.
- Designed with a 4" O.D. waste pipe sleeve (3" long) pitched toward waste, supporting NSF‑certified drainage.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | FTG-760 |
| Shipping Weight (Supplier Reference) | 101 lbs |
| Width | 60 in. |
| Depth | 7.5 in. |
| Height | 4 in. |
| Width (long side) | 49" - 60" (5 ft) |
| Grate Type | subway-style grating |
| Grate Construction | stainless steel grates |
| Depth (short side) | 7-1/2" |
| Trough Construction | 14 ga stainless steel trough |
| Pan Type | non anti-splash |
| Deep (pan depth) | 4" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
