Description

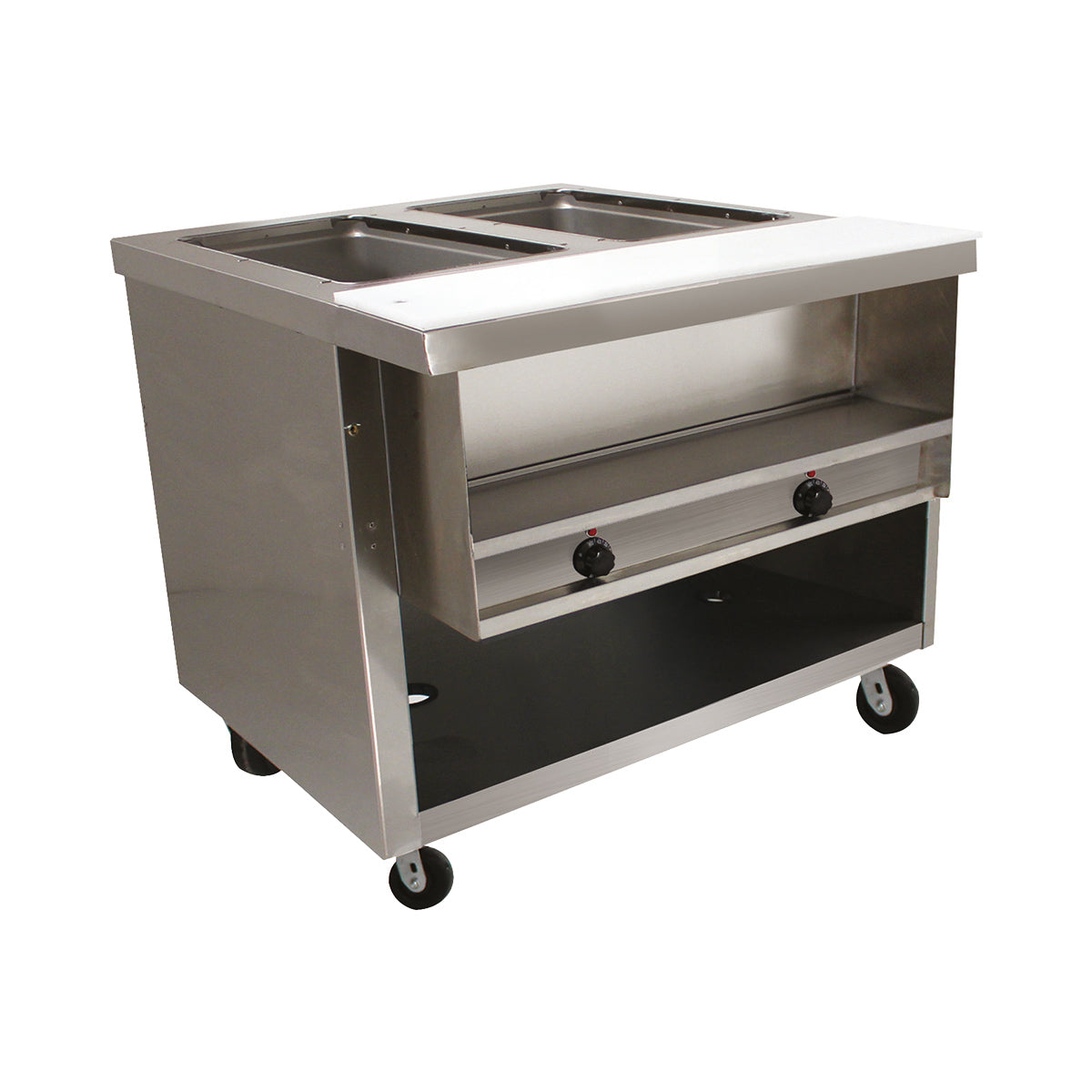

Advance Tabco HDSW-2-120-BS — Commercial Steam Tables
The Advance Tabco HDSW-2-120-BS is offered in the configuration shown below. Overall dimensions: 31.81 in. W × 35.75 in. D × 35.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Two 12" × 20" sealed wells hold pans up to 6¼" deep, providing 640 W each for steady heat.
- 18‑gauge 300‑series stainless steel top and body deliver rugged, sanitary construction.
- Thermostatic controls per well and a manifold drain enable precise temps and easy water removal.
- UL and NSF certified 120 V unit uses 1280 W total, complying with commercial safety.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | HDSW-2-120-BS |
| Shipping Weight (Supplier Reference) | 250 lbs |
| Width | 31.81 in. |
| Depth | 35.75 in. |
| Height | 35.5 in. |
| Overall Width (side - side) | 31" - 36" |
| Power Type | electric |
| Total well capacity | 2 wells |
| Well Type | sealed well |
| Design | enclosed storage base |
| Working Height | 34" |
| Base Construction | stainless steel |
| Voltage | 120 |
| Control Type | thermostatic control |
| Certifications | NSF, UL |
| Phase | 1 |
| Wattage | 1280 watts |
| Watts Per Well | 640 watts |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

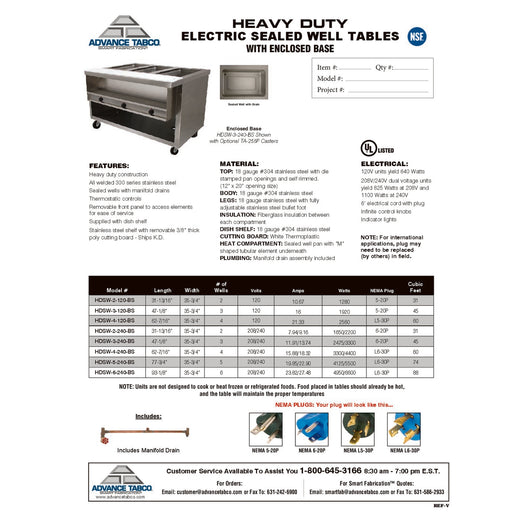

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
