Description

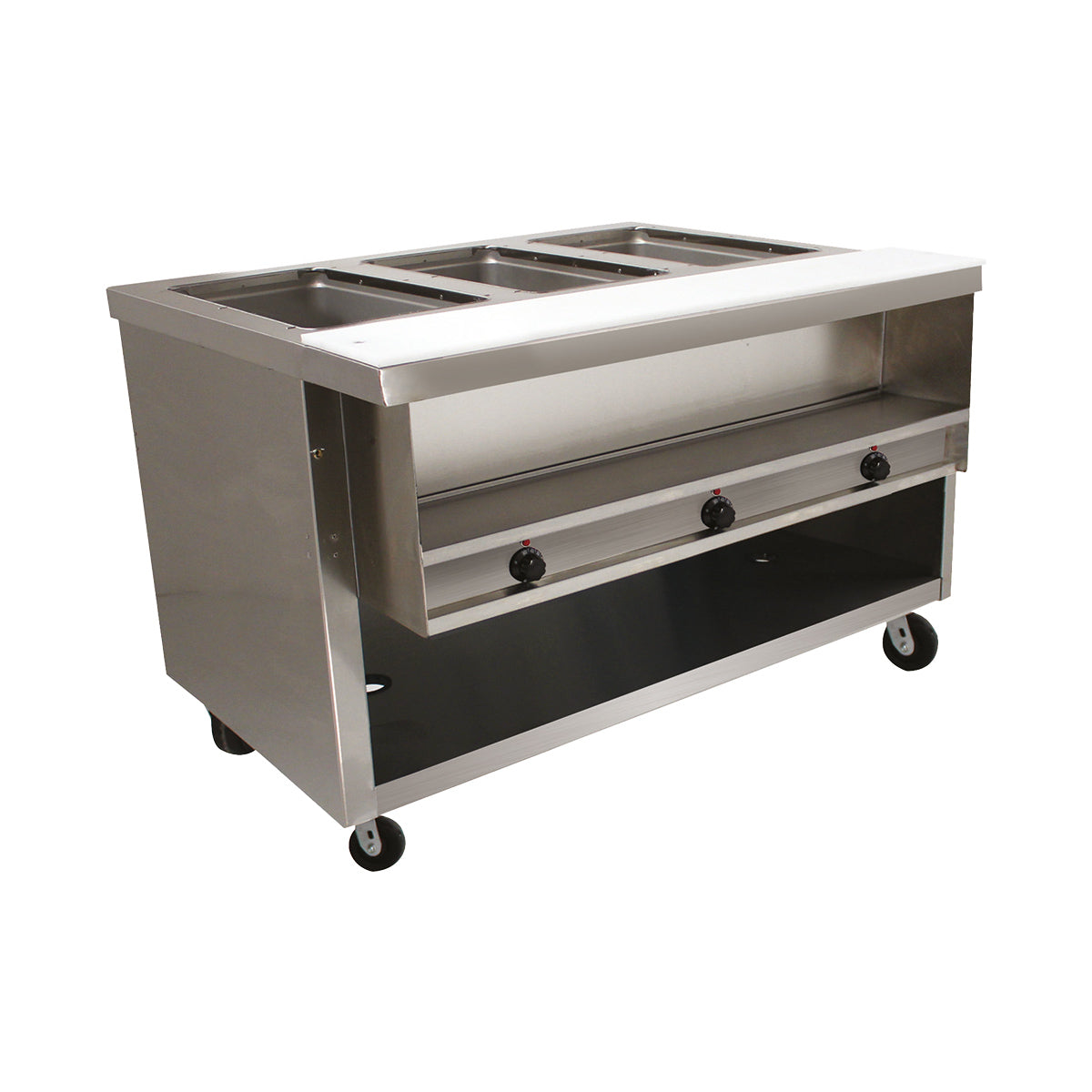

Advance Tabco HDSW-3-120-BS — Commercial Steam Tables
The Advance Tabco HDSW-3-120-BS is offered in the configuration shown below. Overall dimensions: 47.13 in. W × 35.75 in. D × 35.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Three 12" × 20" insulated wells accept pans up to 6¼" deep, each with a 640 W thermostatic heater.
- 18‑gauge stainless steel body and welded 300 series construction provide rugged durability.
- Removable front panel and stainless shelf with 3/8" poly cutting board simplify cleaning and service.
- UL, NSF certified, 120 V NEMA 5‑20P plug and built‑in manifold drain for easy liquid removal.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | HDSW-3-120-BS |
| Shipping Weight (Supplier Reference) | 340 lbs |
| Width | 47.13 in. |
| Depth | 35.75 in. |
| Height | 35.5 in. |
| Overall Width (side - side) | 43" - 48" |
| Power Type | electric |
| Total well capacity | 3 wells |
| Well Type | sealed well |
| Design | enclosed storage base |
| Working Height | 34" |
| Base Construction | stainless steel |
| Voltage | 120 |
| Control Type | thermostatic control |
| Certifications | NSF, UL |
| Phase | 1 |
| Wattage | 1920 watts |
| Watts Per Well | 640 watts |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
