Description

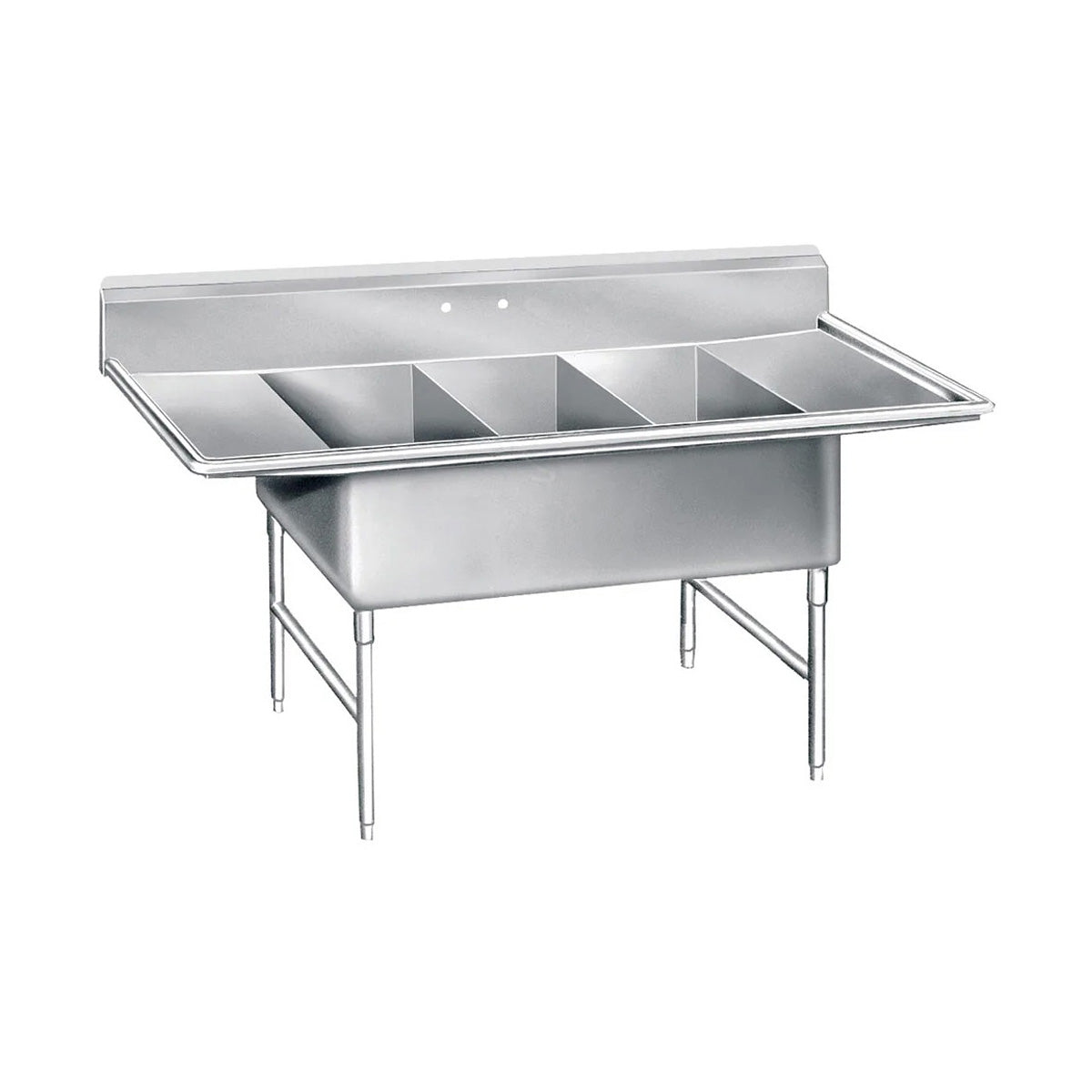

Advance Tabco K7-3-3030-24RL — 3 Compartment Sinks
The Advance Tabco K7-3-3030-24RL is offered in the configuration shown below. Overall dimensions: 138 in. W × 36 in. D × 42 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Super Size Fabricated Sink
- 3-compartment
- with left & right-hand drainboards
- 30" front-to-back x 30"W sink compartment
- 14" deep
- with tile edge splash
- full skirt
- stainless steel bullet feet
- 16 gauge 300 series stainless steel
- 24" drainboards
- overall 36" F/B x 138" L/R
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | K7-3-3030-24RL |
| Shipping Weight (Supplier Reference) | 420 lbs |
| Width | 138 in. |
| Depth | 36 in. |
| Height | 42 in. |
| Compartment (front - back) | 30" |
| Compartment Width (side - side) | 30" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8" |
| Top Gauge | 16 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

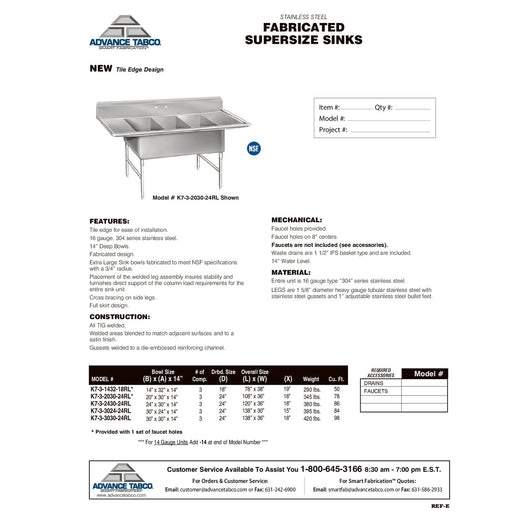

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
