Description

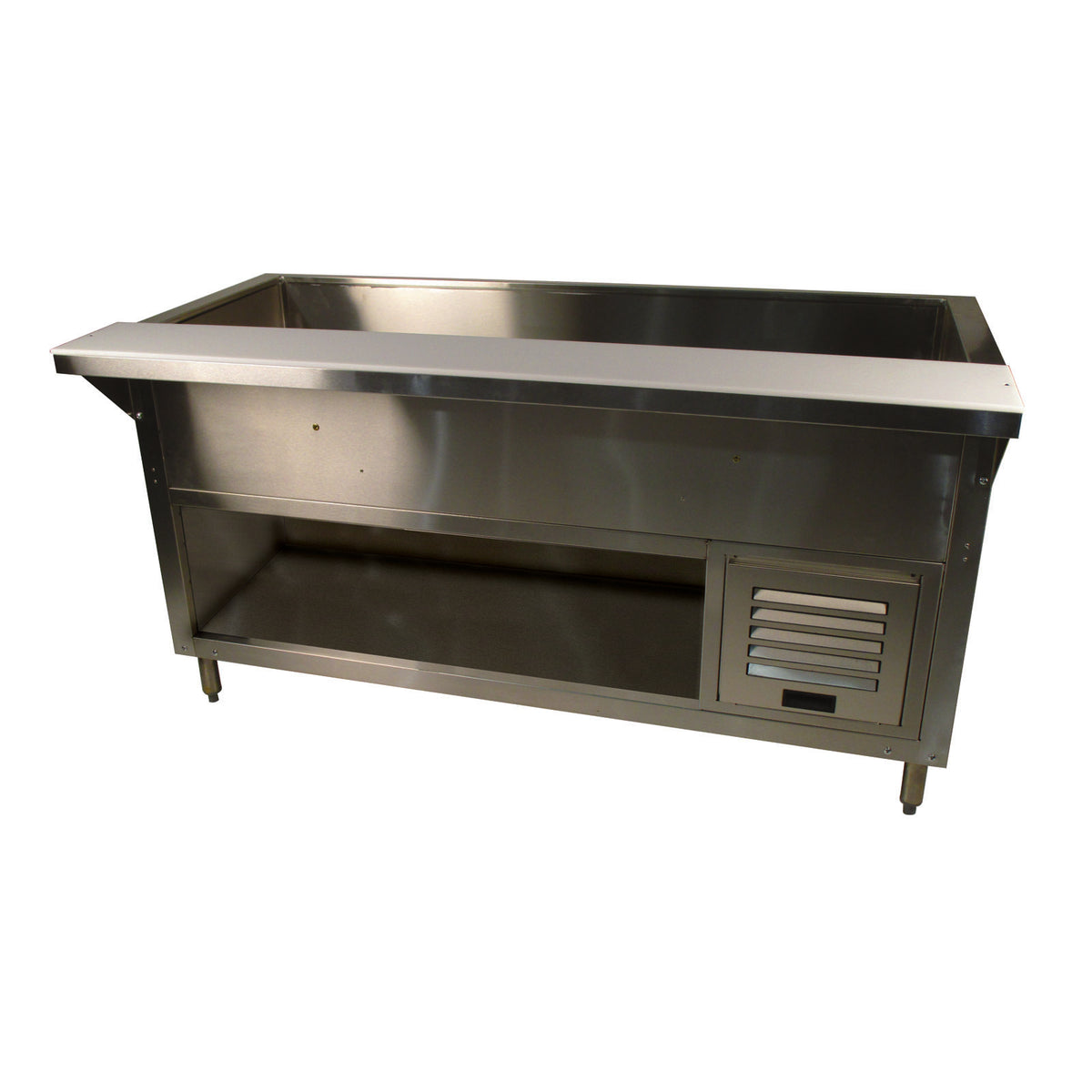

Advance Tabco MACP-3-BS — Cafeteria and Buffet Line Equipment
The Advance Tabco MACP-3-BS is offered in the configuration shown below. Overall dimensions: 47.13 in. W × 30.75 in. D × 34.13 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Refrigerated Cold Pan
- 47-1/8"W x 30-3/4"D x 34-1/8"H (overall)
- fully insulated 42-5/8"W x 20"D x 8" deep well (accommodates (3) 12" x 20" pans up to 6-1/4" deep
- with additional space below for cold air circulation)
- digital programmable thermostat
- 8"D x 3/8" thick cutting board
- enclosed front & sides with rear open storage
- stainless steel construction
- self-contained refrigeration housed in a 16 gauge galvanized under structure
- expansion valve
- 1" drain
- adjustable plastic bullet feet
- ETLus
- ETL-Sanitation
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | MACP-3-BS |
| Shipping Weight (Supplier Reference) | 256 lbs |
| Width | 47.13 in. |
| Depth | 30.75 in. |
| Height | 34.13 in. |
| Mobile or Stationary | stationary |
| Overall Width (side - side) | 43" - 48" |
| Cooling Type | refrigerated |
| Design | fully enclosed |
| Working Height | 34" |
| Base Construction | stainless steel |
| Top Construction | stainless steel |
| Certifications | ETL-Sanitation, ETLus |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features. Follow the manufacturer manual for assembly and installation.
Documents and Resources

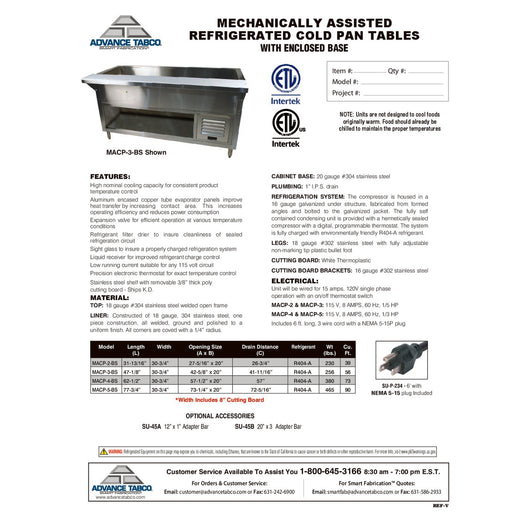

Available documents: Spec Sheet, Parts List, Owner's Manual. Open the product documents section to view or download the manufacturer PDFs.
