Description

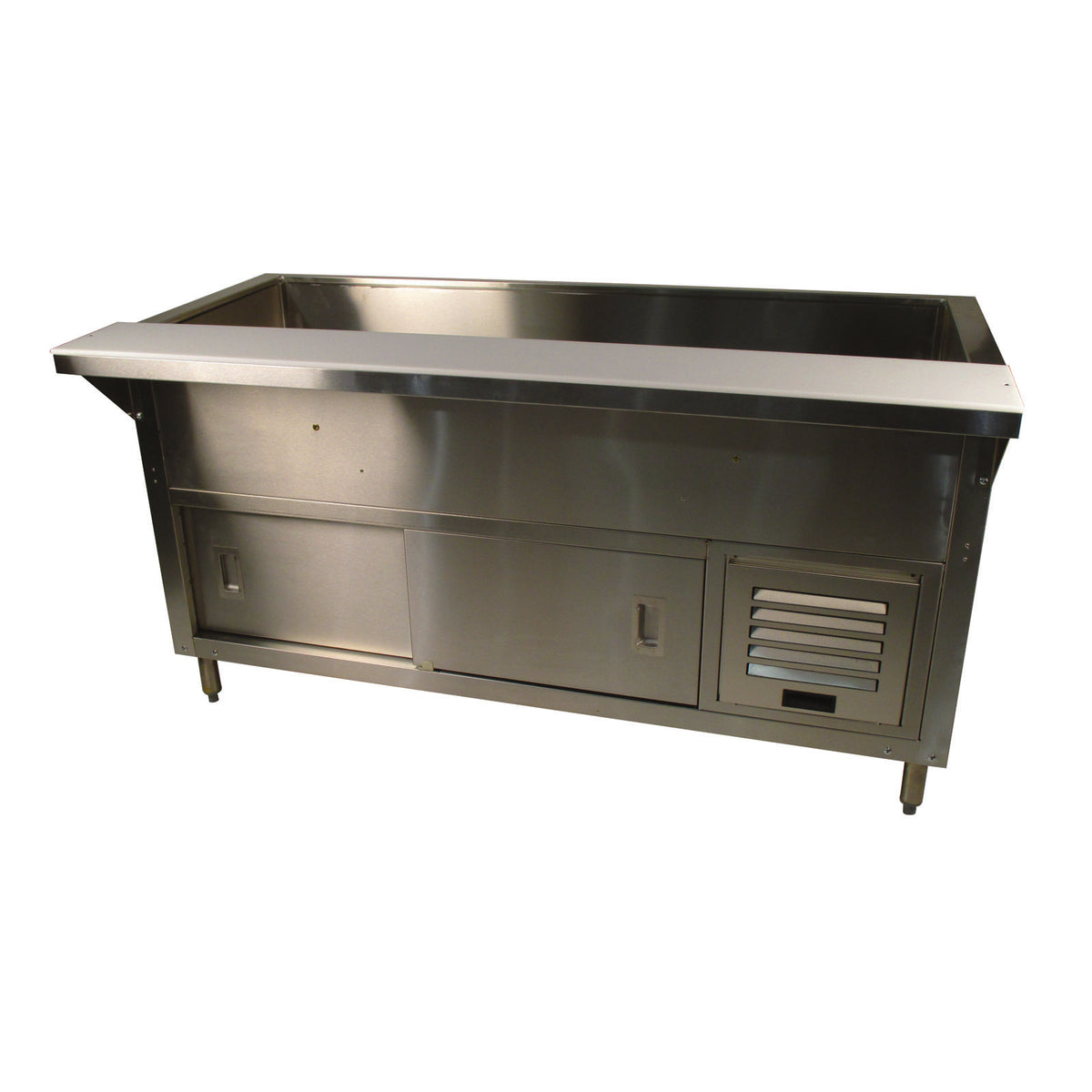

Advance Tabco MACP-4-DR — Cafeteria and Buffet Line Equipment
The Advance Tabco MACP-4-DR is offered in the configuration shown below. Overall dimensions: 62.5 in. W × 30.75 in. D × 34.13 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Fits four 12" x 20" pans in a 57‑15/16" W insulated well, 6‑1/4" deep with airflow space.
- Stainless steel base and top (18‑gauge #304) provide robust, sanitary construction, ETL‑Sanitation certified.
- Digital programmable thermostat with precision electronic control ensures consistent cold temperatures.
- Self‑contained unit uses R404‑A refrigerant, expansion valve, draws 8 A on 115 V, 1/3 HP for efficient operation.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | MACP-4-DR |
| Shipping Weight (Supplier Reference) | 420 lbs |
| Width | 62.5 in. |
| Depth | 30.75 in. |
| Height | 34.13 in. |
| Mobile or Stationary | stationary |
| Overall Width (side - side) | 61" - 66" |
| Cooling Type | refrigerated |
| Design | fully enclosed |
| Working Height | 34" |
| Base Construction | stainless steel |
| Top Construction | stainless steel |
| Certifications | ETL-Sanitation, ETLus |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features. Follow the manufacturer manual for assembly and installation.
Documents and Resources

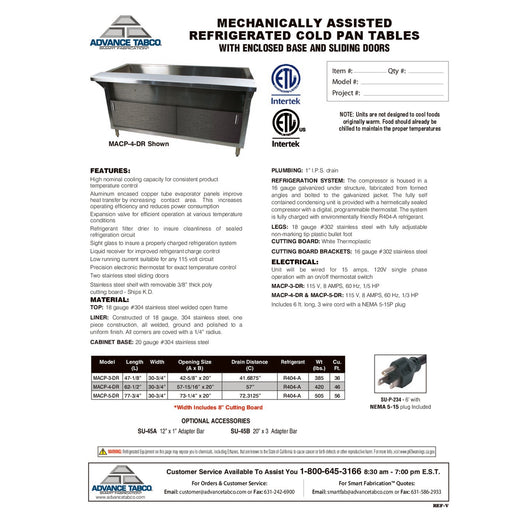

Available documents: Spec Sheet, Owner's Manual, Parts List. Open the product documents section to view or download the manufacturer PDFs.
