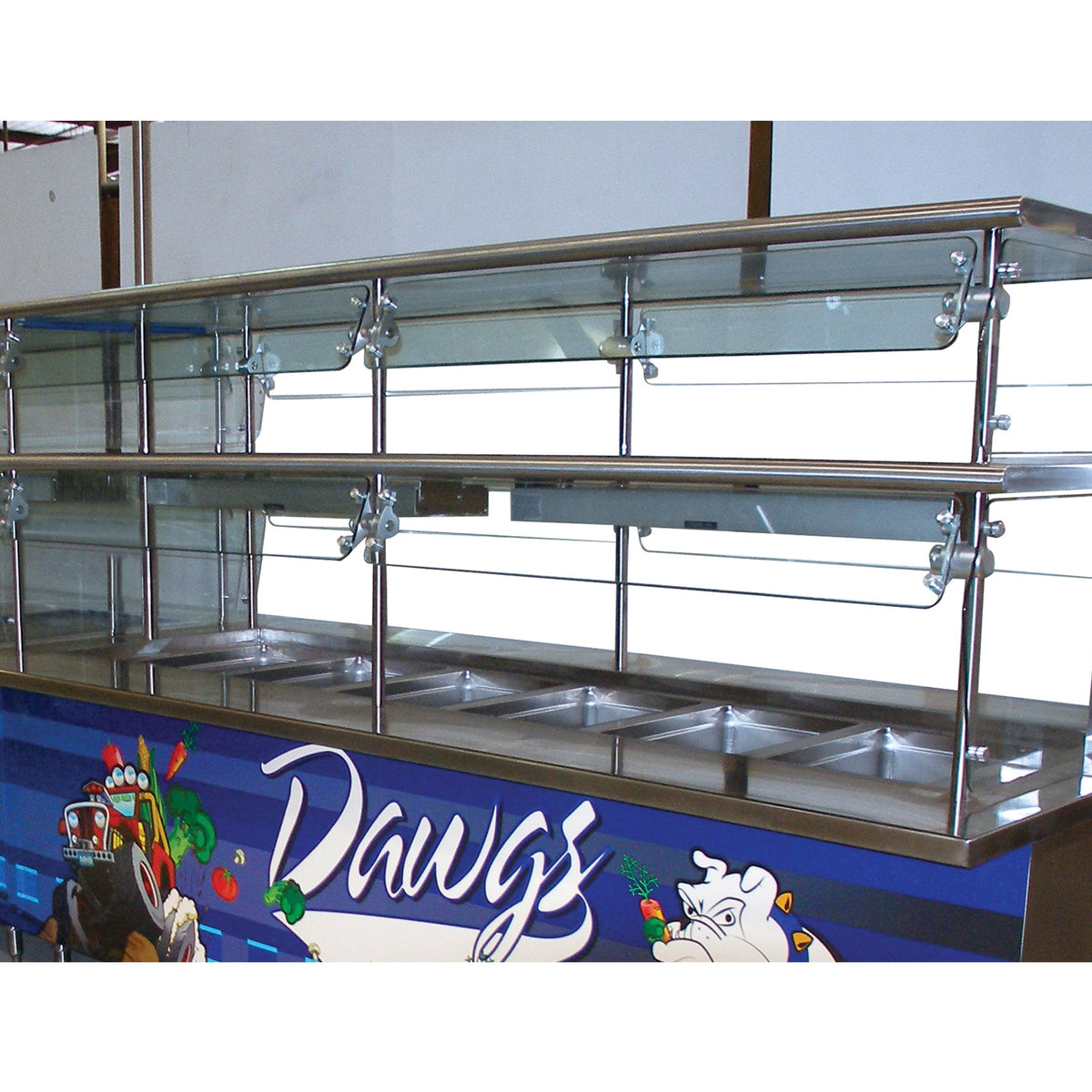

Advance Tabco NDSG-12-60 — Restaurant Sneeze Guards
The Advance Tabco NDSG-12-60 is offered in the configuration shown below. Overall dimensions: 60 in. W × 12 in. D × 34 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Dimensions: 60" wide × 12" deep × 34" high, with side panel width adjustable from 56" to 61".
- Front and side panels use 1/4" heat‑tempered glass (front can be upgraded to 3/8"), meeting NSF side‑glass requirement of 18" depth.
- Double‑tier design includes a 18‑ga. Type 430 stainless‑steel top shelf for extra storage and easy cleaning.
- Chamber Lock™ system locks the front glass at 15° intervals, allowing quick rotation without tools.
- All‑stainless‑steel frame with TIG‑welded posts, anodized aluminum lock components, and satin finish for durability and compliance with certification 29200.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | NDSG-12-60 |
| Shipping Weight (Supplier Reference) | 243 lbs |
| Width | 60 in. |
| Depth | 12 in. |
| Height | 34 in. |
| Type | single-sided |
| Service | self-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
