Description

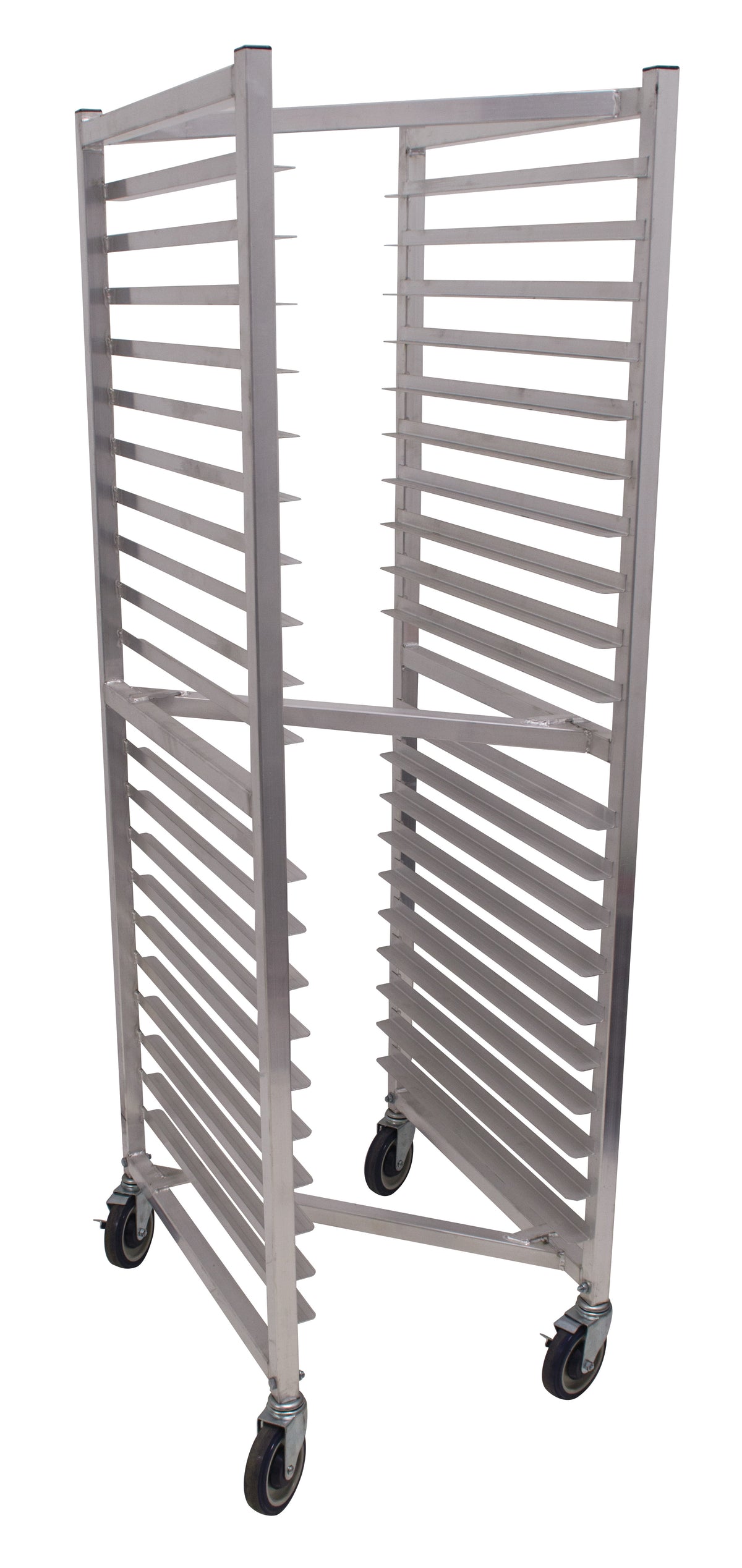

Advance Tabco NR-20 — Sheet Pan Racks
The Advance Tabco NR-20 is offered in the configuration shown below. Overall dimensions: 21 in. W × 26 in. D × 69.25 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- All-welded aluminum frame with 1" square tubing delivers lightweight strength.
- Front-loading, open-top design with open sides allows quick pan access.
- Built-in 3" center angle guides secure 18" × 26" pans or 40 half-size pans.
- Heavy-duty 5" swivel casters support up to 500 lb, enabling effortless movement.
- Overall dimensions 21" × 26" × 69¼" fit standard kitchen aisles while providing 67‑72" height range.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | NR-20 |
| Shipping Weight (Supplier Reference) | 29 lbs |
| Width | 21 in. |
| Depth | 26 in. |
| Height | 69.25 in. |
| Rack Type | sheet pan rack |
| Style | nesting |
| Rack Style | bun pan |
| Top | open top |
| Construction | aluminum |
| Loading | front loading |
| Ships | assembled / welded |
| Centers | 3 to 3-3/4" centers |
| Sides | open sides |
| Pan Capacity | 20 |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

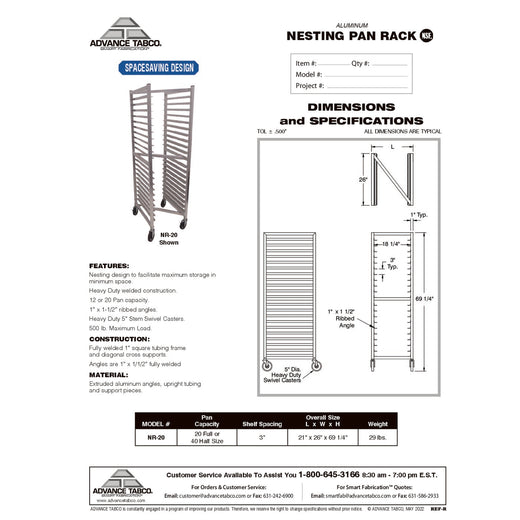

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
