Description

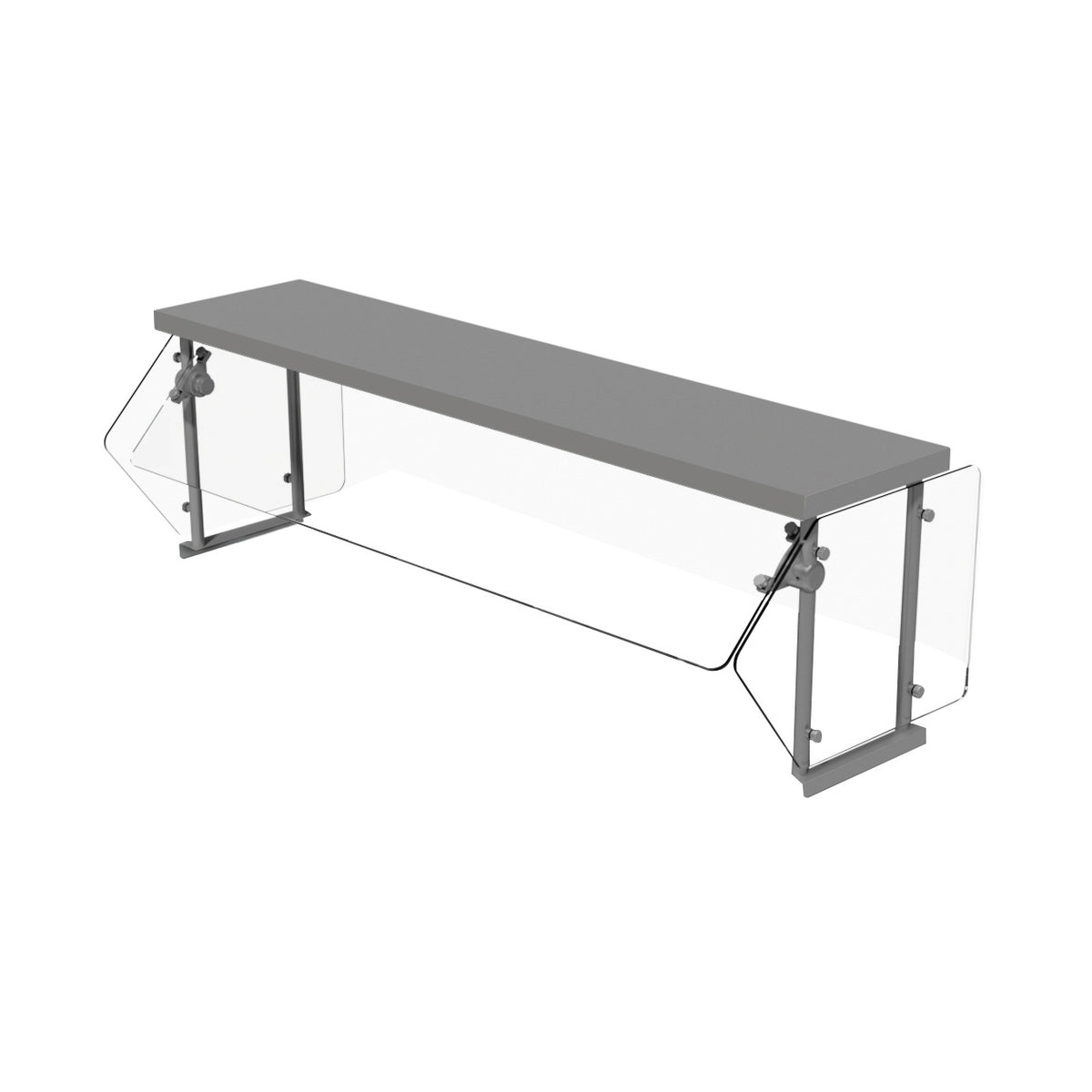

Advance Tabco NSG-15-4WELL — Restaurant Sneeze Guards
The Advance Tabco NSG-15-4WELL is offered in the configuration shown below. Overall dimensions: 64.31 in. W × 19.75 in. D × 18.75 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Dimensions: 64‑5/16" W x 19‑3/4" D x 18‑3/4" H, fits 4‑well hot or cold tables.
- Front glass 3/8" heat‑tempered, side panels 1/4" heat‑tempered, meeting NSF side‑glass width requirements.
- Chamber Lock™ rotates in 15° intervals, locking the front glass securely for quick adjustments.
- Stainless steel frame with 1" posts and a 15" wide stainless steel top shelf for durable service.
- Certified to NSF standards (certification code 29200) for food‑service safety.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | NSG-15-4WELL |
| Shipping Weight (Supplier Reference) | 186 lbs |
| Width | 64.31 in. |
| Depth | 19.75 in. |
| Height | 18.75 in. |
| Type | single-sided |
| Service | self-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
