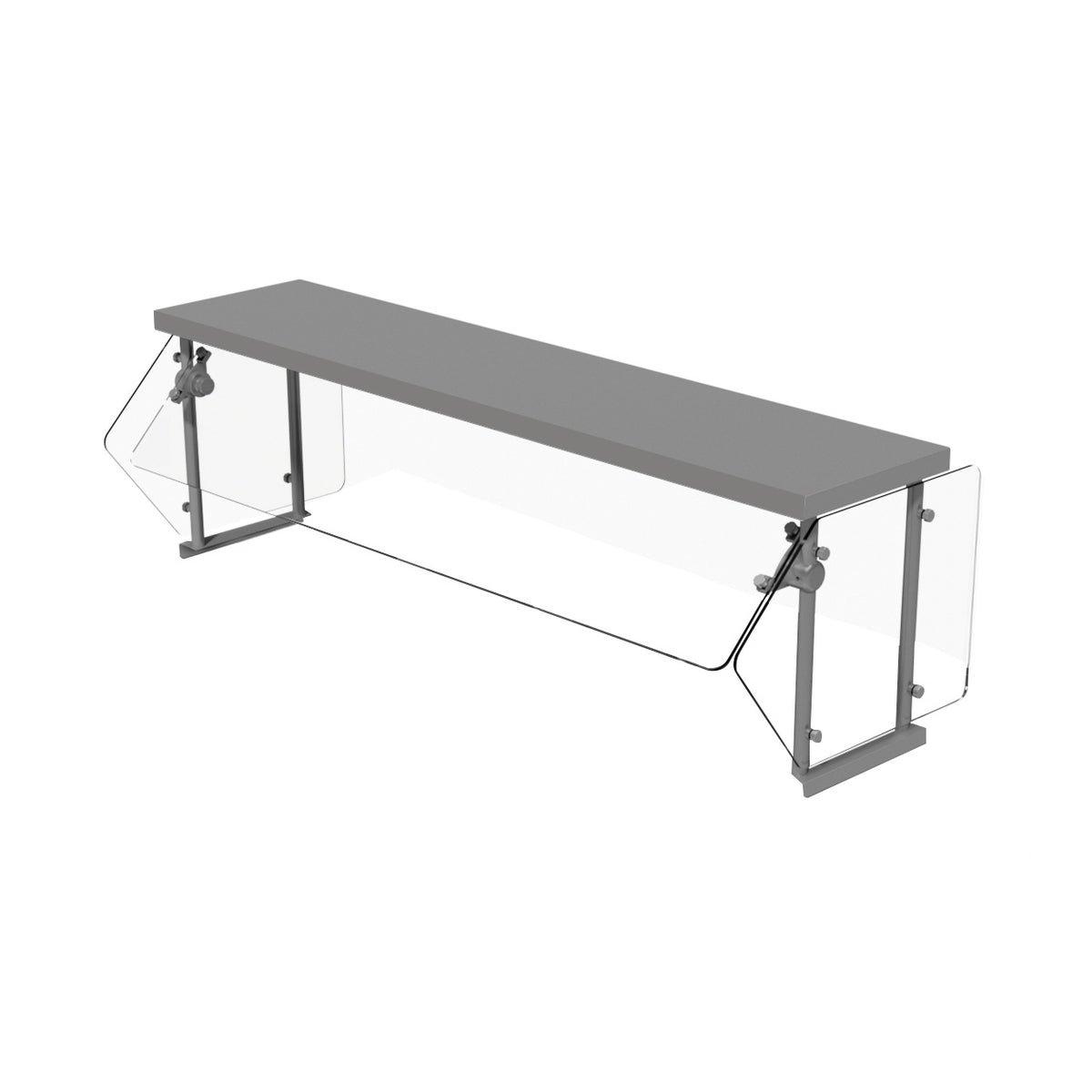

Advance Tabco NSG-15-5WELL — Restaurant Sneeze Guards
The Advance Tabco NSG-15-5WELL is offered in the configuration shown below. Overall dimensions: 79.63 in. W × 19.75 in. D × 18.75 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Adjustable 1/4" heat‑tempered front and side glass panels lock at 15° intervals for easy cleaning and NSF‑compliant sneeze protection.
- Stainless‑steel frame with 1" posts and a 15" wide stainless steel top shelf provides durable, low‑profile support.
- Chamber Lock™ aluminum rotation system fixed to upright legs enables precise 15° positioning for any 5‑well table.
- Dimensions 79‑5/8" W x 19‑3/4" D x 18‑3/4" H meet NSF standards and accommodate side panels 19‑3/4" deep.
- Certified to NSF specification 29200, ensuring food‑service safety and compliance.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | NSG-15-5WELL |
| Shipping Weight (Supplier Reference) | 215 lbs |
| Width | 79.63 in. |
| Depth | 19.75 in. |
| Height | 18.75 in. |
| Type | single-sided |
| Service | self-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

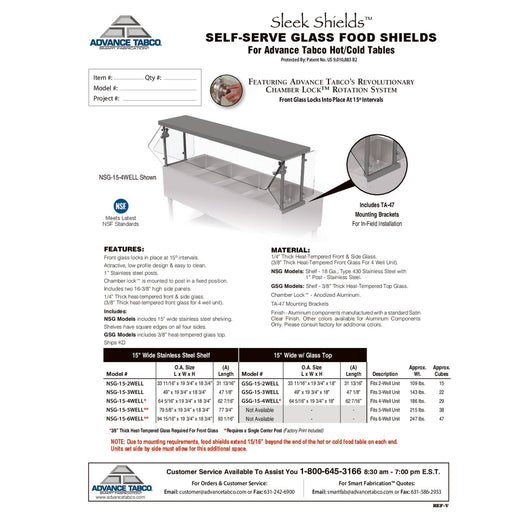

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
