Description
Advance Tabco NSGC-15-4WELL — Restaurant Sneeze Guards
The Advance Tabco NSGC-15-4WELL is offered in the configuration shown below. Overall dimensions: 64.19 in. W × 19.75 in. D × 18.75 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features

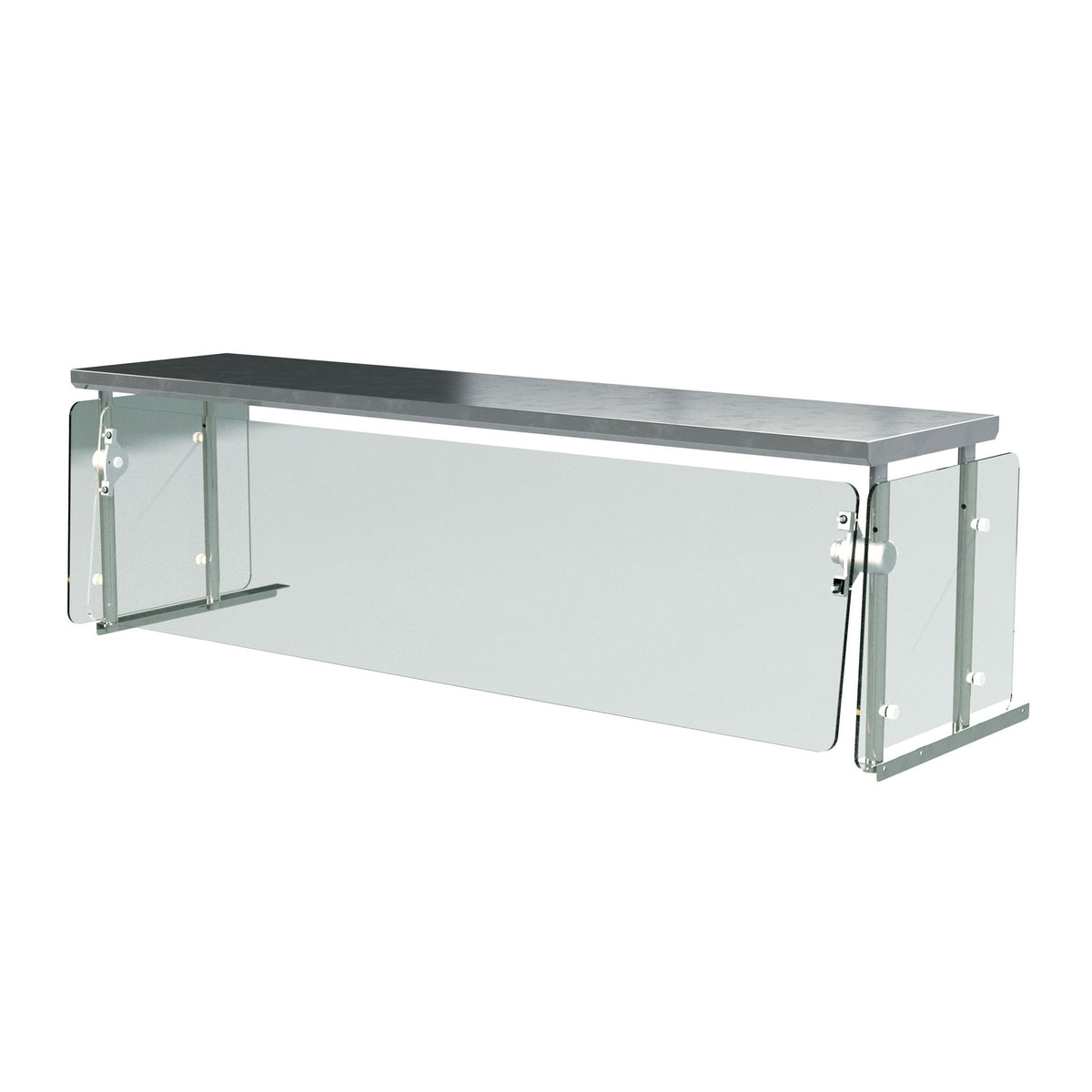

- Sleek Shield™ Food Shield
- cafeteria style with adjustable front glass
- 64-5/16"W x 19-3/4"D x 18-3/4"H (with 15" wide stainless steel top shelf)
- 3/8" thick heat tempered glass front & 1/4" side panels (side panels 19-3/4" deep to meet NSF requirements)
- equipped with Chamber Lock™ technology fixed to upright legs
- allowing rotation in 15 degree intervals for Advance Tabco (4) well hot or cold food tables) (NOTE: due to mounting requirements
- this food shield extends 15/16” beyond the end of the hot or cold food table on each end. Units set side by side must allow for this additional space)
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | NSGC-15-4WELL |
| Shipping Weight (Supplier Reference) | 232 lbs |
| Width | 64.19 in. |
| Depth | 19.75 in. |
| Height | 18.75 in. |
| Type | single-sided |
| Service | full-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
