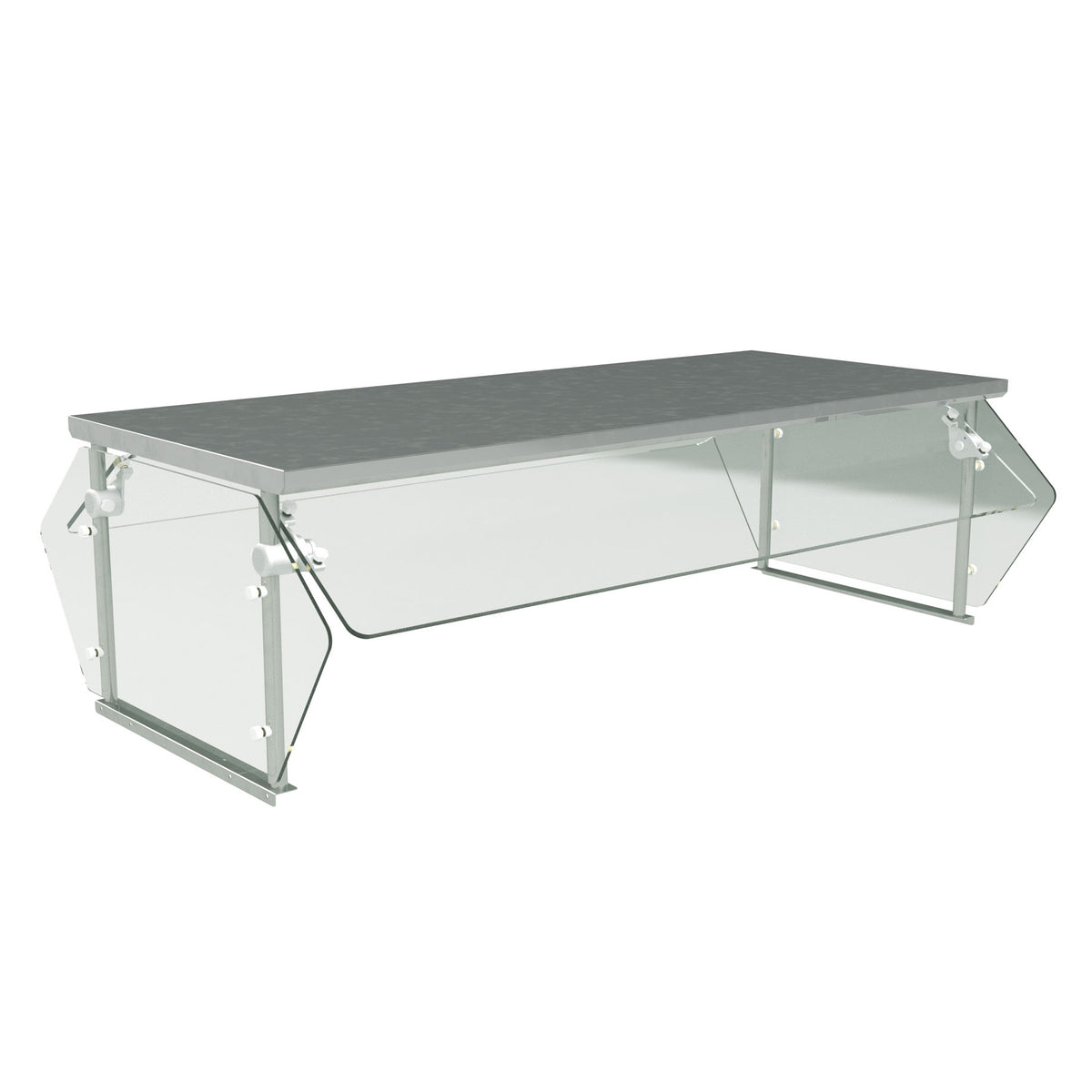

Advance Tabco NSGD-26-4WELL — Restaurant Sneeze Guards
The Advance Tabco NSGD-26-4WELL is offered in the configuration shown below. Overall dimensions: 64.31 in. W × 32.25 in. D × 18.75 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Dimensions 64‑5/16" W × 32‑1/4" D × 18‑3/4" H, fits 4‑well tables with 22 3/4" stainless steel shelf.
- Double‑sided design with 1" stainless steel posts and 1" thick frame for sturdy support.
- Front glass 3/8" heat‑tempered, side panels 1/4" heat‑tempered, meeting NSF standards.
- Chamber Lock™ rotation system locks front glass at 15° intervals for easy access.
- Includes TA‑47 mounting brackets and anodized aluminum components with satin clear finish.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | NSGD-26-4WELL |
| Shipping Weight (Supplier Reference) | 425 lbs |
| Width | 64.31 in. |
| Depth | 32.25 in. |
| Height | 18.75 in. |
| Type | double-sided |
| Service | self-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

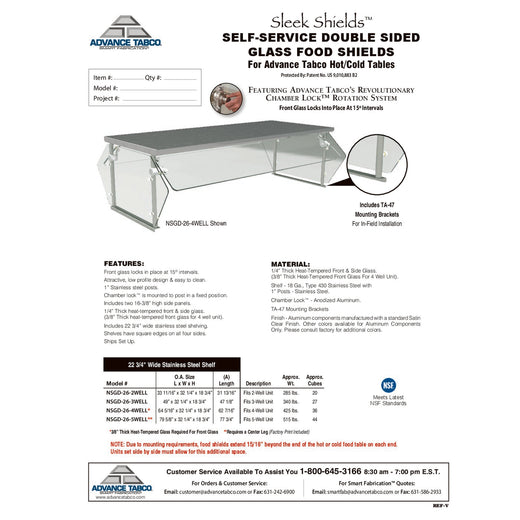

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
