Description

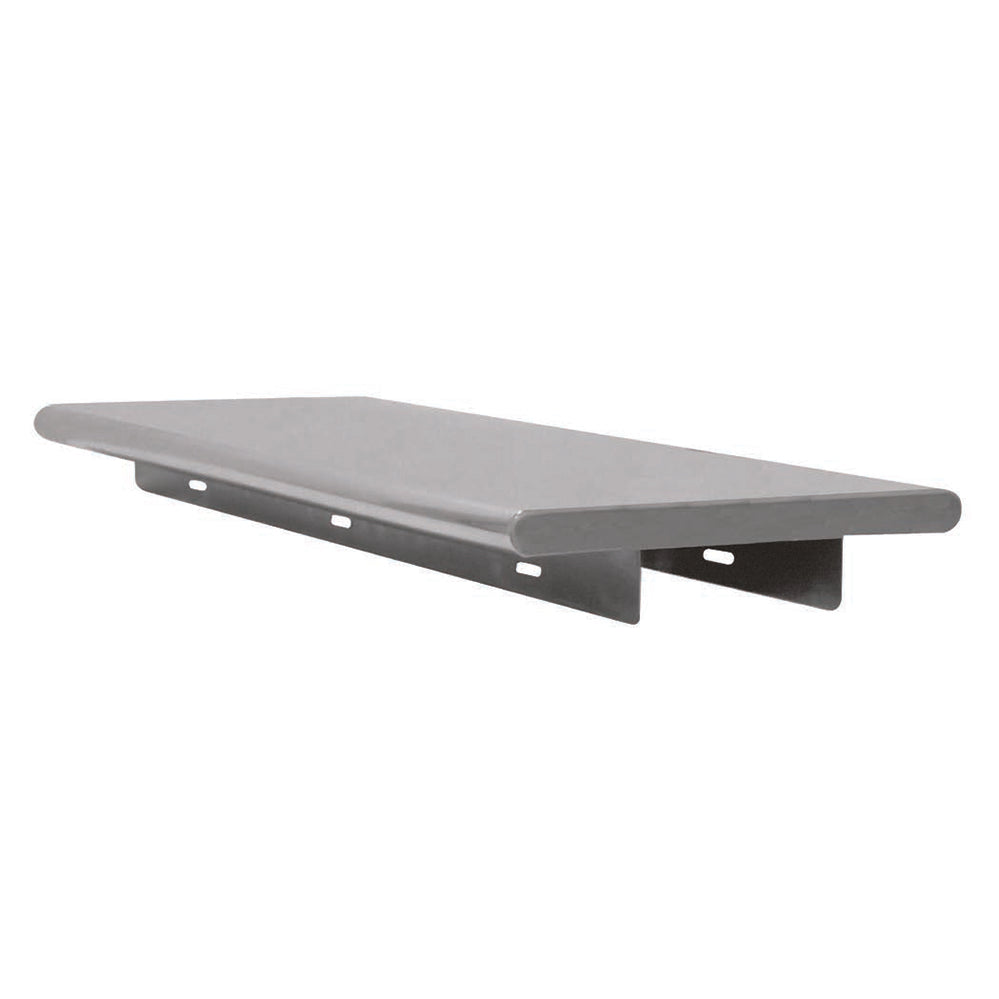

Advance Tabco PA-24-72 — Pass-Thru Shelves
The Advance Tabco PA-24-72 is offered in the configuration shown below. Overall dimensions: 72 in. W × 24 in. D × 15.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 72" overall width provides ample space for trays and platters.
- 24" depth with bull‑nose front and rear ensures smooth roll‑out and clean edges.
- Constructed from 18/430 stainless steel and TIG‑welded for corrosion resistance.
- Includes 5" × 7" stainless‑steel cantilever mounting brackets for secure wall attachment.
- Galvanized hat channel allows free positioning while maintaining structural integrity.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | PA-24-72 |
| Shipping Weight (Supplier Reference) | 85 lbs |
| Width | 72 in. |
| Depth | 24 in. |
| Height | 15.5 in. |
| Type | single |
| Construction | stainless steel |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

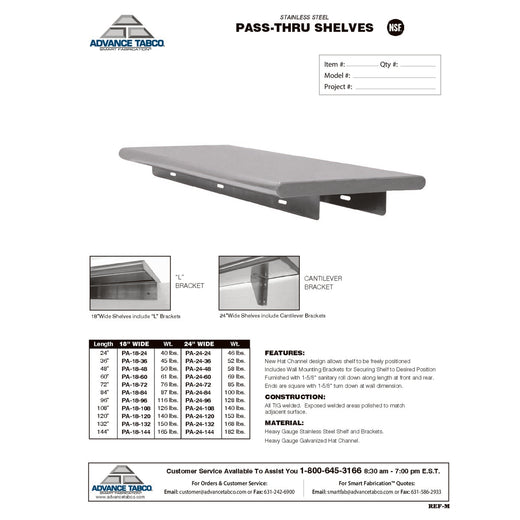

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
