Description

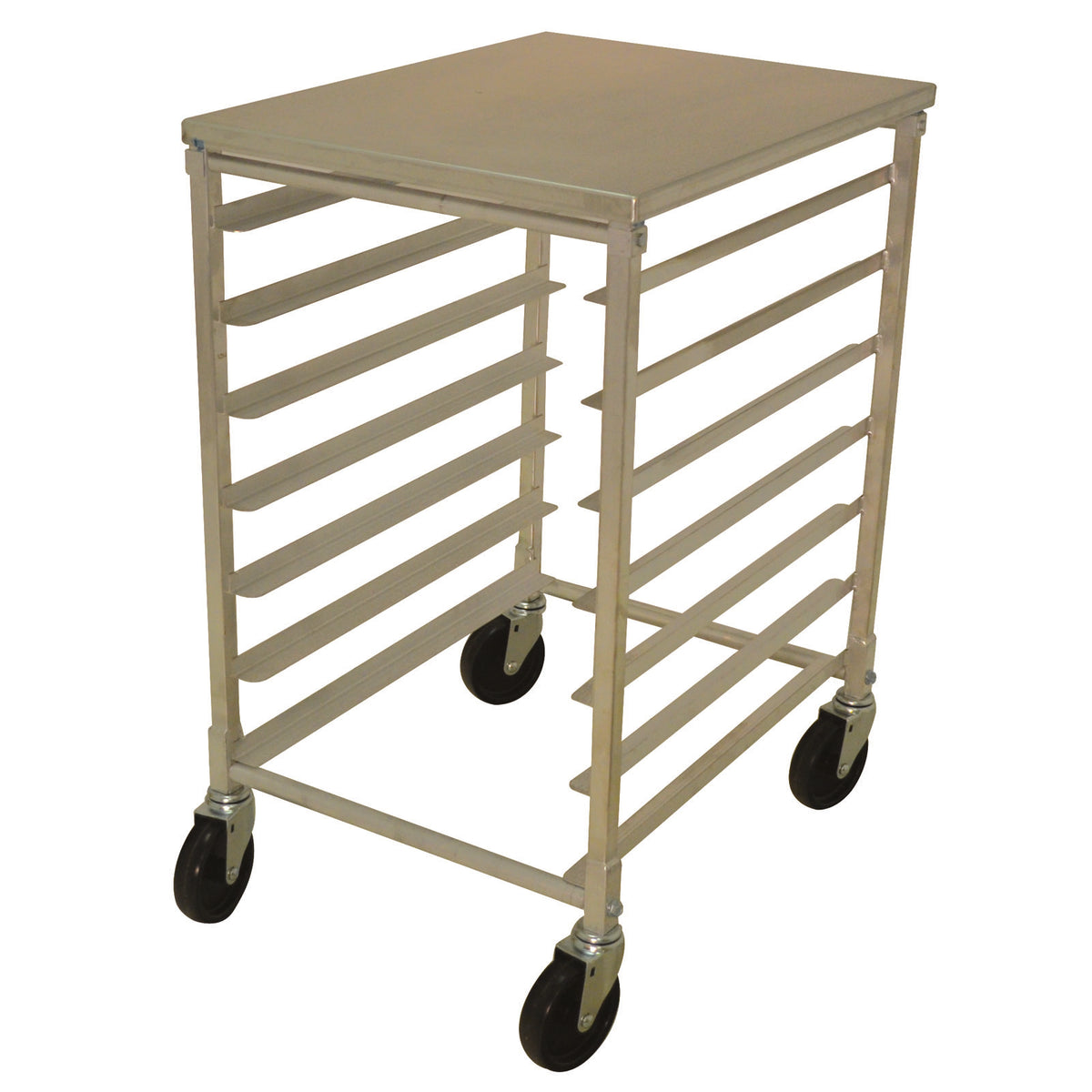

Advance Tabco PR7-4KT — Sheet Pan Racks
The Advance Tabco PR7-4KT is offered in the configuration shown below. Overall dimensions: 20.63 in. W × 26.88 in. D × 35 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Seven 18" x 26" sheet pan slides on 3-7/8" centers (top shelf spacing 2-1/8")
- 6063-T52 extruded aluminum angles, upright tubing and support pieces
- Supports 500 lb evenly distributed weight
- 1-1/2" ribbed angles
- Removable solid aluminum top doubles as a work surface
- Open sides for end loading
- 5" poly stem bolted casters
- Ships knocked down; assembly required
- Dimensions: 20-5/8"W x 26-7/8"D x 35"H
- Pan Capacity: (7) 18" x 26" sheet pans
- Shelf Spacing: 3-7/8"
- Construction: 6063-T52 extruded aluminum
- Capacity: 500 lb evenly distributed
- Weight: 28 lb
- Certification: NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | PR7-4KT |
| Shipping Weight (Supplier Reference) | 28 lbs |
| Width | 20.63 in. |
| Depth | 26.88 in. |
| Height | 35 in. |
| Rack Type | sheet pan rack |
| Style | open |
| Rack Style | bun pan |
| Top | solid top |
| Construction | aluminum |
| Loading | end loading |
| Ships | knocked down |
| Centers | 3 to 3-3/4" centers |
| Sides | open sides |
| Certifications | NSF |
| Pan Capacity | 7 |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

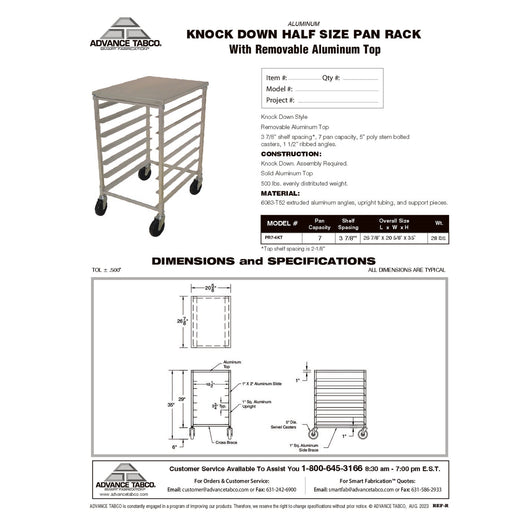

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
