Description

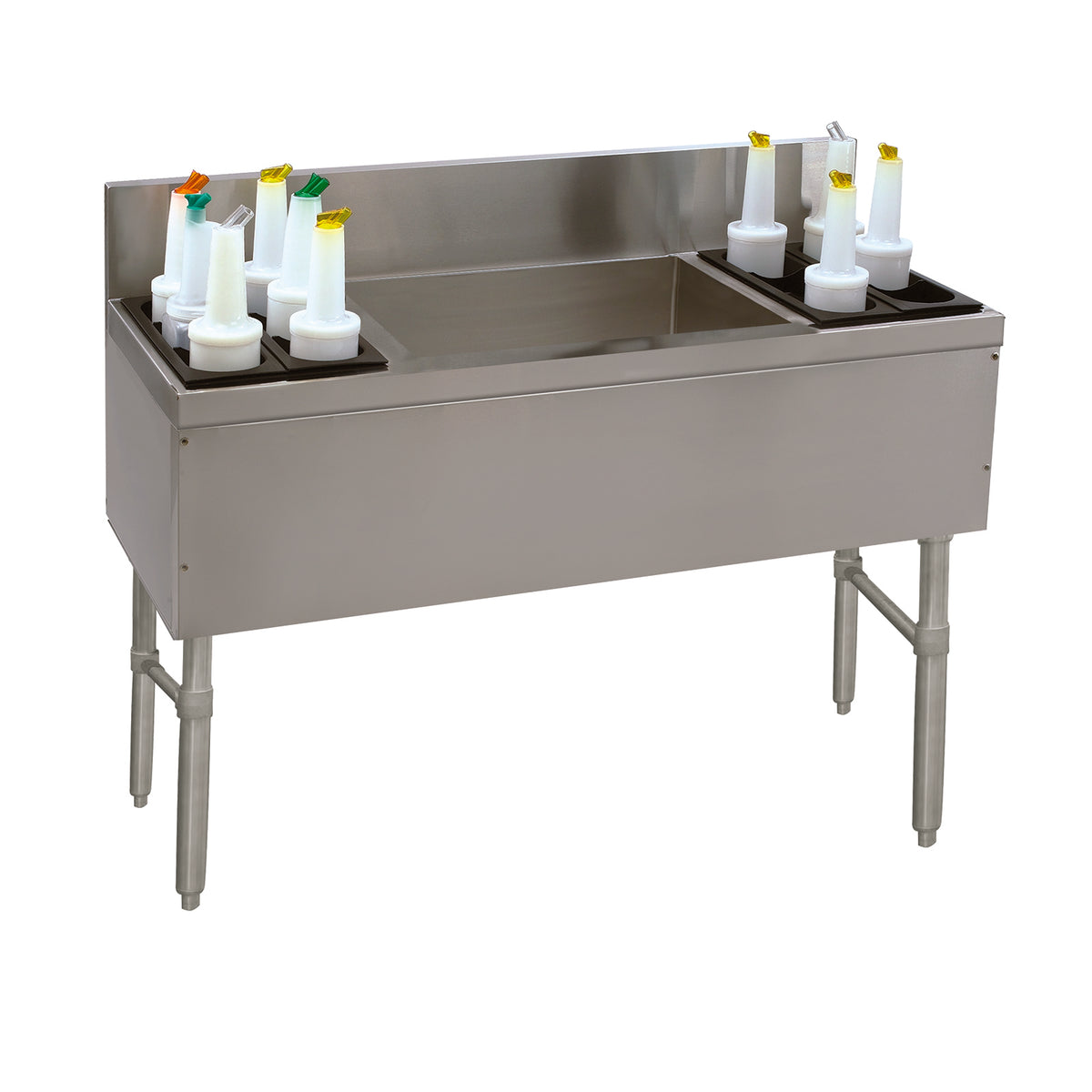

Advance Tabco PRC-19-60LR-10 — Underbar Ice Bins and Cocktail Bins
The Advance Tabco PRC-19-60LR-10 is offered in the configuration shown below. Overall dimensions: 60 in. W × 20 in. D × 36 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Prestige Ice Chest
- with 10-circuit cast aluminum cold plate
- 60"W x 20"D x 36"H
- 7"H backsplash
- 10-1/6" deep deep bins
- 32/108/32 lbs bin capacities
- bottle storage rack on left & right
- 20 gauge 300 series stainless steel construction with foam insulation
- stainless steel legs & adjustable bullet feet
- soda chase provision in top of backsplash
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | PRC-19-60LR-10 |
| Shipping Weight (Supplier Reference) | 190 lbs |
| Width | 60 in. |
| Depth | 20 in. |
| Height | 36 in. |
| Ice Bins and Cocktail Bins Type | ice bin/cocktail station-bottle well bin |
| Ice Capacity | 100 - 149 lbs. |
| Ice Capacity (approximate) | 105 lbs. |
| Construction | stainless steel |
| Width (side - side) OA | 55" - 60" |
| Depth (front - back) OA | 20" - 21" |
| Components (left to right) | bottle well, ice bin, bottle well |
| Cold Plate | (10) circuit |
| Splash | 7" |
| Bin Depth | 10" deep ice bin |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet, Parts List. Open the product documents section to view or download the manufacturer PDFs.
