Description

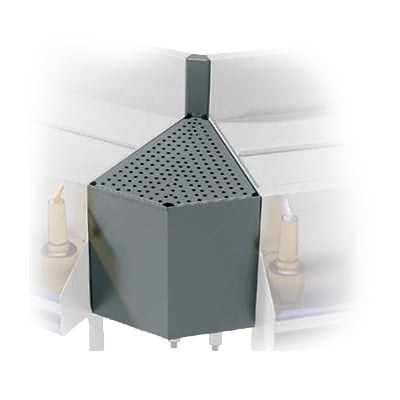

Advance Tabco PRF-20-45OC — Underbar Modular Add-On Components
The Advance Tabco PRF-20-45OC is offered in the configuration shown below. Overall dimensions: 20 in. W × 16.38 in. D × 21.63 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Prestige corner filler
- outside corner
- 45Á¢Â°
- fits 20" deep left & 20" deep right units
- includes: removable perforated drainboard top with 1" drain (bolts to adjoining units
- no legs)
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | PRF-20-45OC |
| Shipping Weight (Supplier Reference) | 82 lbs |
| Width | 20 in. |
| Depth | 16.38 in. |
| Height | 21.63 in. |
| Underbar Component Type | angle filler boards |
| Type | no legs |
| Design | outside/front corner angle |
| Top | drainboard top |
| Construction | stainless steel construction |
| Depth (front - back) OA | 20" - 23" |
| Splash | 7" |
| Corner Fill Angle (degree) | 45° |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

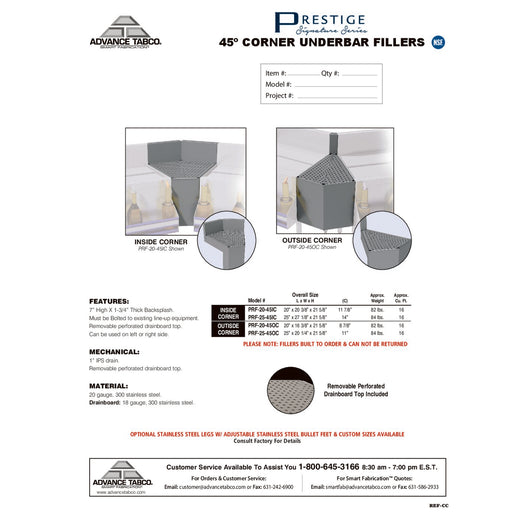

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
