Advance Tabco PRFD-3535 — Underbar Modular Add-On Components
The Advance Tabco PRFD-3535 is offered in the configuration shown below. Overall dimensions: 35 in. W × 35 in. D × 36 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Prestige corner filler
- 90Á¢Â°
- fits 35" deep left & 35" deep right units
- 7"H backsplash
- removable perforated 18/300 stainless steel drainboard top with 1" drain
- stainless steel legs with stainless steel adjustable bullet feet
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | PRFD-3535 |
| Shipping Weight (Supplier Reference) | 90 lbs |
| Width | 35 in. |
| Depth | 35 in. |
| Height | 36 in. |
| Underbar Component Type | angle filler boards |
| Type | free standing |
| Design | inside/rear full corner |
| Top | drainboard top |
| Construction | stainless steel construction |
| Width (side - side) OA | 31" - 36" |
| Depth (front - back) OA | 28" - 35" |
| Splash | 7" |
| Corner Fill Angle (degree) | 90° |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

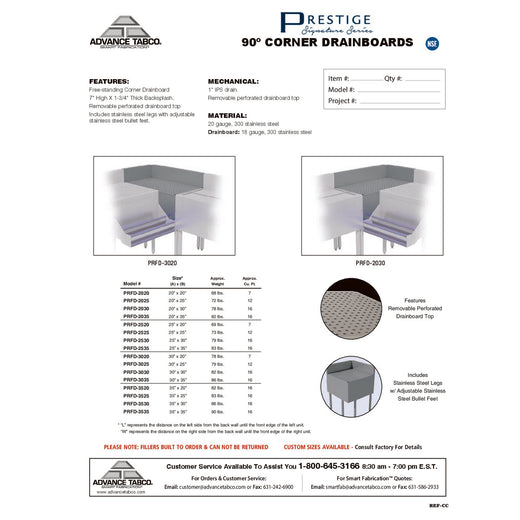

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
