Description

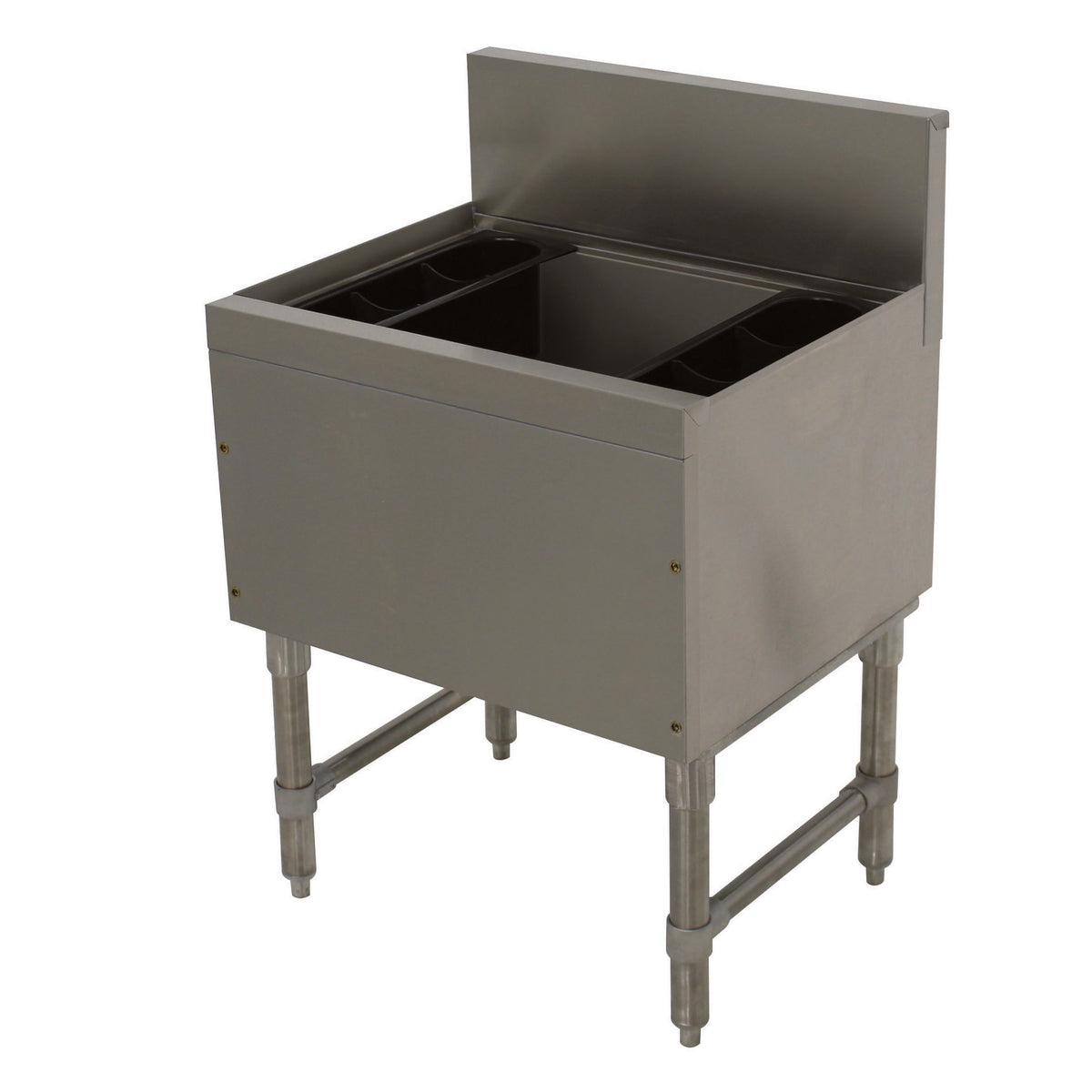

Advance Tabco PRI-19-36-10 — Underbar Ice Bins and Cocktail Bins
The Advance Tabco PRI-19-36-10 is offered in the configuration shown below. Overall dimensions: 36 in. W × 20 in. D × 36 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Prestige Ice Chest
- 36" wide
- with 10-circuit cold plate
- stainless steel construction with foam insulation
- 7" backsplash
- 1/2" drain
- 20" front-to-back
- 11" deep bin
- 108 lbs ice capacity
- soda chase provision in top of backsplash
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | PRI-19-36-10 |
| Shipping Weight (Supplier Reference) | 145 lbs |
| Width | 36 in. |
| Depth | 20 in. |
| Height | 36 in. |
| Ice Bins and Cocktail Bins Type | ice bin/cocktail unit |
| Ice Capacity | 100 - 149 lbs. |
| Ice Capacity (approximate) | 108 lbs. |
| Construction | stainless steel |
| Width (side - side) OA | 31" - 36" |
| Depth (front - back) OA | 20" - 21" |
| Cold Plate | (10) circuit |
| Splash | 7" |
| Bin Depth | 11" deep ice bin |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
