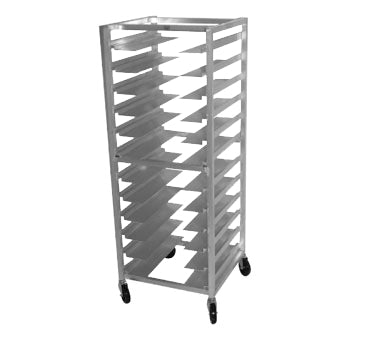

Advance Tabco UR12 — Sheet Pan Racks
The Advance Tabco UR12 is offered in the configuration shown below. Overall dimensions: 26 in. W × 26 in. D × 69.25 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- All‑welded 6063‑T52 aluminum frame weighs 100 lb and resists corrosion.
- Fixed 5" center slides hold 12 pans, with front and rear loading for quick access.
- 5" stem bolted swivel casters provide smooth mobility on kitchen floors.
- Dimensions 26" × 26" × 69¼" fit standard aisles while delivering full‑height storage.
- Open sides and six cross supports simplify pan removal and cleaning.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | UR12 |
| Shipping Weight (Supplier Reference) | 100 lbs |
| Width | 26 in. |
| Depth | 26 in. |
| Height | 69.25 in. |
| Rack Type | sheet pan rack |
| Style | open |
| Rack Style | universal |
| Construction | aluminum |
| Slides | fixed slides |
| Slide Capacity | 12 pair |
| Loading | end loading |
| Ships | assembled |
| Centers | 5" |
| Pan Capacity | 12 |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

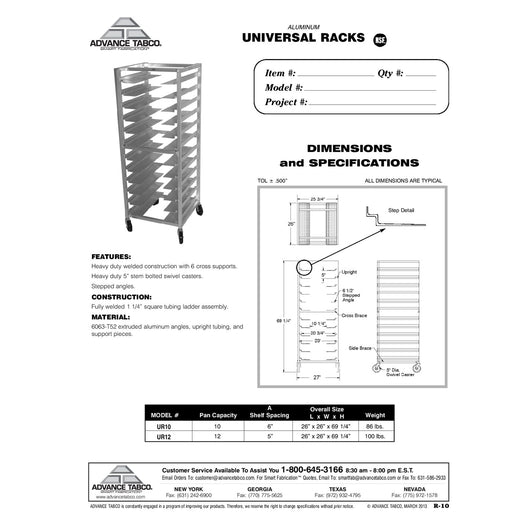

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
