Description

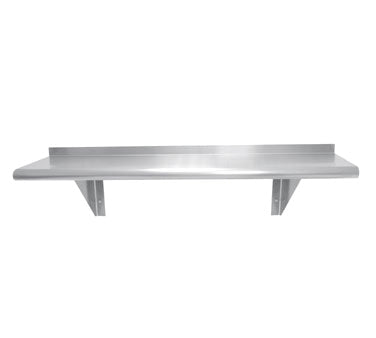

Advance Tabco WS-18-24-16 — Wall-Mounted Shelves
The Advance Tabco WS-18-24-16 is offered in the configuration shown below. Overall dimensions: 24 in. W × 18 in. D × 16.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 24" × 18" size with 1‑5/8" bullnose front and 1‑1/2" rear turn‑up edge.
- Made of 16 gauge 304 stainless steel, satin finish, NSF certified.
- Wall‑mounted via adjustable brackets that line up with studs.
- Solid single‑bar construction offers a sturdy platform for plates and prep tools.
- Load capacity of 20 lb per sq ft fits typical restaurant storage demands.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | WS-18-24-16 |
| Shipping Weight (Supplier Reference) | 14 lbs |
| Width | 24 in. |
| Depth | 18 in. |
| Height | 16.5 in. |
| Shelf Type | wall mounted shelf |
| Shelf Style | solid |
| Construction | stainless steel |
| Finish | satin |
| Gauge | 16 gauge |
| Mount | wall mounted |
| Certifications | NSF |
| Stainless Steel Type | 16/304 stainless steel |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
