Description

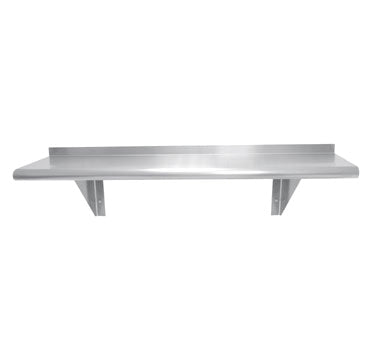

Advance Tabco WS-18-36-16 — Wall-Mounted Shelves
The Advance Tabco WS-18-36-16 is offered in the configuration shown below. Overall dimensions: 36 in. W × 18 in. D × 16.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Dimensions: 36" wide x 18" deep with a 1‑5/8" bullnose front edge and 1‑1/2" rear turn‑up for safe handling.
- Construction: 16‑gauge 304 stainless steel with a satin finish, NSF‑listed for food‑service environments.
- Load Capacity: Supports up to 20 lb per square foot when weight is evenly distributed.
- Mounting: Wall‑mounted using adjustable brackets that align with studs; larger units include three brackets.
- Certification: NSF certified and meets specification 29200 for commercial use.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | WS-18-36-16 |
| Shipping Weight (Supplier Reference) | 21 lbs |
| Width | 36 in. |
| Depth | 18 in. |
| Height | 16.5 in. |
| Shelf Type | wall mounted shelf |
| Shelf Style | solid |
| Construction | stainless steel |
| Finish | satin |
| Gauge | 16 gauge |
| Mount | wall mounted |
| Certifications | NSF |
| Stainless Steel Type | 16/304 stainless steel |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
