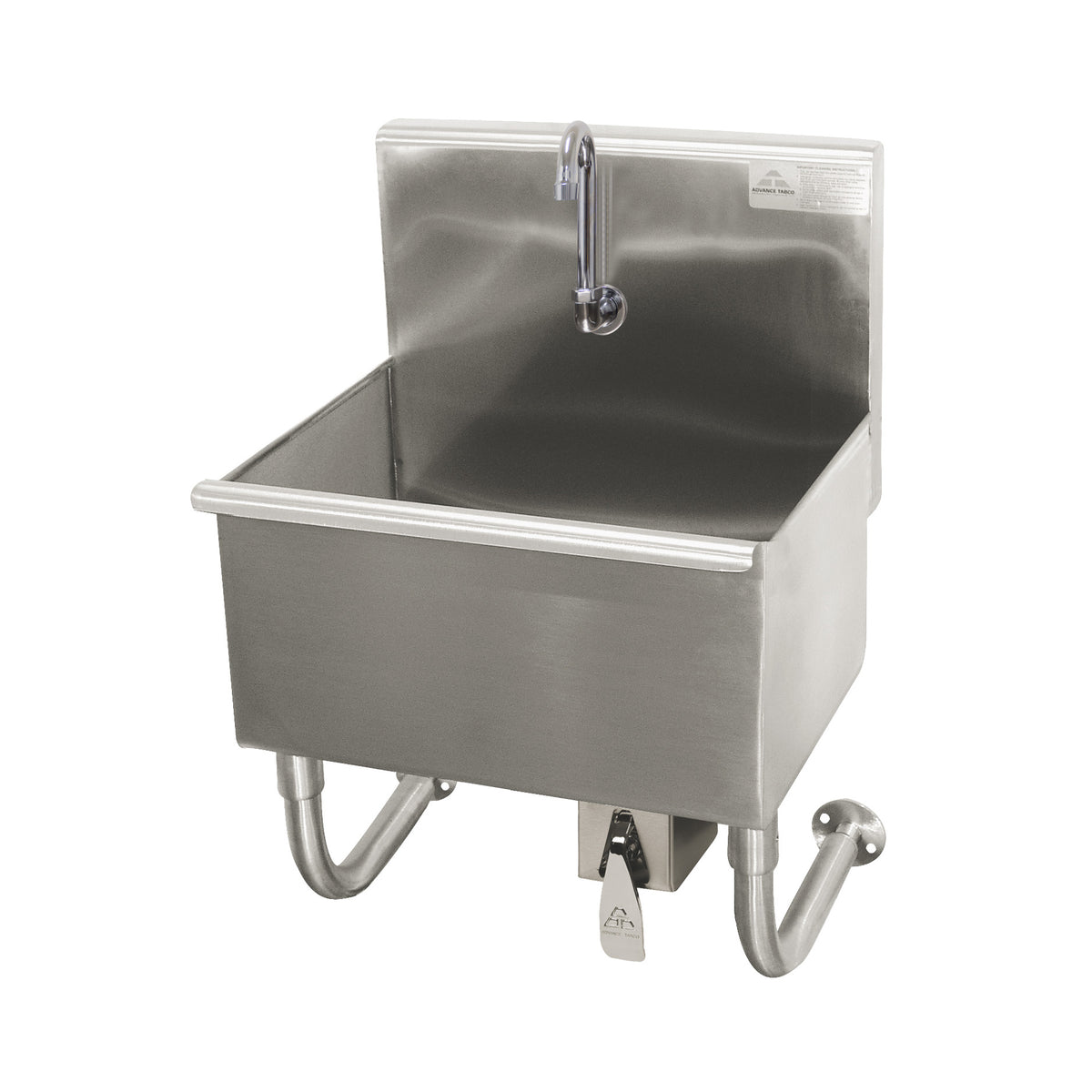

Advance Tabco WSS-16-25KV — Commercial Hand Wash Sinks
The Advance Tabco WSS-16-25KV is offered in the configuration shown below. Overall dimensions: 22 in. W × 19.5 in. D × 28.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Service Sink
- splash mount faucet provision
- wall mounted
- with knee valve
- 22"W x 19-1/2"D x 28-1/2"H OA
- 22" wide x 16" front-to-back x 8" deep bowl
- 8-1/2"H backsplash
- 16 gauge 304 stainless steel
- single faucet hole
- gooseneck spout
- tubular wall brackets
- 16 gauge 304 stainless steel
- includes 3-1/2" basket drain
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | WSS-16-25KV |
| Shipping Weight (Supplier Reference) | 60 lbs |
| Width | 22 in. |
| Depth | 19.5 in. |
| Height | 28.5 in. |
| Style | wall mounted |
| Backsplash | back (only) |
| Dispenser | without dispenser |
| Valve | single knee valve |
| Gauge | 16 gauge |
| Bowl Width (left to right) | 20" - 29" |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 8" deep |
| Faucet | faucet not included |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

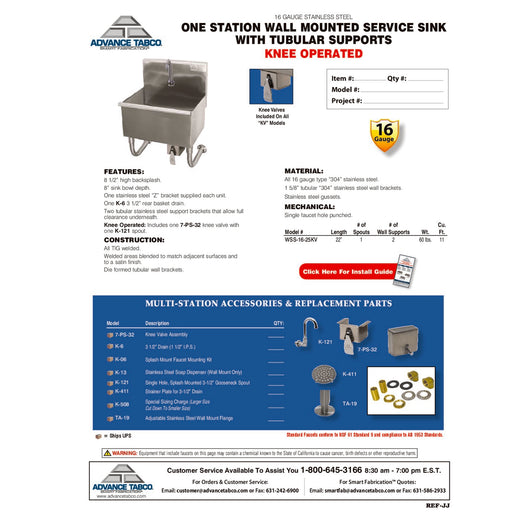

Available documents: Spec Sheet, Installation & Operation, Parts List. Open the product documents section to view or download the manufacturer PDFs.
