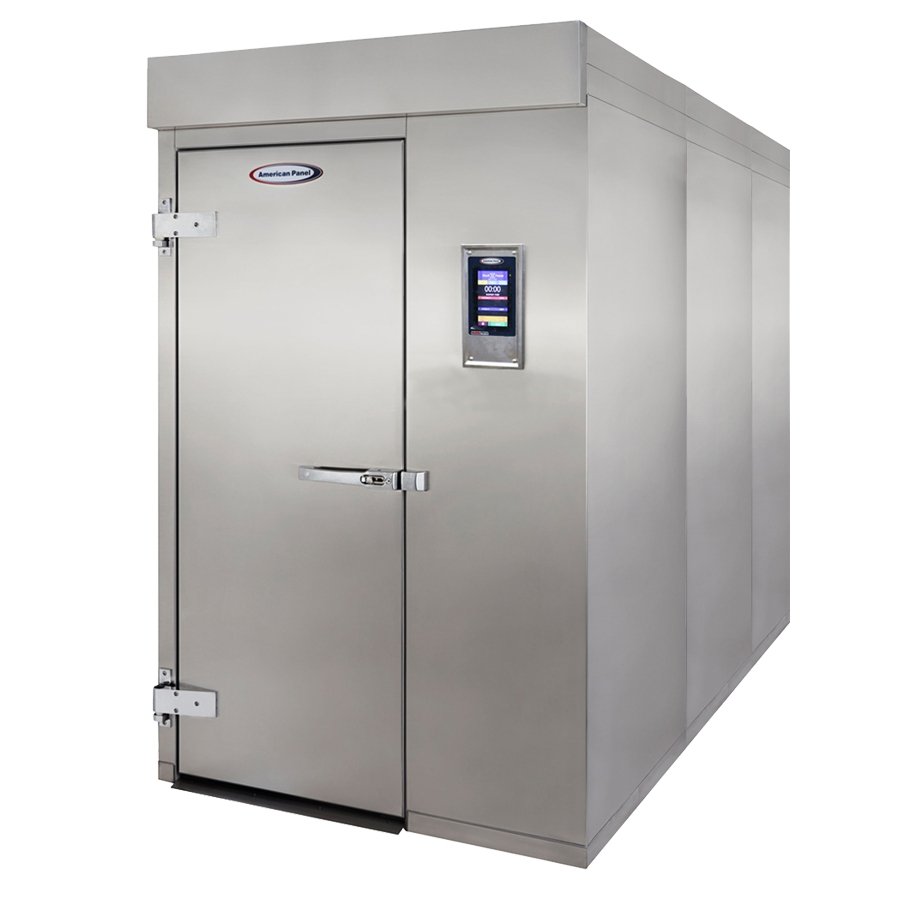

American Panel AP20BCF-3T Remote Roll-In Blast Chiller / Shock Freezer
The American Panel AP20BCF-3T is a HURRiCHiLL remote roll-in blast chiller / shock freezer for commercial batch cooling and freezing. Match its roll-in loading arrangement to the pans, racks and production batches used in your kitchen.
This configuration requires a separately selected remote condensing system. Size the system to the applicable manufacturer refrigeration requirements and plan the refrigerant piping, utilities and field installation before ordering. Cabinet electrical requirements do not describe the complete remote refrigeration installation.
The manufacturer publishes a chilling rating of 600 lb from 160°F to 38°F in 90 minutes. An additional published cycle is 690 lb from 160°F to 38°F in 120 minutes.
For shock freezing, the published rating is 360 lb from 160°F to 0°F in 240 minutes.
These are rated performance conditions. Food density, moisture, starting temperature, portion size, container depth and the way a batch is loaded affect the time needed to cool the food core. Use the manufacturer operating instructions to select cycles and position the product probe.

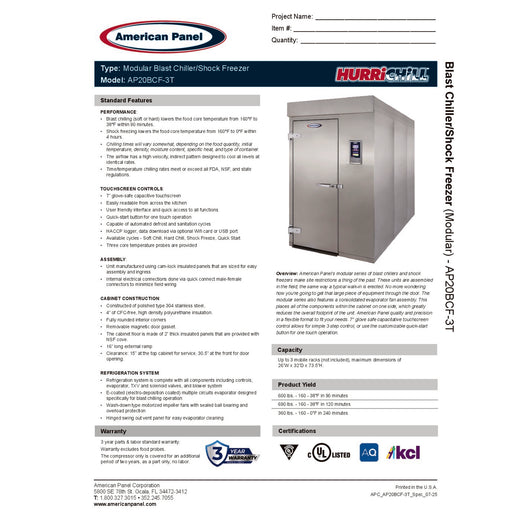

Check rack height, depth, width and door clearance against the model drawing. The listed rack capacity does not establish that racks or pans are supplied. Specify compatible mobile racks and accessories separately when required.
Technical specifications
| Manufacturer | American Panel |
|---|---|
| Model / ordering code | AP20BCF-3T |
| Width | 51 in. |
| Depth | 120 in. |
| Height | 88 in. |
| Installation Type | free standing |
| Type | Blast Chiller / Freezer |
| Style | Roll-In |
| Refrigeration | remote (refrigeration not included) |
| Rack/Trolley Capacity | 3 |
| Chill Capacity (lbs) | 600 lb |
| Freeze Capacity (lbs) | 360 lb |
| Rated Chill Cycle | 600 lb from 160°F to 38°F in 90 minutes |
| Alternative Chill Rating | 690 lb from 160°F to 38°F in 120 minutes |
| Rated Freeze Cycle | 360 lb from 160°F to 0°F in 240 minutes |
| Electrical Supply | 208 V / 60 Hz / 1 phase |
| Cabinet Current | 22.7 A |
Installation and purchasing considerations
Verify the delivery route, assembled dimensions, condenser clearances and utility access. For modular or roll-in installations, also check panel assembly space, the rack route and the floor transition. Use the applicable manufacturer drawing and installation instructions for final site planning.
Frequently asked questions
What does the published batch capacity mean?
It is a rating for the stated food temperature change and cycle time. Match the actual food load and containers to the operating instructions, and verify the food core temperature during use.
Are racks and pans included?
Confirm the supplied accessory package for this ordering code. Pan or rack capacity alone does not establish that the corresponding containers or mobile racks are included.
