Description

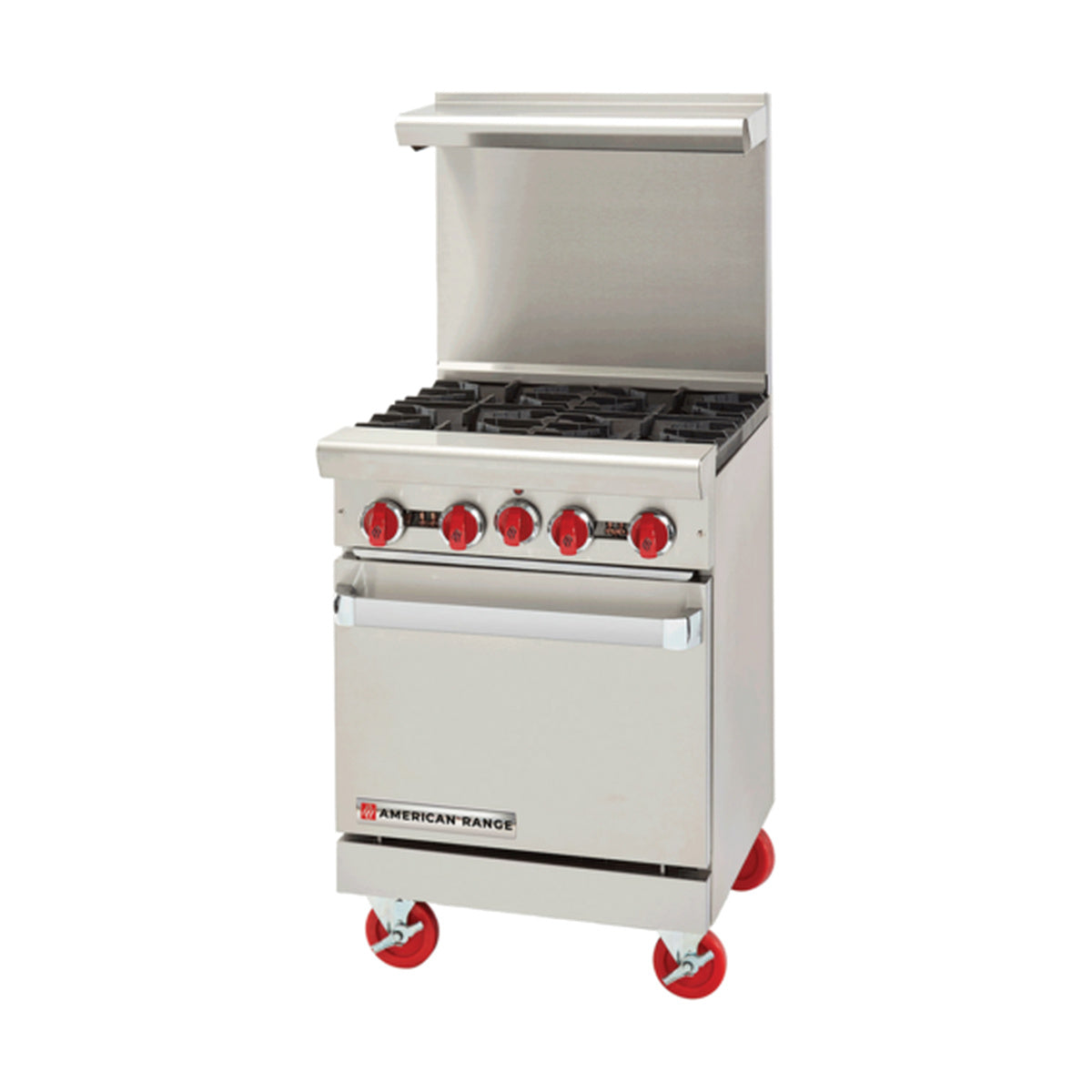

The American Range AR-4-SB Restaurant Range Series
Why Use American Range Restaurant Range?
The Heavy Duty Restaurant Range Series by American Range was designed for continuous rugged use and performance. All the latest technology is incorporated to give you the best value for your money. You need power? American Range give it to you with 32,000 BTU/hr. open burners, and 20,000 BTU/hr. griddle burners. Something you normally see with institutional series ranges.
High Quality
All Stainless Steel exterior is a standard feature for longevity and easy cleaning. Quality, dependability and customer satisfaction make American Range the ultimate choice.
Open Burners
- Heavy duty sectioned cast iron top grates.
- Two piece lift-off easy clean burners.
- Rated at 32,000 BTU/hr. each.
- One standing pilot for each burner, for instant ignition.
- Removable full-width drip pan.
American Range AR-4-SB Features
- All Stainless Steel front, sides, high shelf & riser.
- Heavy gauge welded frame construction.
- 6” Stainless Steel heavy duty landing ledge.
- 12” x 12” sectioned cast iron top grates.
- 32,000 BTU/hr. lift-off open burners.
- Porcelainized oven interior.
- One chrome plated rack per oven.
- 100% safety oven pilot.
- 6” chrome plated steel legs.
- Optional Casters available.
- Cavity depth will accommodate full size sheet pan, front to back.
- One year limited warranty, parts and labor.
Technical specifications
Specifications
| Manufacturer | American Range |
|---|---|
| Model Number | AR-4-SB |
| Weight | 260 lbs |
| Width | 24 |
| Depth | 32.25 |
| Height | 56 |
| Installation Type | free standing |
| Range Type | standard duty/restaurant range |
| Number of Burners | 4 burners |
| Base Type | cabinet/storage base |
| Control Type | manual control |
| Top Configuration | burner |
| Exterior Finish | stainless steel front & sides |
| Top | (4) open burners |
| Vent | backriser with hi-shelf |
| Certifications | ETL-Sanitation, Made in USA |
| Total BTU | 128,000 |
| Burner BTU | 32,000 |
Technical specifications
Specifications
| Manufacturer | American Range |
|---|---|
| Model Number | AR-4-SB |
| Weight | 260 lbs |
| Width | 24 |
| Depth | 32.25 |
| Height | 56 |
| Installation Type | free standing |
| Range Type | standard duty/restaurant range |
| Number of Burners | 4 burners |
| Base Type | cabinet/storage base |
| Control Type | manual control |
| Top Configuration | burner |
| Exterior Finish | stainless steel front & sides |
| Top | (4) open burners |
| Vent | backriser with hi-shelf |
| Certifications | ETL-Sanitation, Made in USA |
| Total BTU | 128,000 |
| Burner BTU | 32,000 |
