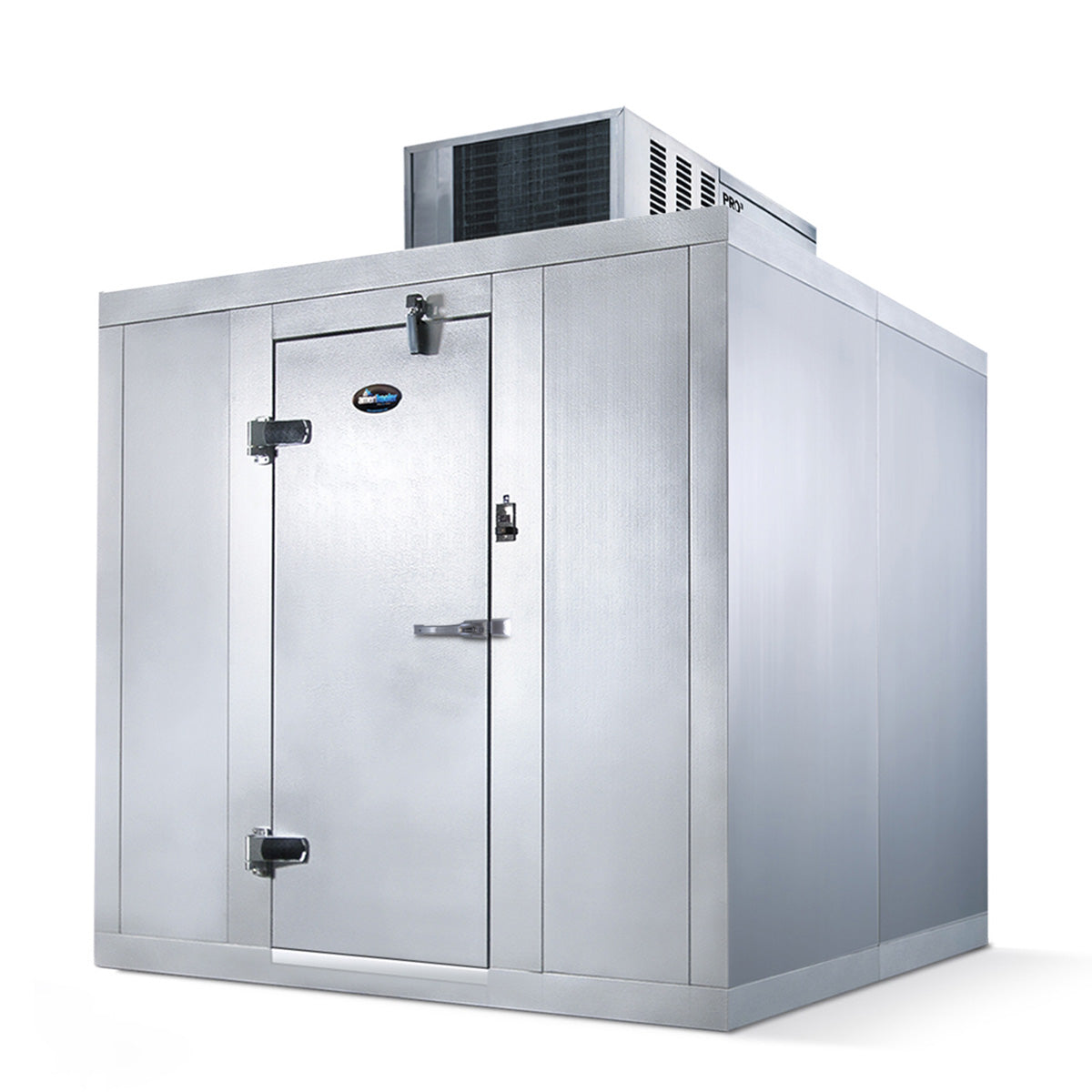

Amerikooler QC061282FBSC 6' x 12' x 8' 2-1/2" Indoor Walk-In Cooler, Aluminum Floor, Top Mount Self-Contained Refrigeration
A 6' x 12' indoor walk-in cooler with top mount self-contained refrigeration that holds 35°F.
The Amerikooler QC061282FBSC is an AK Series 3 Quick Ship walk-in cooler for use indoors. It measures 6' wide x 12' long x 8' 2-1/2" high outside, with 7' 6-1/2" of interior height. It has an insulated floor with a smooth aluminum finish, rated at 600 lb per square foot for foot traffic. A top mount self-contained refrigeration system holds 35°F and runs on 208-230V single phase. Walls and ceiling are 4" AK-XPS4 insulated panels rated R-29.
The walk-in arrives as modular panels that are assembled on site, so it does not need to fit through a doorway in one piece. Check the floor is level before delivery.
Walls and ceiling use 4" extruded polystyrene insulation rated R-29 for coolers, with stucco embossed 26 gauge Acrylume coated Galvalume inside and out. Panels lock together with cam-action locks and gasketed joints.
The refrigeration sits on top of the box, so no separate condensing unit has to be placed. It holds 35°F and runs on 208-230V single phase, 60 Hz.
Insulated floor panels with a smooth aluminum finish are rated at 600 lb per square foot of evenly spread load, for foot traffic only. Carts and pallet jacks need a reinforced floor.
Safeguard deadbolt keyed, padlock-capable pull handle latch with an interior safety release, two Performer lift-off cam-rise spring-assisted hinges, a spring door closer, an LED light and a digital thermometer with pilot light switch.
50-year DuPont thermal warranty, 15-year limited panel warranty and 5-year limited door and floor warranty, plus a 5-year limited compressor warranty.
Outside it measures 6' wide x 12' long x 8' 2-1/2" high. Leave at least 2" between the walk-in and building walls. Inside height is 7' 6-1/2" with the floor.
Yes. It has insulated floor panels with a smooth aluminum finish, rated at 600 lb per square foot of evenly spread load, for foot traffic only. Amerikooler does not cover wheel damage from carts, hand trucks or pallet jacks on floors without reinforcement.
This one is the indoor version. Amerikooler builds outdoor Quick Ship models with a rain roof membrane, exterior floor angles and a door hood; their model numbers end in -O.
The refrigeration runs on 208-230V single phase, 60 Hz. The door circuit is 115V/1/60 at 1.0 amp. A licensed electrician must make the connections.
One flush door, 30" or 36" wide by 76" high, centered on the side you choose. Pick the door width, the wall it sits on and left or right hinge in the options on this page.
50-year DuPont thermal warranty, 15-year limited wall and ceiling panel warranty, 5-year limited door and floor warranty, 5-year limited compressor warranty, 1-year limited panel labor warranty and 1-year original parts warranty. Refrigeration parts follow the equipment maker's warranty terms.
Amerikooler's architectural specifications list NSF International Standard 7 and UL certification of the panels to ASTM E84 and UL 723. The door uses UL approved components.
Yes. Amerikooler walk-ins carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Amerikooler |
|---|---|
| Model Number | QC061282FBSC |
| Series | AK Series 3 Quick Ship |
| Type | Walk-In Cooler |
| Width | 6 Feet |
| Depth | 12 Feet |
| Height | 8 Feet 2-1/2 Inches |
| Exterior Size | 6' W x 12' L x 8' 2-1/2" H |
| Interior Height | 7 Feet 6-1/2 Inches With Floor |
| Floor | Smooth Aluminum Floor, 600 lb/sq ft Uniformly Distributed Load, Foot Traffic Only |
| Location | Indoor |
| Insulation | 4" AK-XPS4 Extruded Polystyrene |
| R-Value | R-29 |
| Panel Finish | Stucco Embossed 26 Gauge Acrylume Coated Galvalume, Interior and Exterior |
| Panel Joining | Cam-Action Locking Panels, Hex Wrench Provided |
| Refrigeration | Top Mounted Self-Contained |
| Temperature Range | 35°F |
| Voltage | 208-230 Volts |
| Electrical | Refrigeration 208-230V/1/60Door 115V/1/60, 1.0 Amp |
| Door | Single 30" or 36" W x 76" H flush door, centered on the side you choose |
| Door Hardware | Safeguard Deadbolt Keyed Padlock-Capable Pull Handle Latch, Interior Safety Release, 2 Performer Lift-Off Cam-Rise Spring-Assisted Hinges, Spring Actuated Door Closer |
| Lighting | Vapor-Proof LED Light Fixture Centered on Interior Door Jamb |
| Thermometer | Digital LED Thermometer with On/Off Pilot Light Switch |
| Approvals | NSF International Standard 7UL Certified Panels, ASTM E84 and UL 723 |
| Thermal Warranty | 50 Years DuPont Thermal |
| Panel Warranty | 15 Years Limited, Wall and Ceiling Panels |
| Door and Floor Warranty | 5 Years Limited |
| Compressor Warranty | 5 Years Limited |
| Panel Labor Warranty | 1 Year Limited |
| Parts Warranty | 1 Year Original Parts |
| Refrigeration Components | Per Original Equipment Manufacturer's Warranty |
