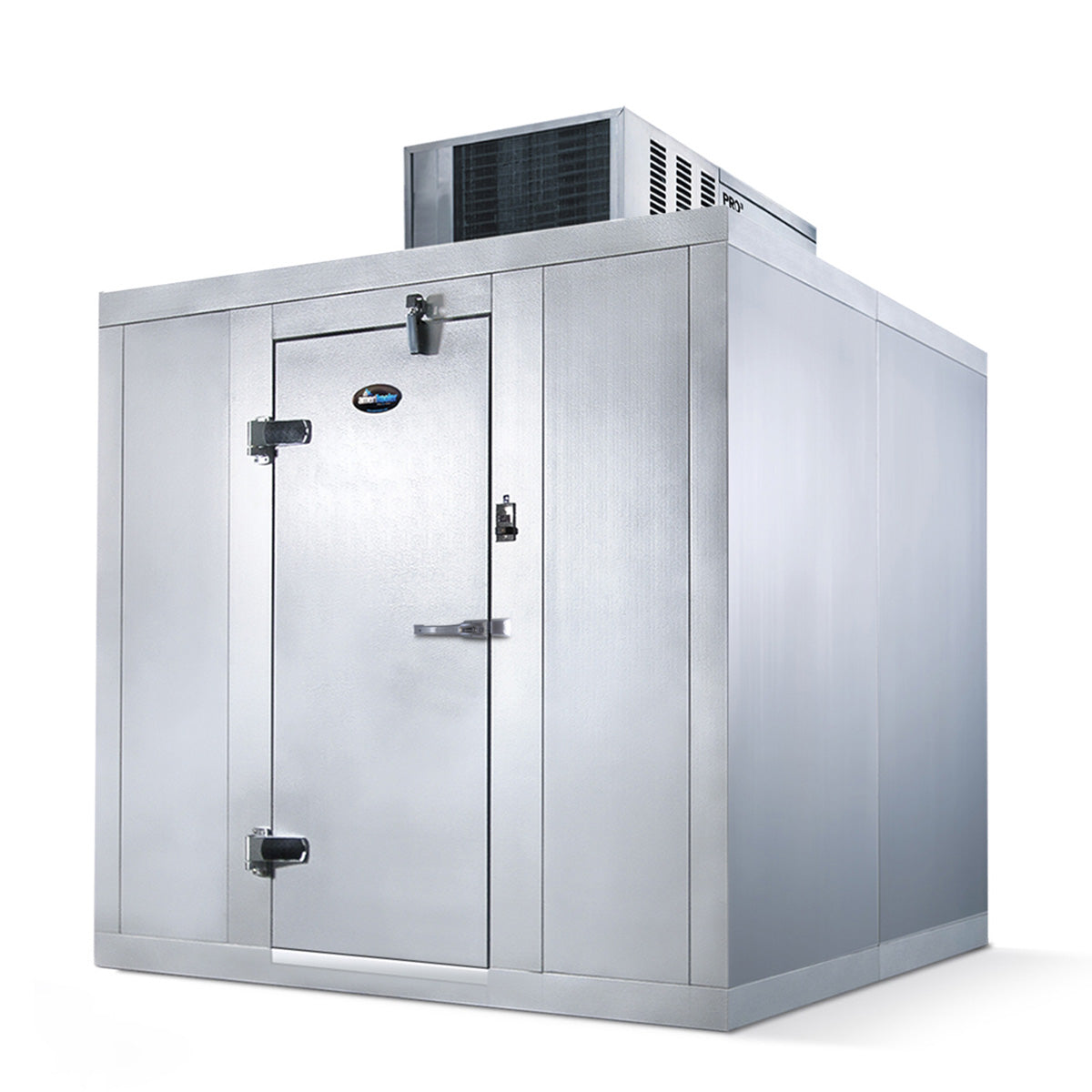

Amerikooler QC081077NBSC 8' x 10' x 7' 7" Indoor Walk-In Cooler, Floorless, Top Mount Self-Contained Refrigeration
8' x 10' indoor walk-in cooler from the Amerikooler AK Series 3 Quick Ship line, floorless, top mount self-contained.
The Amerikooler QC081077NBSC is an 8' x 10' walk-in cooler that stands 7' 7" tall outside and gives you 7' 3" of clear height inside. It is built from 4" AK-XPS insulated panels (R-29) that lock together on site, with a 30" or 36" wide flush door you can center on any side. It is floorless: it sets on your existing level tile or concrete floor with the NSF vinyl screed supplied. It is built for indoor installation. It comes with a top mounted self-contained refrigeration system that holds 35°F.
Sizes are nominal exterior feet. Check your measurements against the approved Amerikooler drawing before you order.
Walls and ceiling use 4" DuPont extruded polystyrene (XPS) insulation rated R-29 for coolers, backed by a 50-year DuPont thermal warranty. The panels are Acrylume coated, stucco embossed Galvalume inside and out, which resists corrosion.
Floor, wall and ceiling panels have tongue and groove edges and lock together with cam-action fasteners. An NSF compression gasket on each joint makes an airtight seal. The supplied Allen wrench works the locks, and plugs cover the ports afterward.
The flush door hangs on 2 Performer lift-off, adjustable cam-rise spring-assisted hinges with a spring actuated closer. A Safeguard deadbolt keyed, padlock capable latch locks it, and the interior safety release lets anyone inside get out.
A vapor-proof LED light is centered on the interior door jamb, and a digital LED thermometer with an on/off pilot light switch sits on the jamb so staff can check the temperature without opening the door.
No floor panels: the walls stand on your existing level, finished floor. Amerikooler supplies NSF vinyl screed, coved for easy cleaning, that is fastened to the floor along the walls.
The refrigeration sits on top of the box with its components mounted. It runs on 208-230V single phase power and holds 35°F. Leave 24" above the box for airflow and service access.
The outside size is 8' x 10' and 7' 7" tall. Leave at least 2" between the walk-in and building walls, and 24" above the box for the top mount refrigeration. Inside, you get 7' 3" of clear height, and the door opening is 30" or 36" wide by 76" high.
No. This floorless model sets on your existing level, finished floor, such as tile or concrete. Amerikooler supplies NSF vinyl screed that is fastened to the floor under the walls. If you want an insulated floor, choose the model with an F in the code.
The refrigeration runs on 208-230V, single phase, 60 Hz. The door light and thermometer use a separate 115V, single phase circuit at 1.0 amp. Have a licensed electrician size the breakers from the refrigeration nameplate.
The whole refrigeration system sits on the roof of the box with its components mounted, so there is no separate condensing unit to place. It holds 35°F. It needs 24" of open space above the box for airflow and service.
You pick a 30" or 36" wide by 76" high flush door, centered on the width side or the length side, with a left-hand or right-hand hinge (options WR, WL, LR, LL on this page). Every door comes with spring-assisted hinges, a closer, a keyed deadbolt latch with inside safety release, an LED light and a digital thermometer.
This model is the indoor version. For outdoor use, choose the matching model with -O in the code, which adds a rain roof membrane, exterior floor angles and a door hood.
Amerikooler lists a 50-year DuPont thermal warranty on the insulation, 15-year limited warranty on wall and ceiling panels, 5-year limited warranty on doors and floors, 1-year limited panel labor warranty and 1-year original parts warranty. The Quick Ship flyer also lists a 5-year compressor limited warranty; other refrigeration components follow the original manufacturer's warranty.
Yes. Amerikooler walk-ins carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Amerikooler |
|---|---|
| Model Number | QC081077NBSC |
| Series | AK Series 3 Quick Ship |
| Type | Walk-In Cooler |
| Location | Indoor |
| Width | 8 Feet |
| Depth | 10 Feet |
| Height | 7 Feet 7 Inches |
| Exterior Size | 8' x 10' x 7' 7" |
| Interior Height | 7' 3" |
| Floor | Floorless, NSF vinyl screed supplied |
| Refrigeration | Top mounted self-contained, components mounted |
| Temperature Range | 35°F |
| Electrical | Refrigeration 208-230V/1/60; door 115V/1/60, 1.0 amp |
| Voltage | 208-230V |
| Insulation | 4" AK-XPS extruded polystyrene, DuPont |
| R-Value | R-29 |
| Panel Finish | Acrylume coated, stucco embossed Galvalume, interior and exterior |
| Panel Joints | Cam-action locks, NSF compression gasket |
| Door | Flush, 30" or 36" W x 76" H, centered on width or length side |
| Door Hinges | 2 Performer lift-off adjustable cam-rise spring-assisted, left or right hand |
| Door Hardware | Safeguard deadbolt keyed, padlock capable pull handle latch; interior safety release; spring actuated closer |
| Lighting | Vapor-proof LED fixture centered on interior door jamb |
| Thermometer | Digital LED with on/off pilot light switch |
| Certifications | NSF Standard 7, UL 723 panels and doors |
| Warranty | 50-year DuPont thermal warranty on insulation |
| Panel Warranty | 15-year limited, wall and ceiling panels |
| Door and Floor Warranty | 5-year limited |
| Compressor Warranty | 5-year limited per Quick Ship flyer; other refrigeration components per original manufacturer |
| Labor Warranty | 1-year limited panel labor |
| Parts Warranty | 1-year original parts |
