Amerikooler QC101087N 10' x 10' x 8' 7" Indoor Walk-In Cooler, Floorless, Box Only, No Refrigeration
10' x 10' indoor walk-in cooler from the Amerikooler AK Series 3 Quick Ship line, floorless, box only.

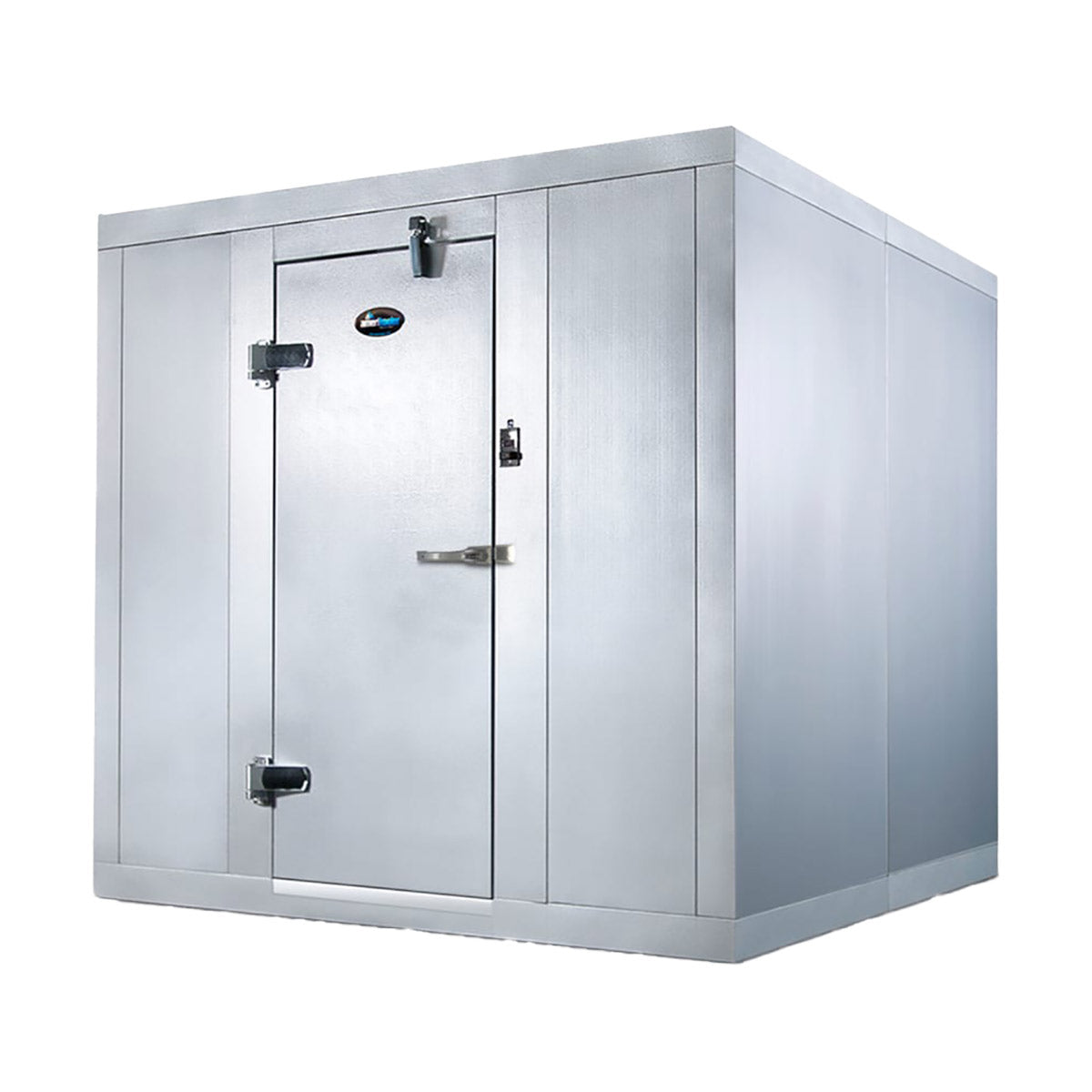

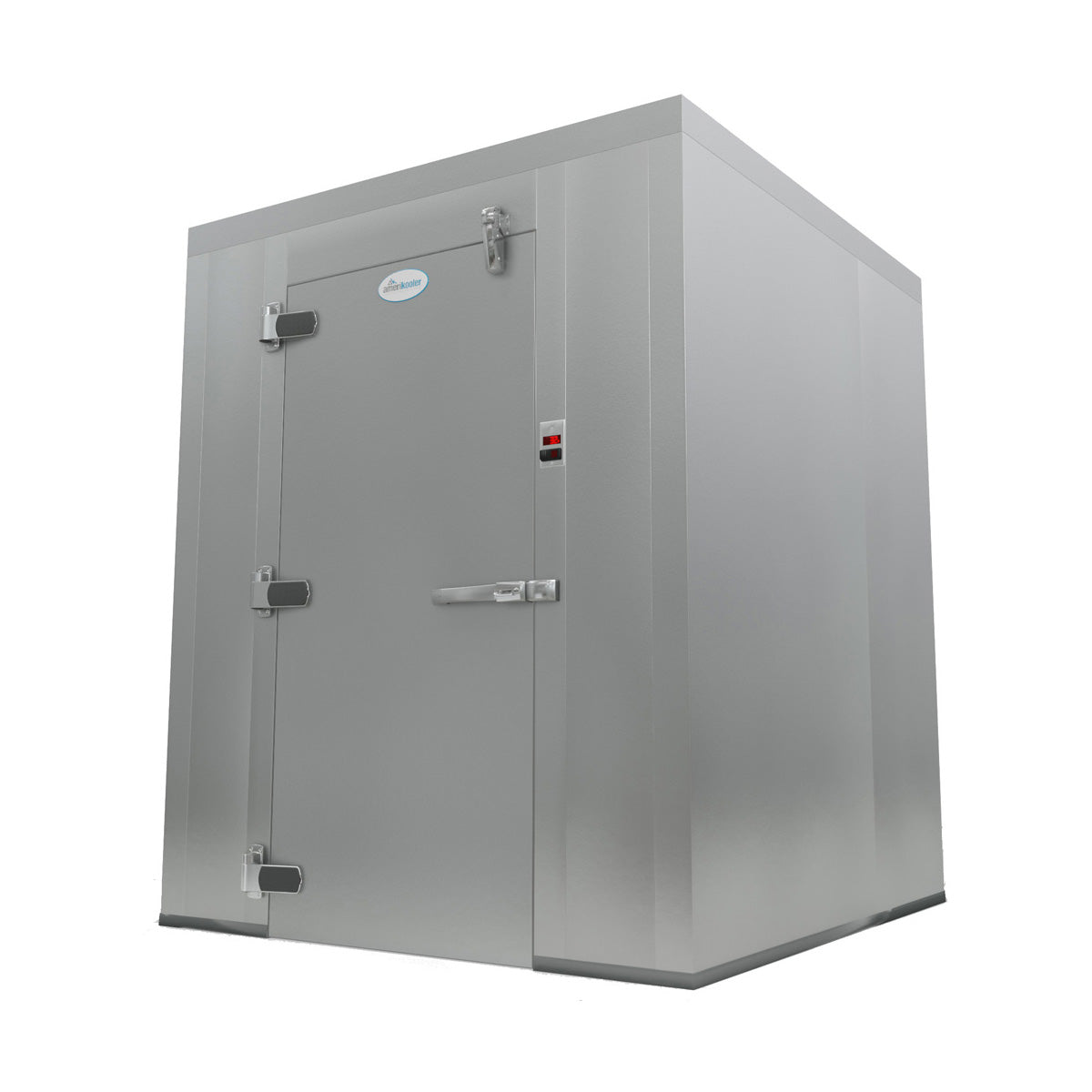

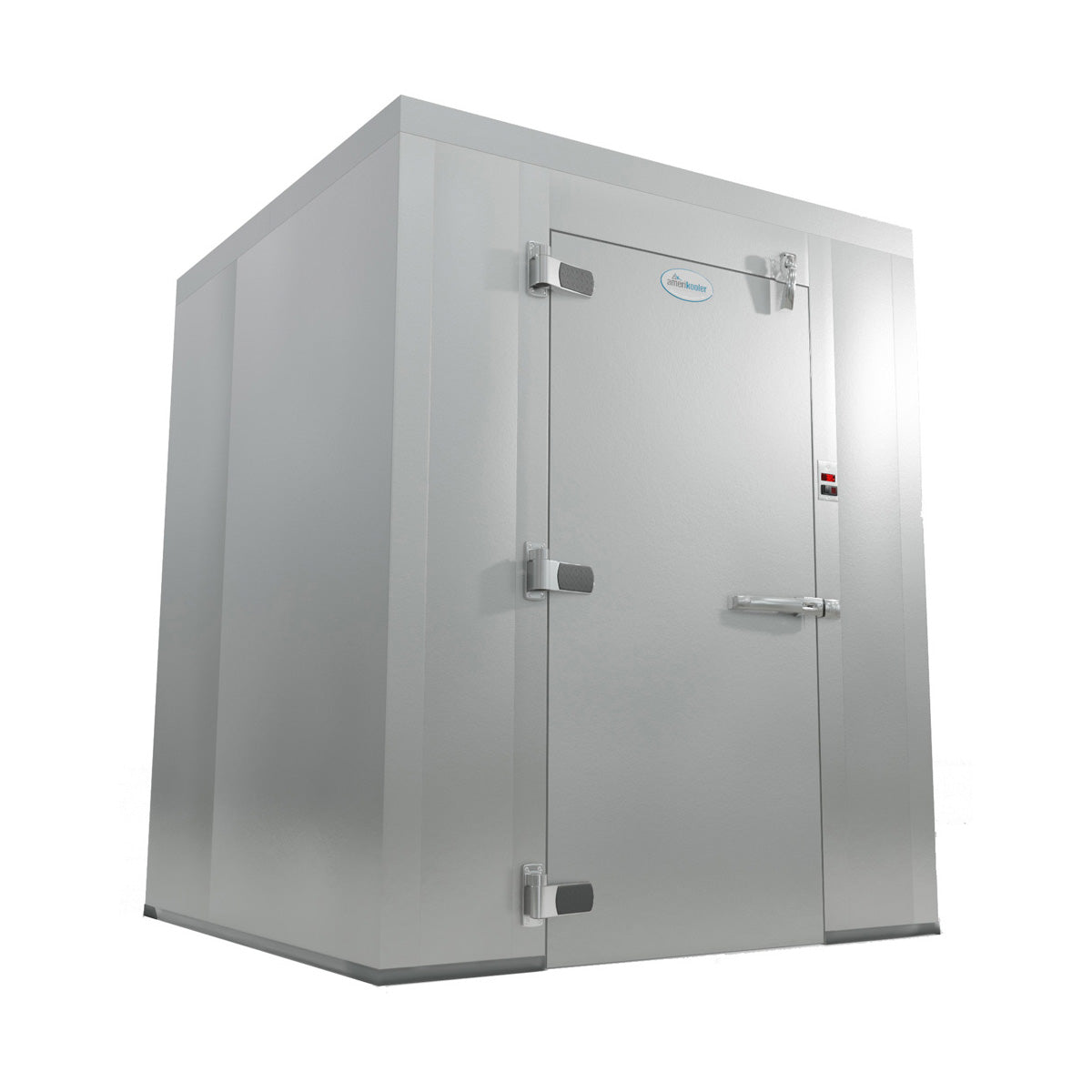

The Amerikooler QC101087N is a 10' x 10' walk-in cooler that stands 8' 7" tall outside and gives you 8' 3" of clear height inside. It is built from 4" AK-XPS insulated panels (R-29) that lock together on site, with a 30" or 36" wide flush door you can center on any side. It is floorless: it sets on your existing level tile or concrete floor with the NSF vinyl screed supplied. It is built for indoor installation. It comes with no refrigeration, so you can add the system that suits your site.
Sizes are nominal exterior feet. Check your measurements against the approved Amerikooler drawing before you order.
Walls and ceiling use 4" DuPont extruded polystyrene (XPS) insulation rated R-29 for coolers, backed by a 50-year DuPont thermal warranty. The panels are Acrylume coated, stucco embossed Galvalume inside and out, which resists corrosion.
Floor, wall and ceiling panels have tongue and groove edges and lock together with cam-action fasteners. An NSF compression gasket on each joint makes an airtight seal. The supplied Allen wrench works the locks, and plugs cover the ports afterward.

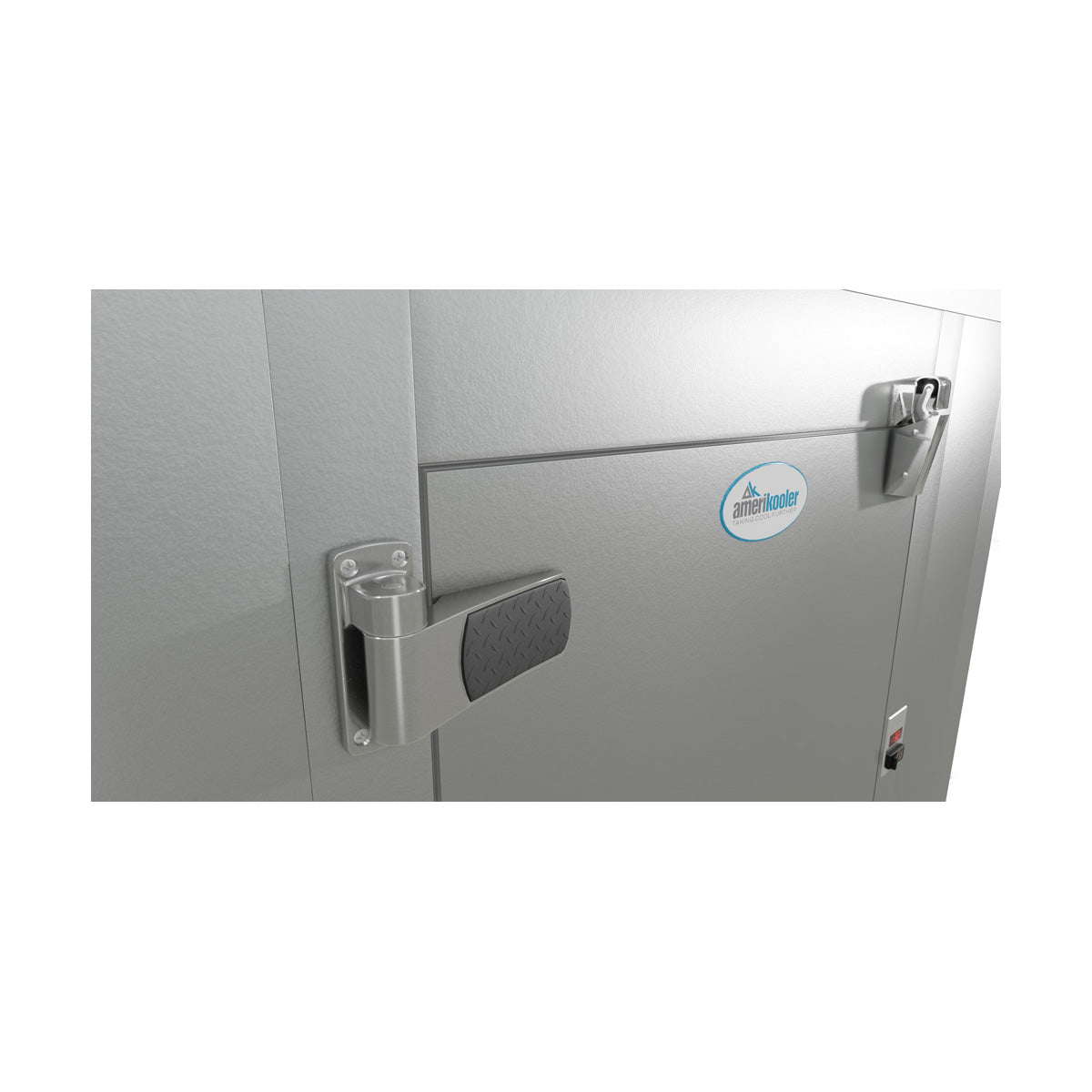

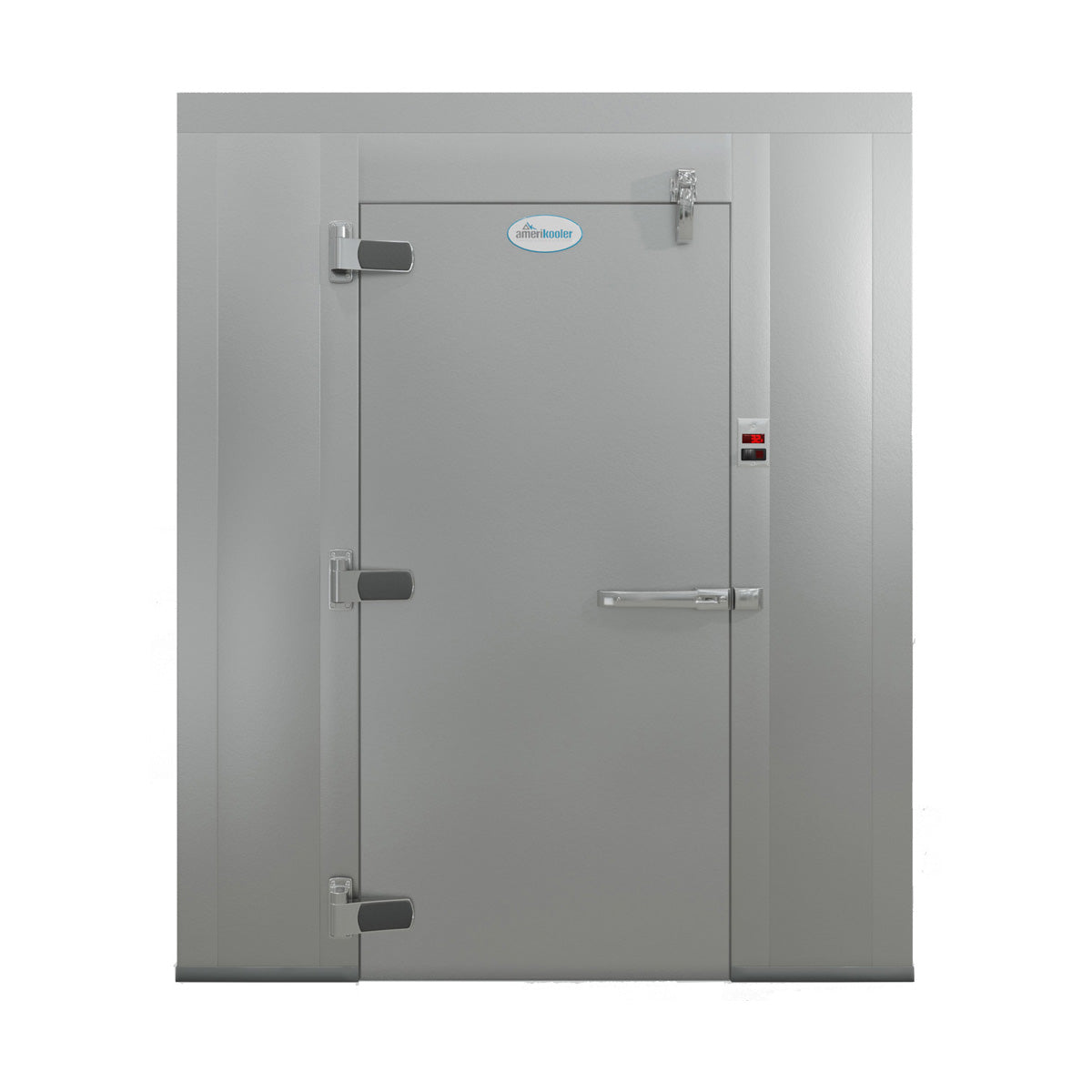

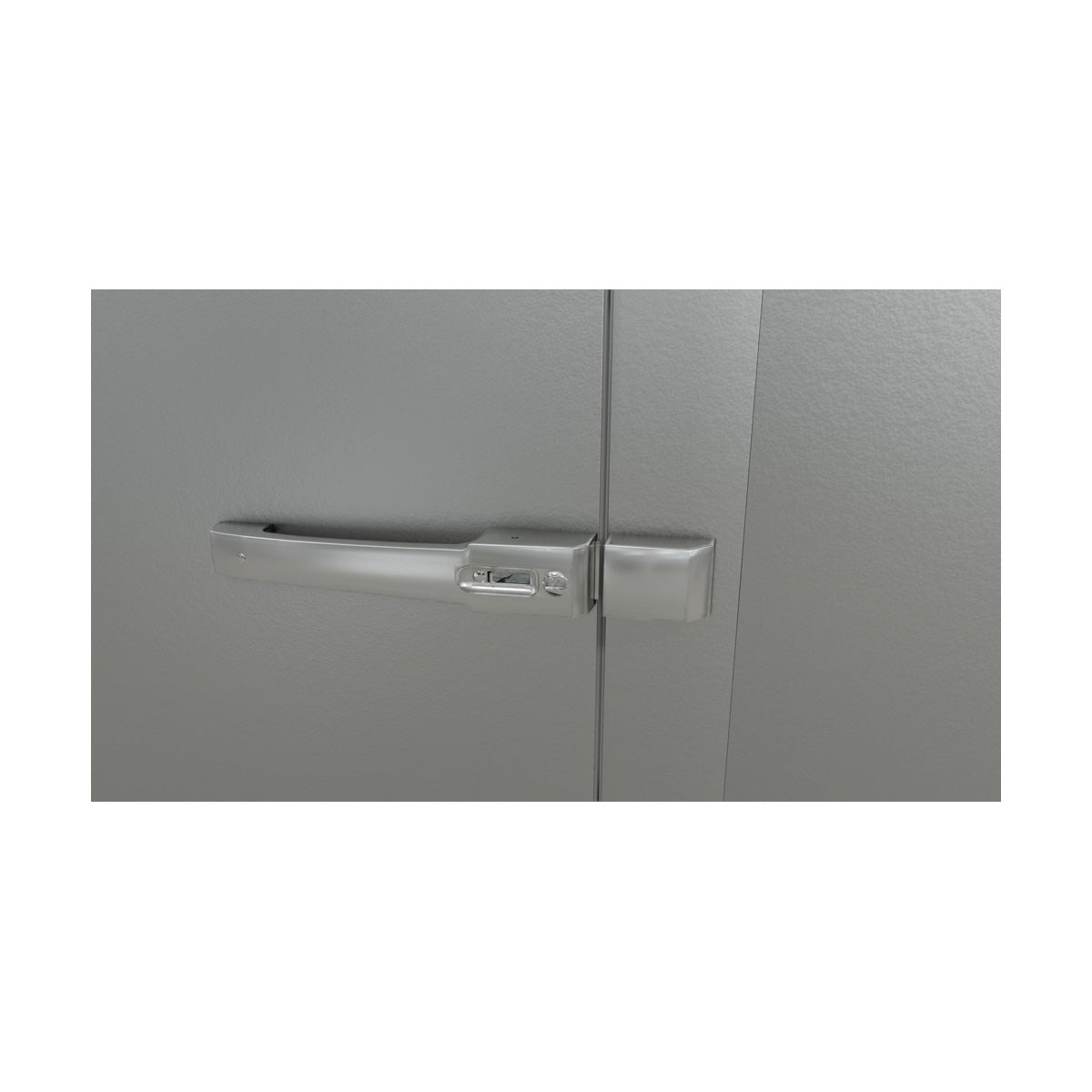

The flush door hangs on 2 Performer lift-off, adjustable cam-rise spring-assisted hinges with a spring actuated closer. A Safeguard deadbolt keyed, padlock capable latch locks it, and the interior safety release lets anyone inside get out.
A vapor-proof LED light is centered on the interior door jamb, and a digital LED thermometer with an on/off pilot light switch sits on the jamb so staff can check the temperature without opening the door.
No floor panels: the walls stand on your existing level, finished floor. Amerikooler supplies NSF vinyl screed, coved for easy cleaning, that is fastened to the floor along the walls.
You get the insulated panels, door and standard accessories without a refrigeration system. Pair it with a cooler system sized for the box, installed by a licensed refrigeration technician.
The outside size is 10' x 10' and 8' 7" tall. Leave at least 2" between the walk-in and building walls. Inside, you get 8' 3" of clear height, and the door opening is 30" or 36" wide by 76" high.
No. This floorless model sets on your existing level, finished floor, such as tile or concrete. Amerikooler supplies NSF vinyl screed that is fastened to the floor under the walls. If you want an insulated floor, choose the model with an F in the code.
You get the insulated panels, the door with its hardware, light and thermometer, but no refrigeration system. You add a cooler system that matches the box size, installed by a licensed refrigeration technician. The door circuit needs 115V, single phase, 1.0 amp.
You pick a 30" or 36" wide by 76" high flush door, centered on the width side or the length side, with a left-hand or right-hand hinge (options WR, WL, LR, LL on this page). Every door comes with spring-assisted hinges, a closer, a keyed deadbolt latch with inside safety release, an LED light and a digital thermometer.
This model is the indoor version. For outdoor use, choose the matching model with -O in the code, which adds a rain roof membrane, exterior floor angles and a door hood.
Amerikooler lists a 50-year DuPont thermal warranty on the insulation, 15-year limited warranty on wall and ceiling panels, 5-year limited warranty on doors and floors, 1-year limited panel labor warranty and 1-year original parts warranty.
Yes. Amerikooler walk-ins carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Amerikooler |
|---|---|
| Model Number | QC101087N |
| Series | AK Series 3 Quick Ship |
| Type | Walk-In Cooler, Box Only |
| Location | Indoor |
| Width | 10 Feet |
| Depth | 10 Feet |
| Height | 8 Feet 7 Inches |
| Exterior Size | 10' x 10' x 8' 7" |
| Interior Height | 8' 3" |
| Floor | Floorless, NSF vinyl screed supplied |
| Refrigeration | Not included, box only |
| Electrical | Door 115V/1/60, 1.0 amp |
| Voltage | 115V |
| Insulation | 4" AK-XPS extruded polystyrene, DuPont |
| R-Value | R-29 |
| Panel Finish | Acrylume coated, stucco embossed Galvalume, interior and exterior |
| Panel Joints | Cam-action locks, NSF compression gasket |
| Door | Flush, 30" or 36" W x 76" H, centered on width or length side |
| Door Hinges | 2 Performer lift-off adjustable cam-rise spring-assisted, left or right hand |
| Door Hardware | Safeguard deadbolt keyed, padlock capable pull handle latch; interior safety release; spring actuated closer |
| Lighting | Vapor-proof LED fixture centered on interior door jamb |
| Thermometer | Digital LED with on/off pilot light switch |
| Certifications | NSF Standard 7, UL 723 panels and doors |
| Warranty | 50-year DuPont thermal warranty on insulation |
| Panel Warranty | 15-year limited, wall and ceiling panels |
| Door and Floor Warranty | 5-year limited |
| Labor Warranty | 1-year limited panel labor |
| Parts Warranty | 1-year original parts |
