Astra 5 x 20 Walk-In Cooler No Floor CNF5X20

Name: Astra 5 x 20 Walk-In Cooler No Floor CNF5X20
Brand: Astra
SKU: CNF5X20
Price: 5053.0 USD
Availability: InStock

AstraSKU: CNF5X20

Roll over image to zoom in Click on image to zoom

Astra 5 x 20 Walk-In Cooler No Floor CNF5X20

Astra

Price:

$5,053.00

Indoor / Outdoor

Door Size

Floor Type

Add-Ons

LED Light $150.00 / Ea. Door Kick Plate $160.00 / Ea. Exterior Ramp $911.00 / Ea.

Refrigeration

Layout

5X20-36R-3

5X20-36R-2

5X20-36R

5X20-36L-3

5X20-36L-2

5X20-36L

5X20-36CR

5X20-30CR

Product Specifications

Brand Astra

Model CNF5X20

External Dimensions 4' 11"W x 19' 8"L x 7' 3"H

Panel Construction 4" thick foamed-in-place polyurethane insulation

Insulation Value R27 for coolers and R33 for freezers

Panel Warranty 10 year panel warranty

Top Mount Refrigeration Indoor: Turbo Air Indoor Package Unit, Top-Mount, Smart 7, Medium Temp, 10,000 BTU, 208-230V/60Hz/1Ph, R290
Outdoor: Turbo Air Outdoor Package Unit, Top-Mount, Smart 7, Medium Temp, 10,000 BTU, 208-230V/60Hz/1Ph, R290

Remote Refrigeration Turbo Air ADR112AENC 2 Fan Low Profile Evaporator Coil (Unit Cooler) +Turbo Air TS010MR404A2 1 HP Extended Medium Temp Outdoor Condensing Unit

Resources & Documents

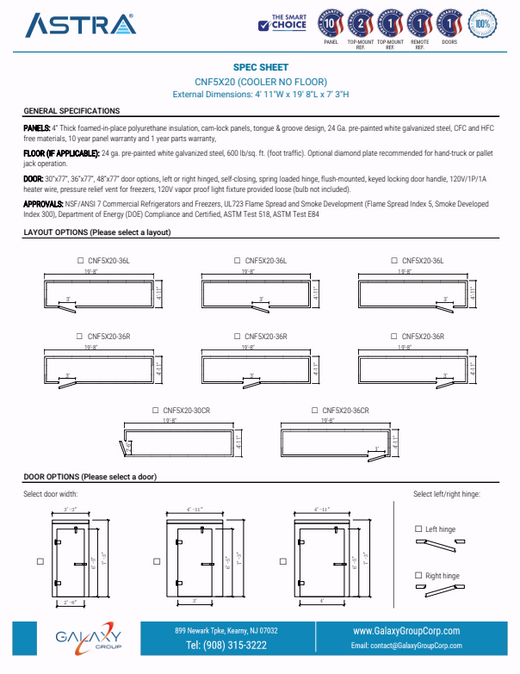

PDF Spec Sheet

PDF Astra Catalog

PDF California 65 Statement

Share this product

Astra® Quick-Ship Walk-In Coolers & Freezers deliver quality and speed with modular cam-lock panels, sizes 5’-40’, and top-mount or remote options. Ships in 48 hours, NSF, UL, DOE compliant, with 10-year panel warranty. Ready when you are!

Ships within 48 hours
Several Variations Available
Top-Mount or Remote Refrigeration
Modular design with all cam-lock panels
10 year panel warranty, 1 year parts warranty on doors
2 year parts and 1 labor warranty on top-mount refrigeration
NSF, UL, DOE, ASTM Test 518, and ASTM Test E84 Compliant

UL723 Flame Spread and Smoke Development Compliant

Astra 5 x 20 Walk-In Cooler No Floor CNF5X20

Panels

4" Thick Foamed-In-Place Polyurethane Insulation
Cam-Lock Panels, Tongue & Groove Design
24 Gauge Pre-Painted White Galvanized Steel
R27 for Coolers and R33 for Freezers
CFC and HFC Free Materials
10 Year Panel Warranty

Doors

30" or 36" wide doors (left or right hinged)
Self-Closing, Flush-Mounted Doors
Keyed Locking Door Handle
120V/1P/1A Heating Wire and Pressure Relief Vent on Freezers
Heavy-Duty Hinges and Durable Handles

Keyed Locking Door Handle

Heavy-Duty Door Hinge

Self-Closing Door Mechanism

Vapor Proof Light

LED Light

Exterior Ramp

Aluminum Diamond Plate

Kick Plate

10-Year Panel Warranty
2-Year Top Mount Refrigeration Parts
1-Year Top Mount Refrigeration Labor
1-Year Remote Refrigeration Parts
1-Year Door Warranty

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model Number	External Dimensions	Spec Sheet
CNF5X6	4'11" L x 6'7" W x 7'3" H	PDF
CNF5X8	4'11" L x 8'2" W x 7'3" H	PDF
CNF5X10	4'11" L x 9'10" W x 7'3" H	PDF
CNF6X6	6'7" L x 6'7" W x 7'3" H	PDF
CNF6X8	6'7" L x 8'2" W x 7'3" H	PDF
CNF6X10	6'7" L x 9'10" W x 7'3" H	PDF
CNF6X12	6'7" L x 11'6" W x 7'3" H	PDF
CNF8X8	8'2" L x 8'2" W x 7'3" H	PDF
CNF8X10	8'2" L x 9'10" W x 7'3" H	PDF
CNF8X12	8'2" L x 11'6" W x 7'3" H	PDF
CNF8X13	8'2" L x 13'2" W x 7'3" H	PDF
CNF8X15	8'2" L x 14'9" W x 7'3" H	PDF
CNF8X17	8'2" L x 16'5" W x 7'3" H	PDF
CNF8X18	8'2" L x 18'1" W x 7'3" H	PDF
CNF8X20	8'2" L x 19'8" W x 7'3" H	PDF
CNF10X10	9'10" L x 9'10" W x 7'3" H	PDF
CNF10X12	9'10" L x 11'6" W x 7'3" H	PDF
CNF10X13	9'10" L x 13'2" W x 7'3" H	PDF
CNF10X15	9'10" L x 14'9" W x 7'3" H	PDF
CNF10X17	9'10" L x 16'5" W x 7'3" H	PDF
CNF10X18	9'10" L x 18'1" W x 7'3" H	PDF
CNF10X20	9'10" L x 19'8" W x 7'3" H	PDF
CWF5X6	4'11" L x 6'7" W x 7'7" H	PDF
CWF5X8	4'11" L x 8'2" W x 7'7" H	PDF
CWF5X10	4'11" L x 9'10" W x 7'7" H	PDF
CWF6X6	6'7" L x 6'7" W x 7'7" H	PDF
CWF6X8	6'7" L x 8'2" W x 7'7" H	PDF
CWF6X10	6'7" L x 9'10" W x 7'7" H	PDF
CWF6X12	6'7" L x 11'6" W x 7'7" H	PDF
CWF8X8	8'2" L x 8'2" W x 7'7" H	PDF
CWF8X10	8'2" L x 9'10" W x 7'7" H	PDF
CWF8X12	8'2" L x 11'6" W x 7'7" H	PDF
CWF8X13	8'2" L x 13'2" W x 7'7" H	PDF
CWF8X15	8'2" L x 14'9" W x 7'7" H	PDF
CWF8X17	8'2" L x 16'5" W x 7'7" H	PDF
CWF8X18	8'2" L x 18'1" W x 7'7" H	PDF
CWF8X20	8'2" L x 19'8" W x 7'7" H	PDF
CWF10X10	9'10" L x 9'10" W x 7'7" H	PDF
CWF10X12	9'10" L x 11'6" W x 7'7" H	PDF
CWF10X13	9'10" L x 13'2" W x 7'7" H	PDF
CWF10X15	9'10" L x 14'9" W x 7'7" H	PDF
CWF10X17	9'10" L x 16'5" W x 7'7" H	PDF
CWF10X18	9'10" L x 18'1" W x 7'7" H	PDF
CWF10X20	9'10" L x 19'8" W x 7'7" H	PDF

Model Number	External Dimensions	Spec Sheet
FWF5X6	4'11" L x 6'7" W x 7'7" H	PDF
FWF5X8	4'11" L x 8'2" W x 7'7" H	PDF
FWF5X10	4'11" L x 9'10" W x 7'7" H	PDF
FWF6X6	6'7" L x 6'7" W x 7'7" H	PDF
FWF6X8	6'7" L x 8'2" W x 7'7" H	PDF
FWF6X10	6'7" L x 9'10" W x 7'7" H	PDF
FWF6X12	6'7" L x 11'6" W x 7'7" H	PDF
FWF8X8	8'2" L x 8'2" W x 7'7" H	PDF
FWF8X10	8'2" L x 9'10" W x 7'7" H	PDF
FWF8X12	8'2" L x 11'6" W x 7'7" H	PDF
FWF8X13	8'2" L x 13'2" W x 7'7" H	PDF
FWF8X15	8'2" L x 14'9" W x 7'7" H	PDF
FWF8X17	8'2" L x 16'5" W x 7'7" H	PDF
FWF8X18	8'2" L x 18'1" W x 7'7" H	PDF
FWF8X20	8'2" L x 19'8" W x 7'7" H	PDF
FWF10X10	9'10" L x 9'10" W x 7'7" H	PDF
FWF10X12	9'10" L x 11'6" W x 7'7" H	PDF
FWF10X13	9'10" L x 13'2" W x 7'7" H	PDF
FWF10X15	9'10" L x 14'9" W x 7'7" H	PDF
FWF10X17	9'10" L x 16'5" W x 7'7" H	PDF
FWF10X18	9'10" L x 18'1" W x 7'7" H	PDF
FWF10X20	9'10" L x 19'8" W x 7'7" H	PDF

Model Number	External Dimensions	Spec Sheet
CMB5X12	4'11" L x 11'6" W x 7'7" H	PDF
CMB5X13	4'11" L x 13'2" W x 7'7" H	PDF
CMB5X15	4'11" L x 14'9" W x 7'7" H	PDF
CMB6X8	6'7" L x 8'2" W x 7'7" H	PDF
CMB6X10	6'7" L x 9'10" W x 7'7" H	PDF
CMB6X12	6'7" L x 11'6" W x 7'7" H	PDF
CMB6X13	6'7" L x 13'2" W x 7'7" H	PDF
CMB6X15	6'7" L x 14'9" W x 7'7" H	PDF
CMB6X17	6'7" L x 16'5" W x 7'7" H	PDF
CMB6X18	6'7" L x 18'1" W x 7'7" H	PDF
CMB6X20	6'7" L x 19'8" W x 7'7" H	PDF
CMB8X8	8'2" L x 8'2" W x 7'7" H	PDF
CMB8X10	8'2" L x 9'10" W x 7'7" H	PDF
CMB8X12	8'2" L x 11'6" W x 7'7" H	PDF
CMB8X13	8'2" L x 13'2" W x 7'7" H	PDF
CMB8X15	8'2" L x 14'9" W x 7'7" H	PDF
CMB8X17	8'2" L x 16'5" W x 7'7" H	PDF
CMB8X18	8'2" L x 18'1" W x 7'7" H	PDF
CMB8X20	8'2" L x 19'8" W x 7'7" H	PDF
CMB10X10	9'10" L x 9'10" W x 7'7" H	PDF
CMB10X12	9'10" L x 11'6" W x 7'7" H	PDF
CMB10X13	9'10" L x 13'2" W x 7'7" H	PDF
CMB10X15	9'10" L x 14'9" W x 7'7" H	PDF
CMB10X17	9'10" L x 16'5" W x 7'7" H	PDF
CMB10X18	9'10" L x 18'1" W x 7'7" H	PDF
CMB10X20	9'10" L x 19'8" W x 7'7" H	PDF

Astra QuickShip Walk-In Boxes

Find the right walk-in box size for your space

Review Astra QuickShip cooler, freezer, and combo models in one place. Use the tabs below to compare dimensions, spec sheets, and pricing as you plan your project.

Walk In Coolers Shop walk-in cooler boxes and related configurations Walk In Freezers Shop walk-in freezer box models Walk In Cooler Freezer Combo Shop split cooler and freezer combo boxes
