A walk-in freezer with a 8-door glass merchandiser front, so customers pick frozen products from the glass while you stock from inside.

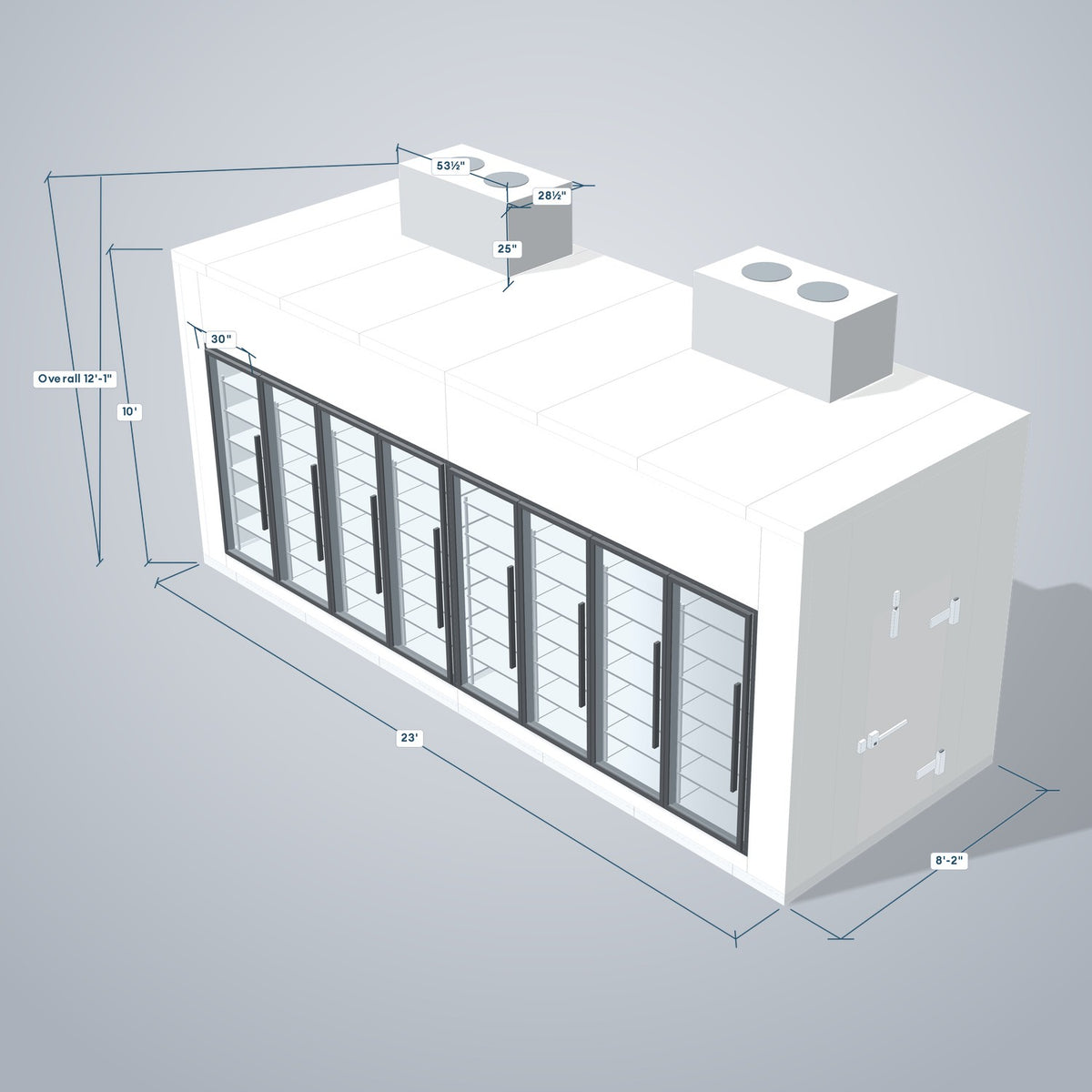

Built for convenience stores, grocery and specialty markets that sell ice cream and frozen foods from a walk-in. This Astra Tall line box is 8' x 23' nominal (8'-2" x 23' outside, 10' high) with 8 Astra SKY 30" x 79" freezer glass doors on the front wall, a 36" x 77" service door on the side wall, an insulated floor and 4" foamed-in-place panels. It comes with 6 × Turbo Air STI050LP2 top mount refrigeration units (Indoor Package Unit, Low Temp, 5,500 BTU, 208/1Ph each), mounted on the roof with the evaporator section through the ceiling.
Measure the space, including ceiling height and the delivery path. Dimensions are from the Astra spec sheet; field verify before ordering.

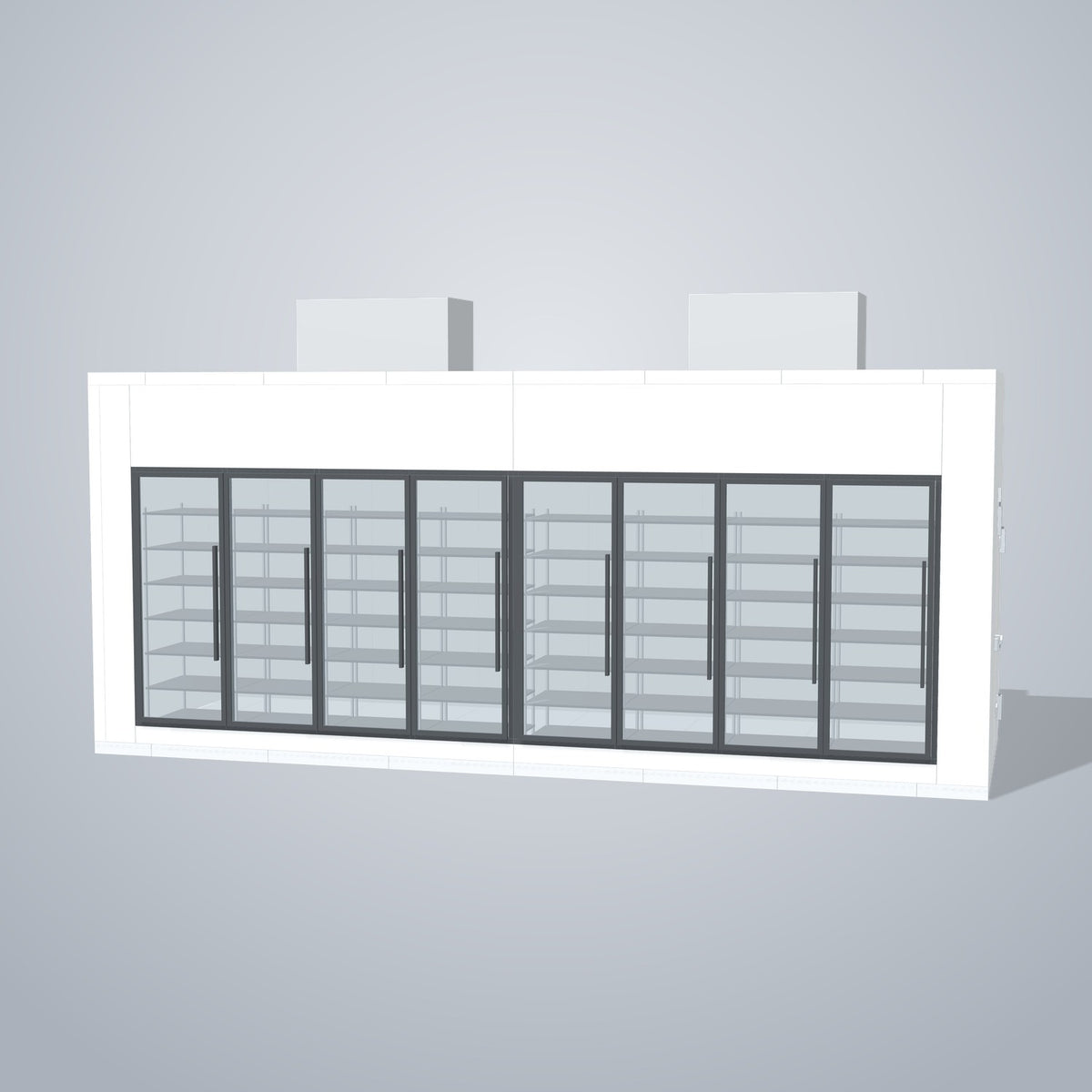

8 Astra SKY freezer doors with 3-pane low-E heated, argon-filled glass, black aluminum frames, LED lighting and reversible hinges.

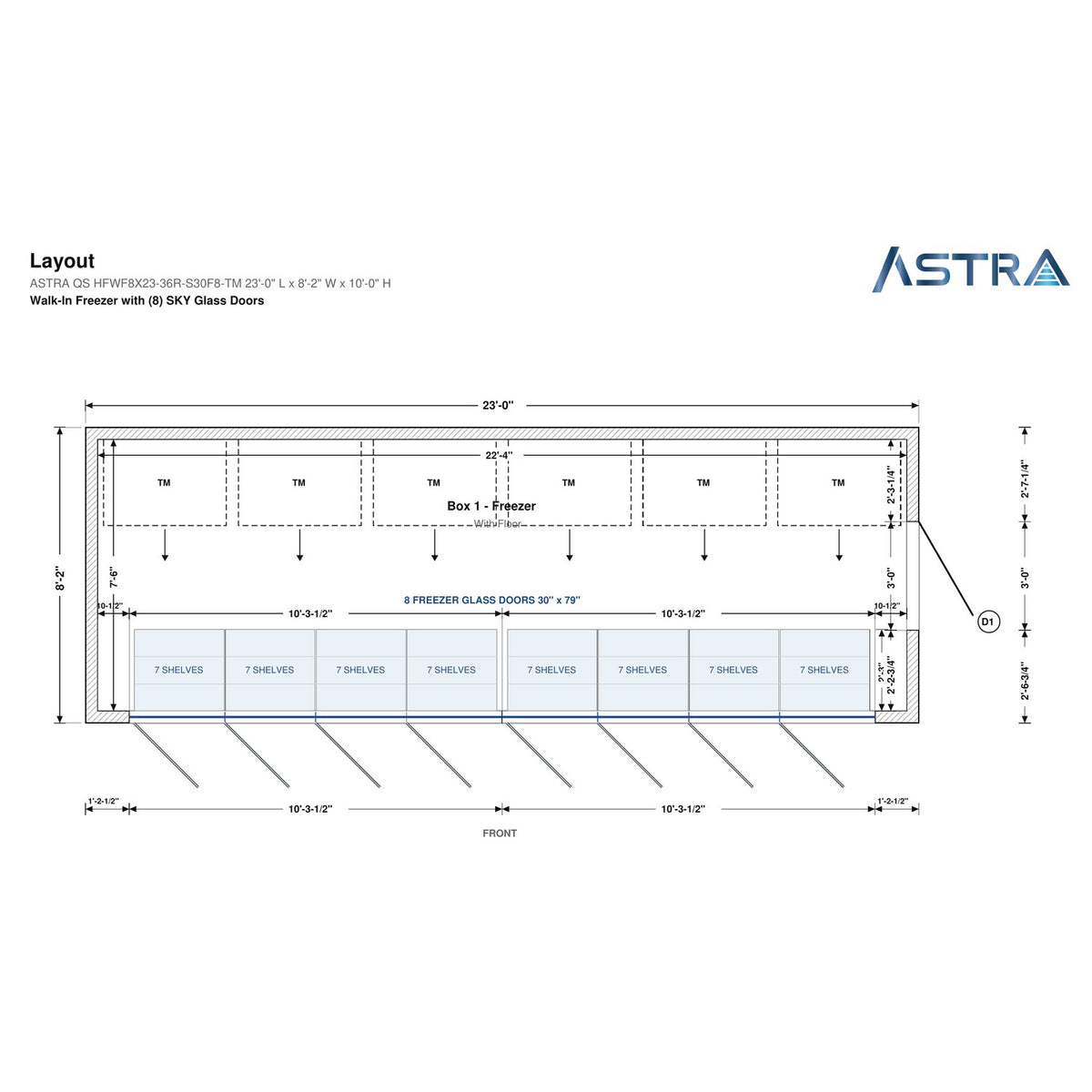

8 shelving units behind the doors, one per door, each with 7 shelves 27" deep, come with the glass door sets.
Foamed-in-place polyurethane, R33, cam-lock tongue-and-groove panels in 24 ga. pre-painted white galvanized steel; CFC and HFC free.
The 30" x 79" glass doors need the Astra Tall line; inside clear height is 9'-4".
Six self-contained low-temp units on the roof, the evaporator section through the ceiling; no refrigerant lines to run.

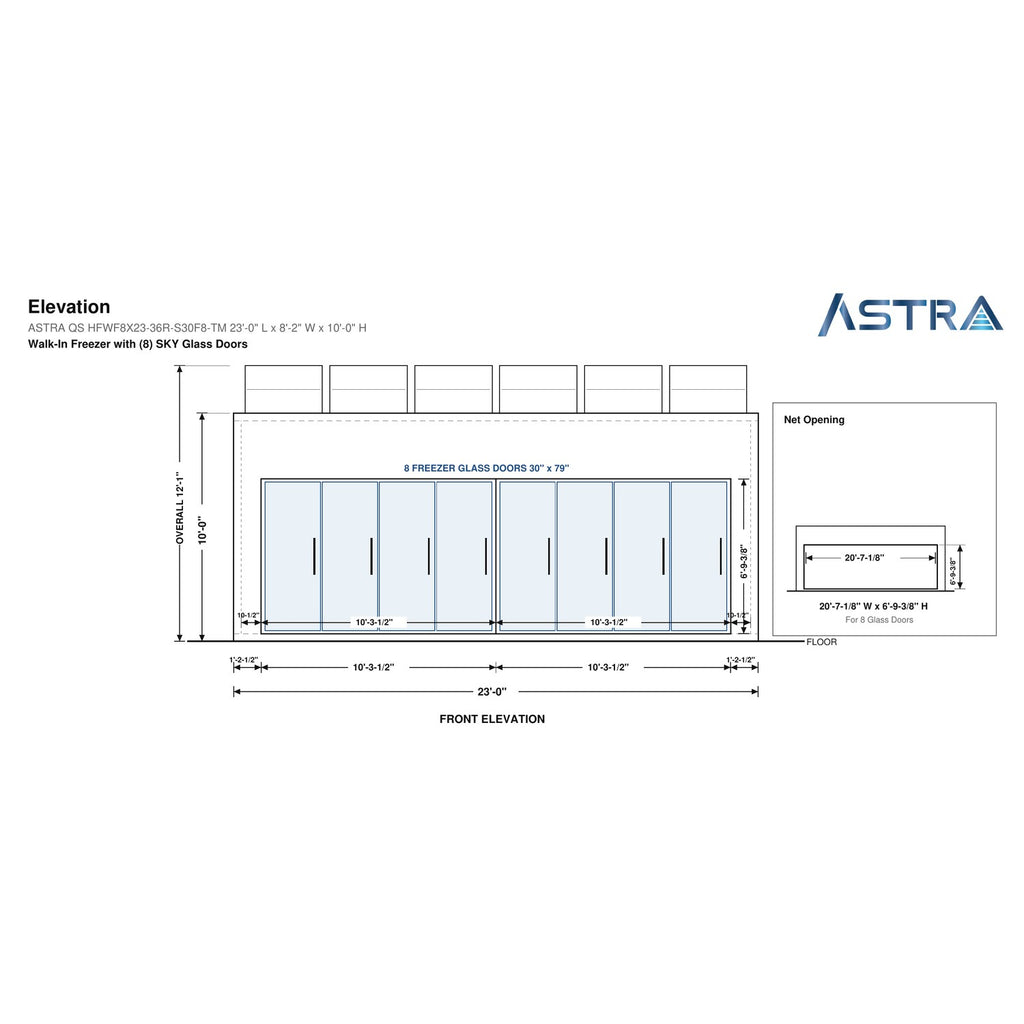

No. The box ships as standard Astra Quick Ship cam-lock panels and the installer cuts the net opening (20'-7-1/8" W x 6'-9-3/8" H) in the front wall panels on site. The door sets butt together into one glass run with at least 6" clear at each end.
The glass door sets include 8 shelving units behind the doors, one per door, each with 7 shelves 27" deep.
Yes. This listing includes 6 × Turbo Air STI050LP2 top mount refrigeration units (Indoor Package Unit, Low Temp, 5,500 BTU, 208/1Ph each), mounted on the roof with the evaporator section through the ceiling.
The box is 10' high outside. With top mount refrigeration it is 12'-1" overall, and the units need 24" clear above them for service.
The 24 ga. steel floor is rated 600 lb/sq. ft. for foot traffic. For hand trucks or pallet jacks, add a diamond plate floor overlay.
Yes. Choose left or right hinge and a 30", 36" or 48" door above. The service door goes on a side wall, never on the glass wall.
Astra panels carry a 10 year panel warranty and a 1 year parts warranty.
Yes. Astra walk-ins are covered by our Best Price Guarantee. Call us with the quote you have.
Keyed Locking Door Handle
Heavy-Duty Door Hinge
Self-Closing Door Mechanism
Vapor Proof Light
LED Light
Exterior Ramp
Aluminum Diamond Plate
Kick Plate
