Description
A heavy-duty boilerless combi oven that steams, roasts and bakes without a boiler to maintain.

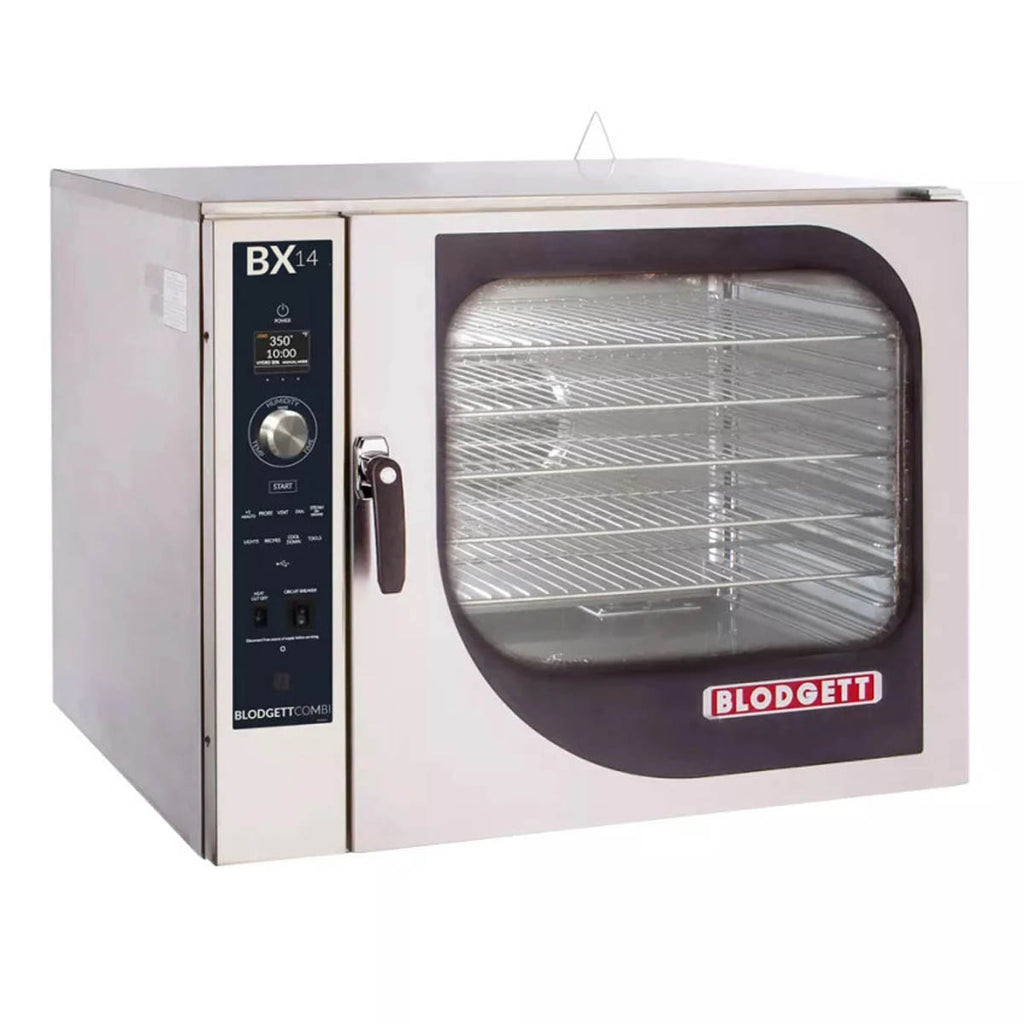

The Blodgett BX-14G ADDL is an add-on BX-14G boilerless combi oven for kitchens that already run one. It holds fourteen 12" x 20" x 2-1/2" hotel pans or seven 18" x 26" sheet pans and cooks with steam at 212°F, hot air or a combination from 140°F to 500°F. This section comes with 4" casters and stacking hardware to stack on an oven you already own. Choose natural gas or LP and the control voltage when ordering.
Will it fit · Will it hook up
- Outside size
- 40.19" W × 37.6" D × 36.16" H (section only)
- Door swing
- The door needs 35.2" in front of the oven
- Doorway
- Minimum entry clearance per section: 36.16" uncrated, 42" crated
- Inside
- 14 hotel pans (12" x 20" x 2-1/2") or 7 sheet pans (18" x 26")
- Power
- 115V 12 A cord and plug (NEMA 5-20R receptacle) or 208-240V 6 A
- Gas
- 65,000 BTU/H total, 3/4" NPT; natural gas 7.0" W.C. or propane 14" W.C.
- Water and drain
- 3/4" garden-hose cold water at 40-50 PSI and a 2" drain
- Clearance
- 2" on the right side, 2" on the left side and 6" at the back; 16" recommended on the control side for service
- Shipping weight
- 595 lb
Measure every door and turn on the delivery path against Blodgett's entry clearance before ordering.
Boilerless steam injection
Water is injected onto the heating elements and the fan spreads the steam, so there is no boiler to delime or maintain while you still get steam, hot air and combination cooking.
Programmable controls
The standard manual control stores 100 recipes and loads them by USB; the optional One Touch 7" touchscreen stores 500 recipes with rack timing, multi-shelf recipes and HACCP data storage.
Even results
A 4-speed reversing fan moves heat evenly across all shelves, and the removable 4" core probe runs cook and hold by internal temperature.
Built for institutions
A fully welded stainless steel frame keeps the door seals true, and the dual-pane door has a hinged inner glass and a dual-stage latch that vents steam before the door opens fully.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Ships by freight carrier in a 44.5" H x 42" W x 54.5" D crate; plan how it will be unloaded and moved inside.
- Choose natural gas or LP and the control voltage when ordering; legs, casters and controls are ordered options too.
- Blodgett includes a start-up inspection by a factory authorized service agent. A licensed electrician and gas fitter and a plumber should make the utility connections.
- Inspect the shipment for damage before signing for it.
Questions buyers ask
What gas and power does it need?
It draws 65,000 BTU/H in total through a 3/4" NPT connection, on natural gas (7.0" W.C.) or propane (14" W.C.). Controls run on 115V 12 A from a dedicated NEMA 5-20R receptacle (cord and plug supplied on 115V units) or on 208-240V 6 A.
Will it fit through my door?
Blodgett lists a minimum entry clearance of 36.16" uncrated and 42" crated for each section. Measure every door and turn on the delivery path before ordering.
Does it need water and a drain?
Yes. Connect a 3/4" garden-hose cold water line at 40-50 PSI and a 2" drain; drain piping must handle water above 160°F. Water quality is the owner's responsibility, and Blodgett offers water treatment systems.
Does it need a hood?
Blodgett's manual calls for a properly designed, mechanically driven exhaust hood that covers the oven with at least 6" of overhang on open sides. Check your local codes.
What does the ADDL include?
One BX-14G oven section with 4" casters and stacking hardware, made to stack on a BX-14G you already own. It does not include a second oven or a floor stand.
What is the difference between the BX-14 and the BCX-14?
The BX-14 is boilerless: it makes steam by injecting water onto the heating elements, so there is no boiler to delime. The BCX-14 adds a steam generator for continuous full steam loads.
What does the warranty cover?
Blodgett includes a 1-year parts and labor warranty and a start-up inspection by a factory authorized service agent. An extended warranty is available as an option.
Specs
| Manufacturer | Blodgett |
|---|---|
| Model Number | BX-14G ADDL |
| Quantity | 1 Each |
| Shipping Weight | 595 lb. |
| Width | 40.19 Inches |
| Depth | 37.6 Inches |
| Height | 36.16 Inches |
| Door Swing | 35.2" in Front of the Oven |
| Minimum Entry Clearance | 36.16" Uncrated42" Crated (per Section) |
| Crate Size | 44.5" H x 42" W x 54.5" D per Oven Section |
| Power Type | Gas |
| Voltage | 115 Volts |
| Hertz | 60 |
| Phase | 1 |
| Amps | 12 Amps |
| Optional Supply | 208-240V, 1-Ph, 6 A |
| Receptacle | NEMA 5-20R Dedicated (115V Standard)NEMA 6-15 Dedicated (208-240V Option) |
| Power Cord | 115V Units Ship With Cord and Plug |
| Gas Type | Natural Gas or Liquid Propane |
| Total BTU | 65,000 BTU/H |
| BTU Detail | Hot Air 65,000 BTU/H |
| Gas Connection | 3/4" NPT |
| Inlet Pressure | Natural Gas 7.0" W.C.Propane 14" W.C. |
| Capacity | 14 Hotel Pans or 7 Sheet Pans |
| Pan Capacity | Fourteen 12" x 20" x 2-1/2" Hotel Pans or Seven 18" x 26" Sheet Pans at 3-1/4" Spacing |
| Shelves | 7 Stainless Steel Wire Shelves |
| Temperature Range | 140 - 500 Degrees F |
| Cooking Modes | Steam 212°F, hot air and combination 140-500°F, Vario-steam 140-212°F, low-temperature cook and hold, retherm, cool down |
| Controls | Programmable Manual Control, Stores 100 Recipes, USBOptional One Touch 7" Touchscreen, 500 Recipes |
| Fan | 4-Speed Reversing Fan |
| Core Probe | Removable 4" Core Temperature Probe, Cook and Hold |
| Interior | Stainless Steel Cooking Chamber, Bright-Annealed Finish |
| Exterior | Stainless Steel Top, Front, Sides and BackFully Welded Stainless Steel Frame |
| Door | Dual-Pane Tempered Window With Hinged Inner Glass, Dual-Stage Latch, Door-Mounted Condensate Trough |
| Lighting | Halogen Cavity Lights |
| Cleaning | Hinged Pressure Panel, Pressure Spray BottleRetractable Hose Reel Is on the Bottom Section Only |
| Water Supply | 3/4" Garden Hose Cold Water, 40 - 50 PSI |
| Drain | 2" Connection, Max. Drain Temperature 140°F |
| Water Quality | TDS 40-125 ppmHardness 35-180 ppmpH 7.0-8.5Chlorides <25 ppmChlorine and Chloramine <0.2 ppmSilica <13 ppm |
| Installation Clearance | 2" Right Side2" Left Side6" Back |
| Service Space | 16" Recommended on the Control Side |
| Ventilation | Mechanically Driven Exhaust Hood Required (Blodgett Manual) |
| Mounting | Stacks on an Existing BX-14G |
| Includes | One BX-14G Section With 4" Casters and Stacking Hardware, for Stacking on an Existing BX-14G |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 1 Year Parts & Labor |
| Usage | Commercial Use Only |
