Description
Two half-size electric convection ovens stacked in one 30" footprint, each with a left-hinged door.

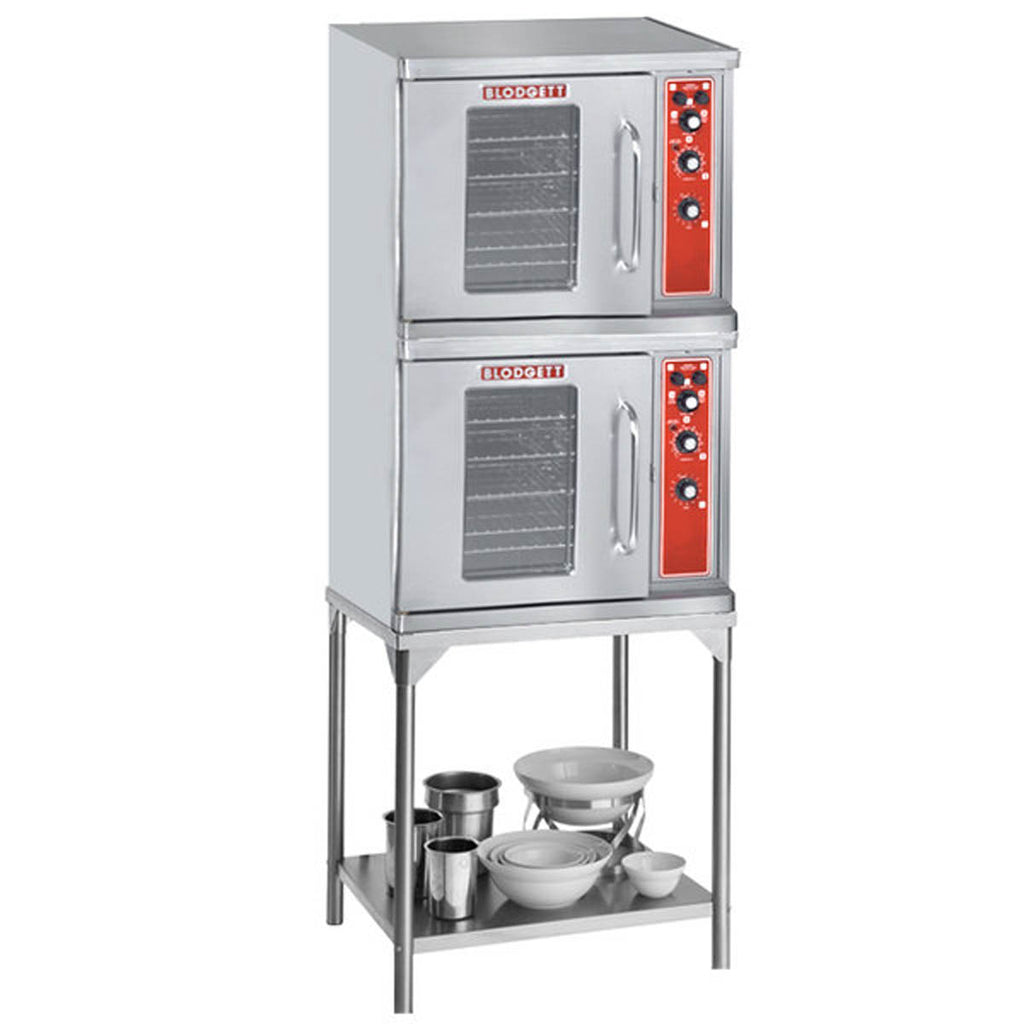

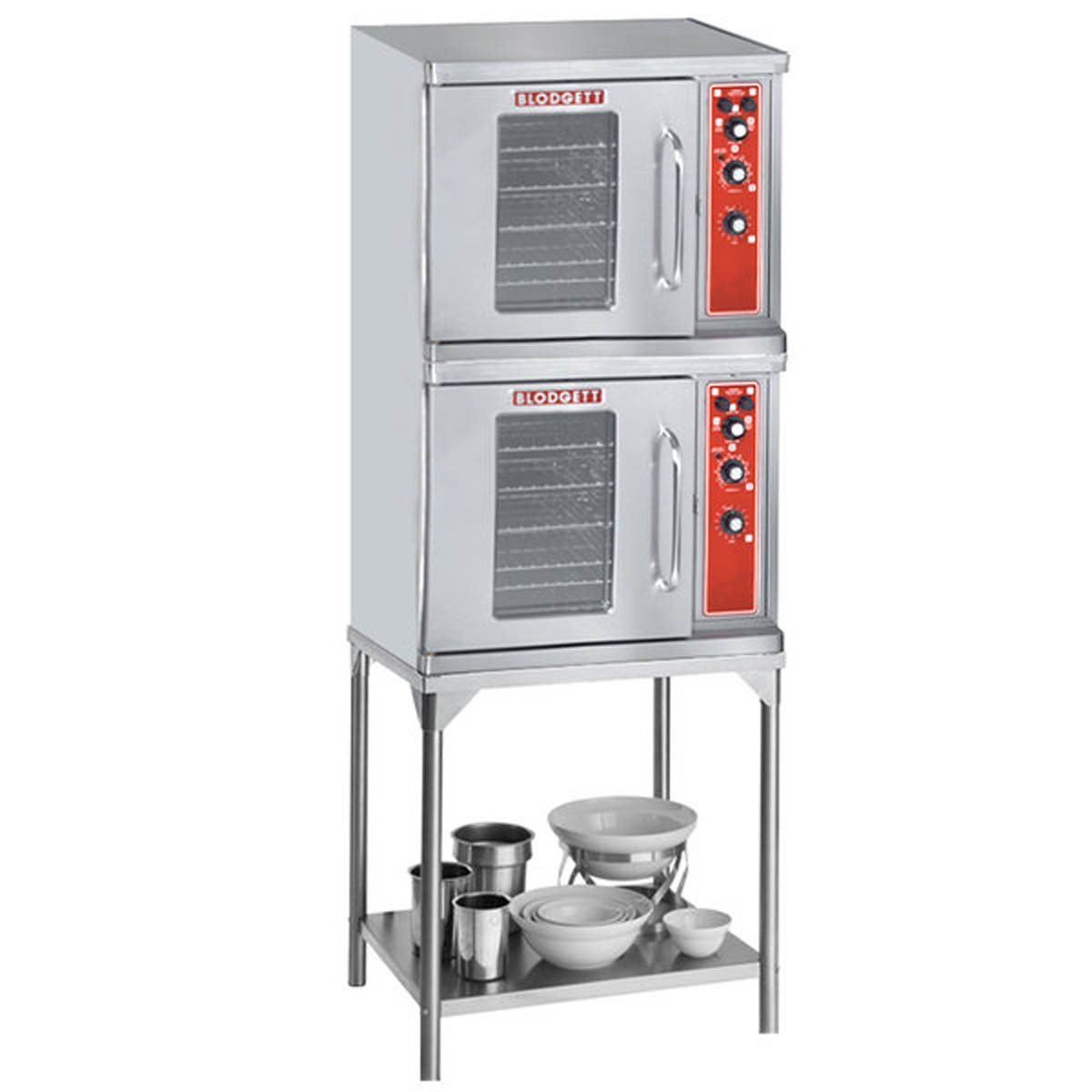

The Blodgett CTB DBL is two half-size electric convection ovens stacked on 6" stainless steel legs, with a vent connector and stacking brackets. The CTB has its door hinged on the left with the controls on the right. Each section takes five 13" x 18" half sheet pans, bakes at 200-500°F, draws 5.6 kW (8 kW optional), is ENERGY STAR qualified and needs 0" clearance at the back and hinge side. Choose 208V or 220/240V, single- or three-phase, and the controls when you order.
Will it fit · Will it plug in
- Outside size
- 30-1/4" W × 25-1/8" D; 69-1/8" H stacked on Blodgett's optional 19" stand (drawing)
- Inside
- 15-1/4" W × 20" H × 21" D per section
- Doorway
- Minimum entry clearance 25-1/16" uncrated, 30-1/4" crated
- Power
- Per section: 5.6 kW: 208V 1-ph 27 A, 208V 3-ph 24 A, 220/240V 1-ph 24 A, 220/240V 3-ph 21 A; 8 kW option: 35 / 22 / 32 / 20 A
- Clearance
- 0" Back and Left Side from combustible and non-combustible construction
- Shipping weight
- 595 lb; two crates, each 36" L x 32" W x 35" H
Measure every door and turn on the delivery path against Blodgett's entry clearance before ordering.
Door on the side you need
The CTB has its door hinged on the left with controls on the right, so it opens away from a wall or the next appliance.
Two power levels
Standard 5.6 kW elements, or the optional 8 kW elements for heavier loads; a 1/4 hp two-speed fan circulates the heat.
Zero clearance
Blodgett lists 0" clearance from combustible and non-combustible construction at the back and the left (hinge) side, so it can sit tight against a wall.
Simple manual controls
The standard SSM control has separate thermostat (200-500°F) and 60-minute timer dials; SSD digital and SimpleTouch controls are options.
Built to last
A full angle-iron frame, stainless front, top, sides and back, and a double-sided porcelainized 14-gauge liner resist rust.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Ships by freight carrier in two crates, each 36" L x 32" W x 35" H, about 595 lb in total; plan how it will be unloaded and moved inside.
- Choose voltage, phase, controls and legs, stand or casters when ordering; the oven is built to that configuration.
- A licensed electrician should connect each section to a circuit sized for your supply.
- Inspect the shipment for damage before signing for it.
Questions buyers ask
What electrical service does it need?
Amps are per section; each of the two sections is connected separately. With the standard 5.6 kW elements: 208V single-phase 27 A, 208V three-phase 24 A, 220/240V single-phase 24 A, 220/240V three-phase 21 A. With the optional 8 kW elements: 35, 22, 32 and 20 A. A licensed electrician should make the connection.
Will it fit through my door?
Blodgett lists a minimum entry clearance of 25-1/16" uncrated and 30-1/4" in the crate for each section; the double ships as two crates. Measure every door and turn on the delivery path before ordering.
How much does it hold?
Each section takes five 13" x 18" half-size sheet pans front to back, or five 12" x 20" x 2-1/2" steam table pans, with 5 chrome-plated racks and 9 rack positions.
What comes with the double?
Two ovens with 6" stainless steel legs, a vent connector and stacking brackets. Each oven has its own controls, so you can run the two at different temperatures.
Which side does the door open on?
The CTB door is hinged on the left with the controls on the right. For a door hinged on the right, see the CTBR.
What does the warranty cover?
Blodgett gives a 3-year oven parts and 2-year labor warranty and a 5-year limited warranty on the oven door.
Specs
| Manufacturer | Blodgett |
|---|---|
| Model Number | CTB DBL |
| Quantity | 1 Each |
| Shipping Weight | 595 lb. |
| Configuration | DoubleIncludes 2 Ovens, 6" Stainless Steel Legs, Vent Connector, Stacking Brackets |
| Width | 30.25 Inches |
| Depth | 25.125 Inches |
| Height on Optional 19" Stand | 69-1/8" |
| Minimum Entry Clearance | 25-1/16" Uncrated30-1/4" Crated |
| Crate Size | 36" L x 32" W x 35" H (2 Crates) |
| Voltage | 208 - 240 Volts |
| Hertz | 60 |
| Phase | 1 or 3 |
| Wattage | 11.2 kW Total (5.6 kW per Section)Optional 8 kW per Section |
| Amps | 20 - 35 Amps |
| Amps by Supply | Per Section: 5.6 kW: 208V 1-Ph 27 A, 208V 3-Ph 24 A, 220/240V 1-Ph 24 A, 220/240V 3-Ph 21 A8 kW: 208V 1-Ph 35 A, 208V 3-Ph 22 A, 220/240V 1-Ph 32 A, 220/240V 3-Ph 20 A |
| Capacity | 10 Half-Size Sheet Pans (5 per Section) |
| Pan Capacity per Section | Five 13" x 18" Half-Size Sheet Pans (Front to Back)Five 12" x 20" x 2-1/2" Steam Table Pans |
| Interior Dimensions per Section | 15-1/4" W x 20" H x 21" D |
| Racks | 5 Chrome-Plated Racks per Section, 9 Rack Positions, 1-5/8" Minimum Spacing |
| Temperature Range | 200 - 500 Degrees F |
| Fan Motor | 1/4 HP, 2-Speed (1140 / 1725 RPM), Automatic Thermal Overload Protection |
| Controls | SSM Solid State Manual, Separate Thermostat and 60-Minute Timer Dials, Cook/Cool Down SelectorOptional SSD Digital With Cook & Hold and Pulse Plus or SimpleTouch Touchscreen |
| Door | Left-Hand Hinged, Controls on RightDual-Pane Thermal Glass Window, Chrome-Plated Handle |
| Interior | Double-Sided Porcelainized 14-Gauge Liner |
| Exterior | Stainless Steel Front, Top, Sides and BackFull Angle-Iron Frame |
| Insulation | Solid Mineral Fiber, Top, Back, Sides and Bottom |
| Clearance | 0" Back and Left Side From Combustible and Non-Combustible Construction |
| Certifications | cETLus, NSF, ENERGY STAR, CE |
| Warranty | 3 Years Oven Parts, 2 Years Labor5 Years Limited Oven Door |
| Usage | Commercial Use Only |
